Intake Air Temperature Sensor

Check resistance between mass air flow sensor terminals 1 and 2 under the following conditions.

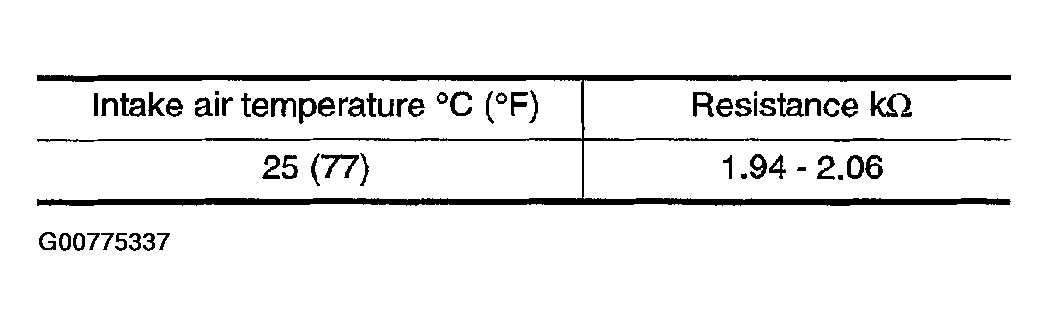

Fig 1: Intake Air Temperature Sensor And Resistance Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace mass air flow sensor (with intake air temperature sensor).

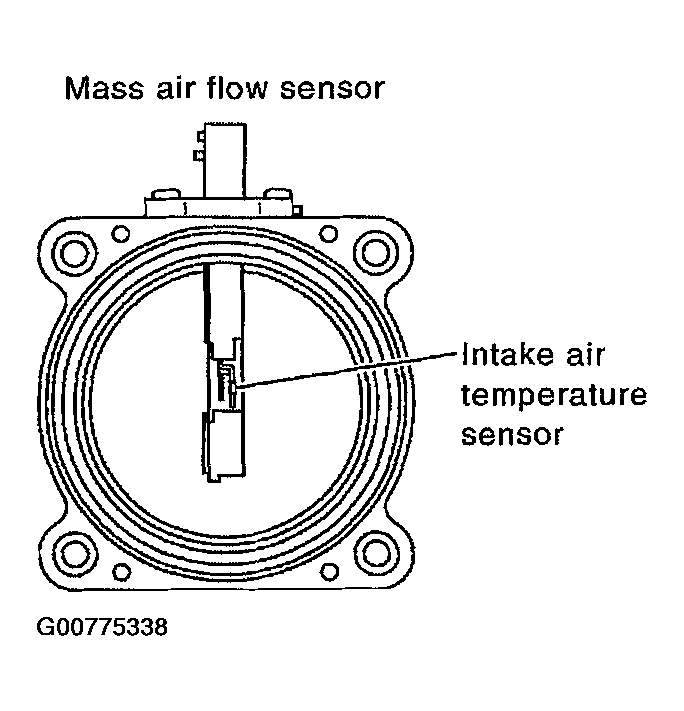

Fig 2: Identifying Intake Air Temperature Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.

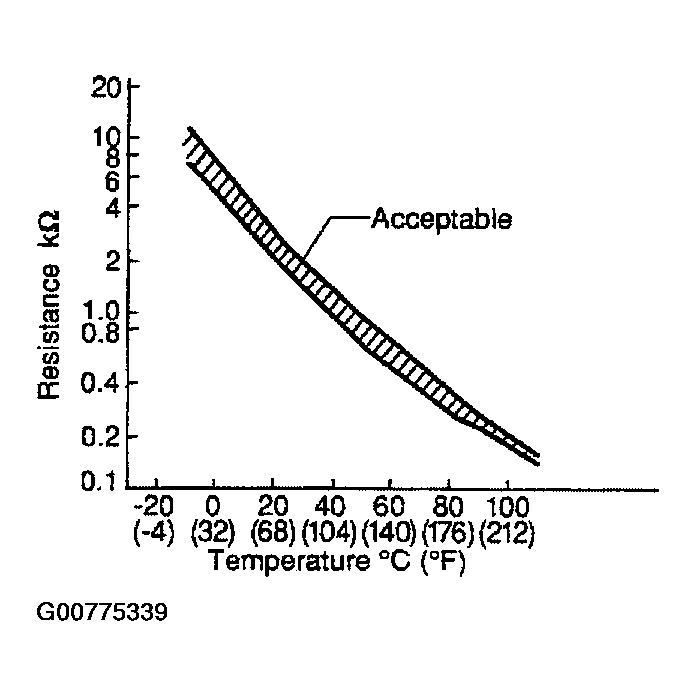

Fig 3: Acceptable Resistance And Temperature Graph
Courtesy of NISSAN MOTOR CO., U.S.A.
