Diagnostic Procedure
- CHECK GROUND CONNECTIONS
- Turn ignition switch OFF.

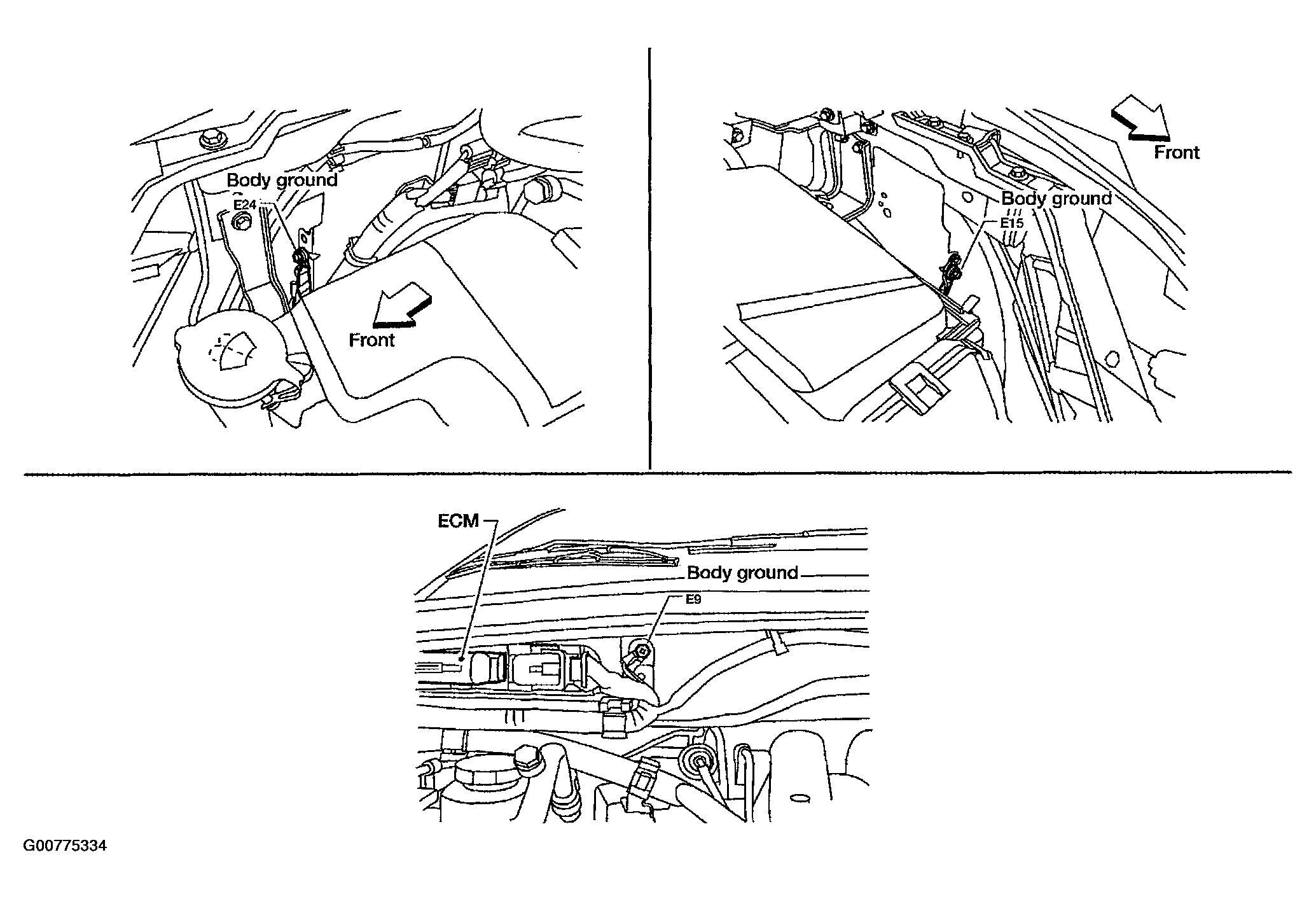

- Loosen and retighten ground three screws on the body. Refer to GROUND INSPECTION .
OK or NG
- OK:GO TO 2.
- NG:Repair or replace ground connections.
- CHECK INTAKE AIR TEMPERATURE SENSOR POWER SUPPLY CIRCUIT
- Turn ignition switch OFF.

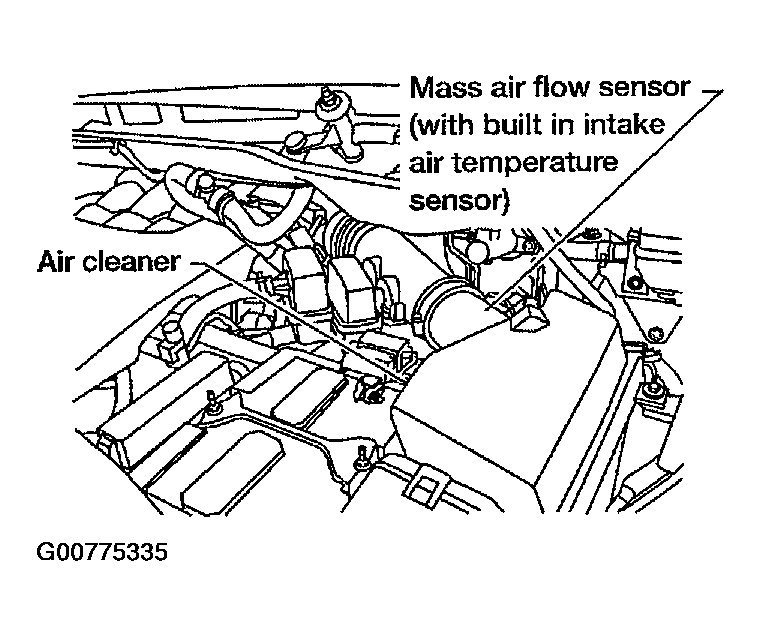

- Disconnect mass air flow sensor (intake air temperature sensor is built-into) harness connector.
- Turn ignition switch ON.

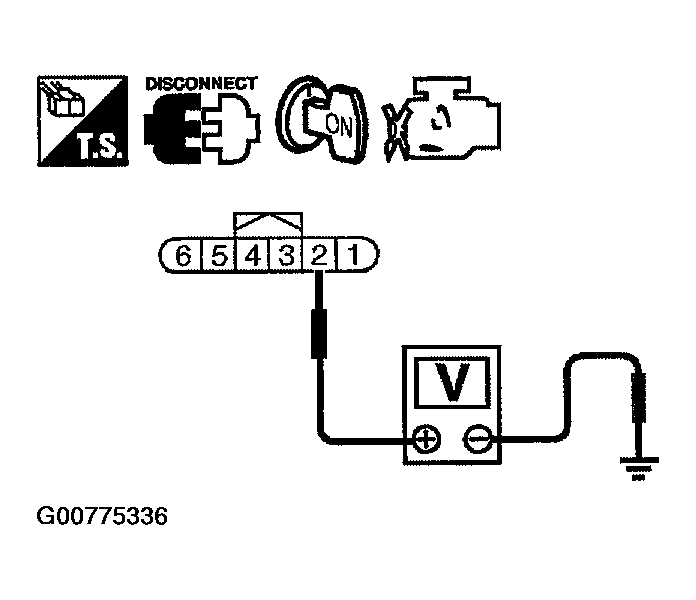

- Check voltage between mass air flow sensor terminal 2 and ground.
- Voltage: Approximately 5V
OK or NG
- OK: GO TO 3.
- NG: Repair harness or connectors.
- CHECK INTAKE AIR TEMPERATURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
- Turn ignition switch OFF.
- Disconnect ECM harness connector.
- Disconnect TCM harness connector.
- Check harness continuity between mass air flow sensor terminal 1 and ECM terminal 67, TCM terminal 42.
Refer to WIRING DIAGRAM .
- Continuity should exist.
- Also check harness for short to ground or short to power.
OK or NG
- OK: GO TO 5 .
- NG: GO TO 4.
- DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors E19, F33
- Harness for open or short between intake air temperature sensor and ECM
- Harness for open or short between intake air temperature sensor and TCM
- Repair open circuit or short to ground or short to power in harness or connectors.
- CHECK INTAKE AIR TEMPERATURE SENSOR
Refer to COMPONENT INSPECTION .
OK or NG
- OK: GO TO 6.
- NG: Replace mass air flow sensor (with intake air temperature sensor).
- CHECK INTERMITTENT INCIDENT
Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .
- INSPECTION END
