Diagnostic Procedure

1. Turn ignition switch OFF.

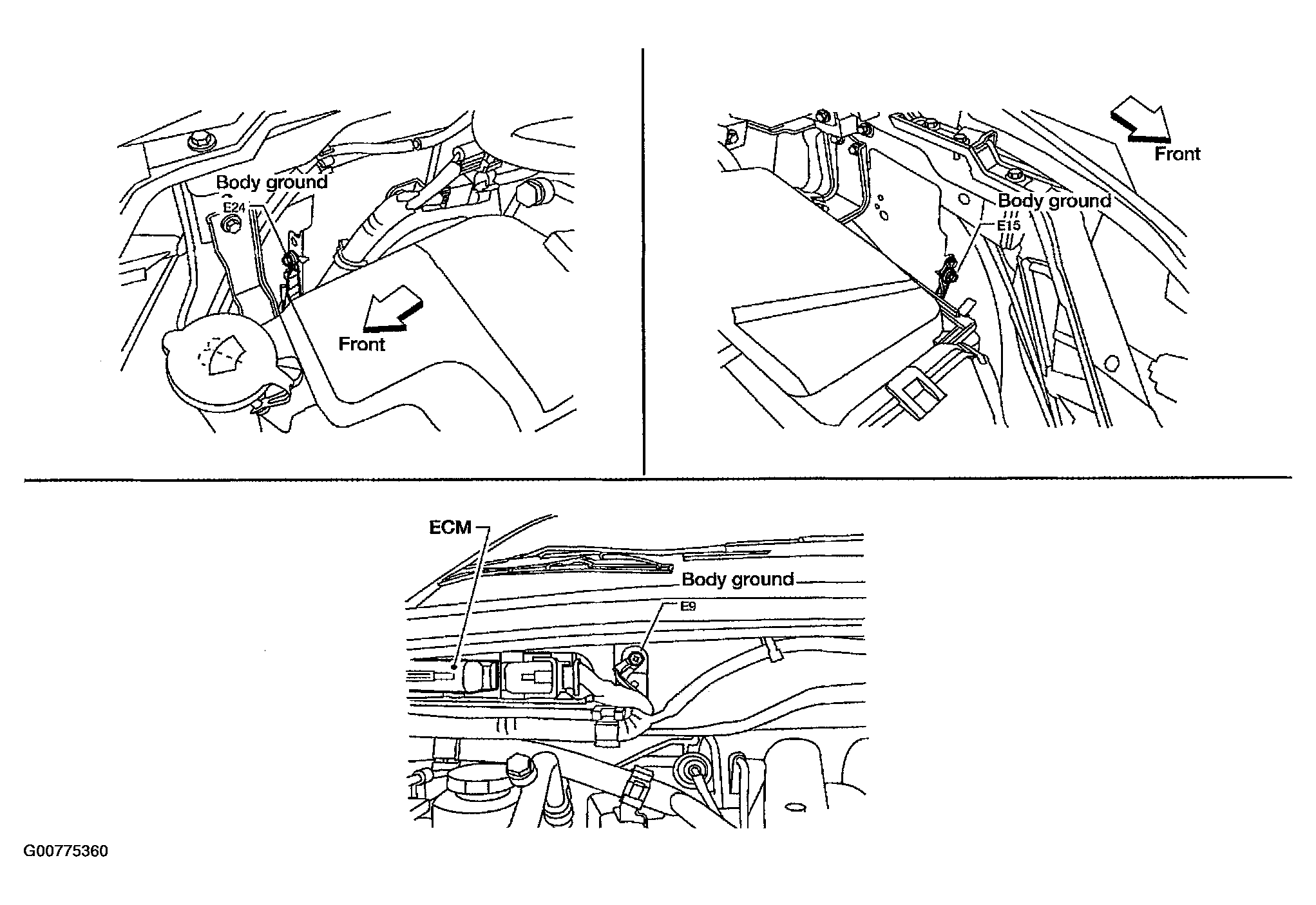

2. Loosen and retighten ground three screws on the body. Refer to GROUND INSPECTION  .
   Fig 1: Checking Ground Connections

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 2.
2. NG: Repair or replace ground connections.

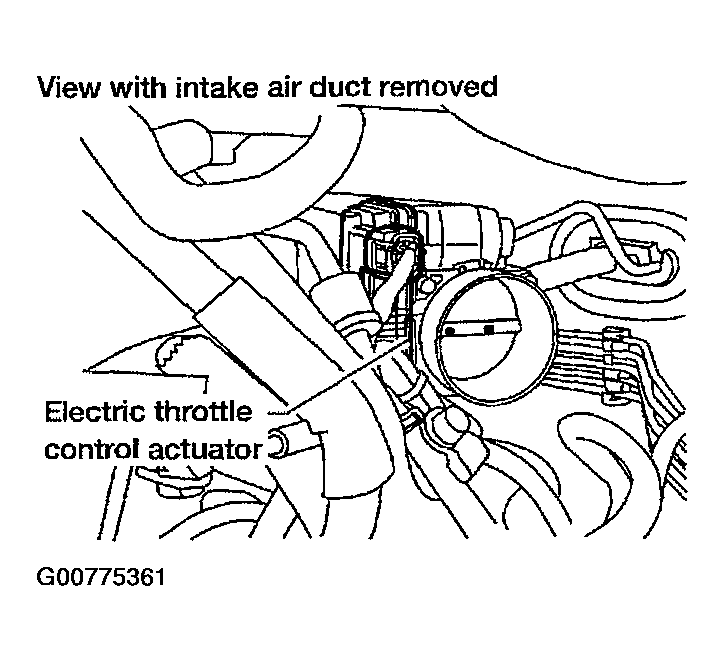

1. Disconnect electric throttle control actuator harness connector.
2. Turn ignition switch ON.
   Fig 2: Disconnecting Electric Throttle Control Actuator Harness Connector

   Courtesy of NISSAN MOTOR CO., U.S.A.

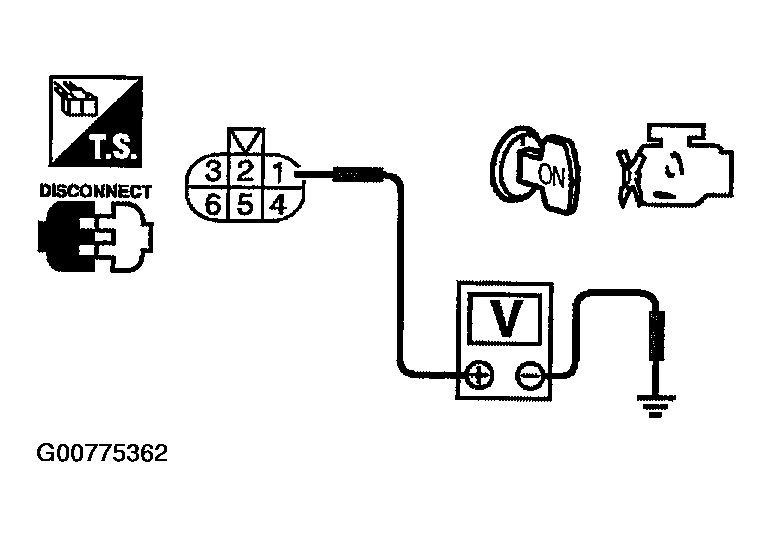

3. Check voltage between electric throttle control actuator terminal 1 and ground with CONSULT-II or tester.
   Fig 3: Checking Voltage Between Electric Throttle Control Actuator And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.
   1. Voltage: Approximately 5V

OK or NG

1. OK: GO TO 3.
2. NG: Repair open circuit or short to ground or short to power in harness or connectors.

1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 66 and electric throttle control actuator terminal 5. Refer to WIRING DIAGRAM  .
   1. Continuity should exist.
4. Also check harness for short to ground or short to power.

OK or NG

1. OK: GO TO 4.
2. NG: Repair open circuit or short to ground or short to power in harness or connectors.

1. Check harness continuity between ECM terminal 69 and electric throttle control actuator terminal 2. Refer to WIRING DIAGRAM  .
   1. Continuity should exist.
2. Also check harness for short to ground and short to power.

OK or NG

1. OK: GO TO 5.
2. NG: Repair open circuit or short to ground or short to power in harness or connectors.

Refer to COMPONENT INSPECTION  .

OK or NG

1. OK: GO TO  7 .
2. NG: GO TO 6.

1. Replace the electric throttle control actuator.
2. Perform THROTTLE VALVE CLOSED POSITION LEARNING  .
3. Perform IDLE AIR VOLUME LEARNING  .
   1. INSPECTION END

Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT  .

1. INSPECTION END
