DTC P0181: FTT Sensor.: Wiring Diagram

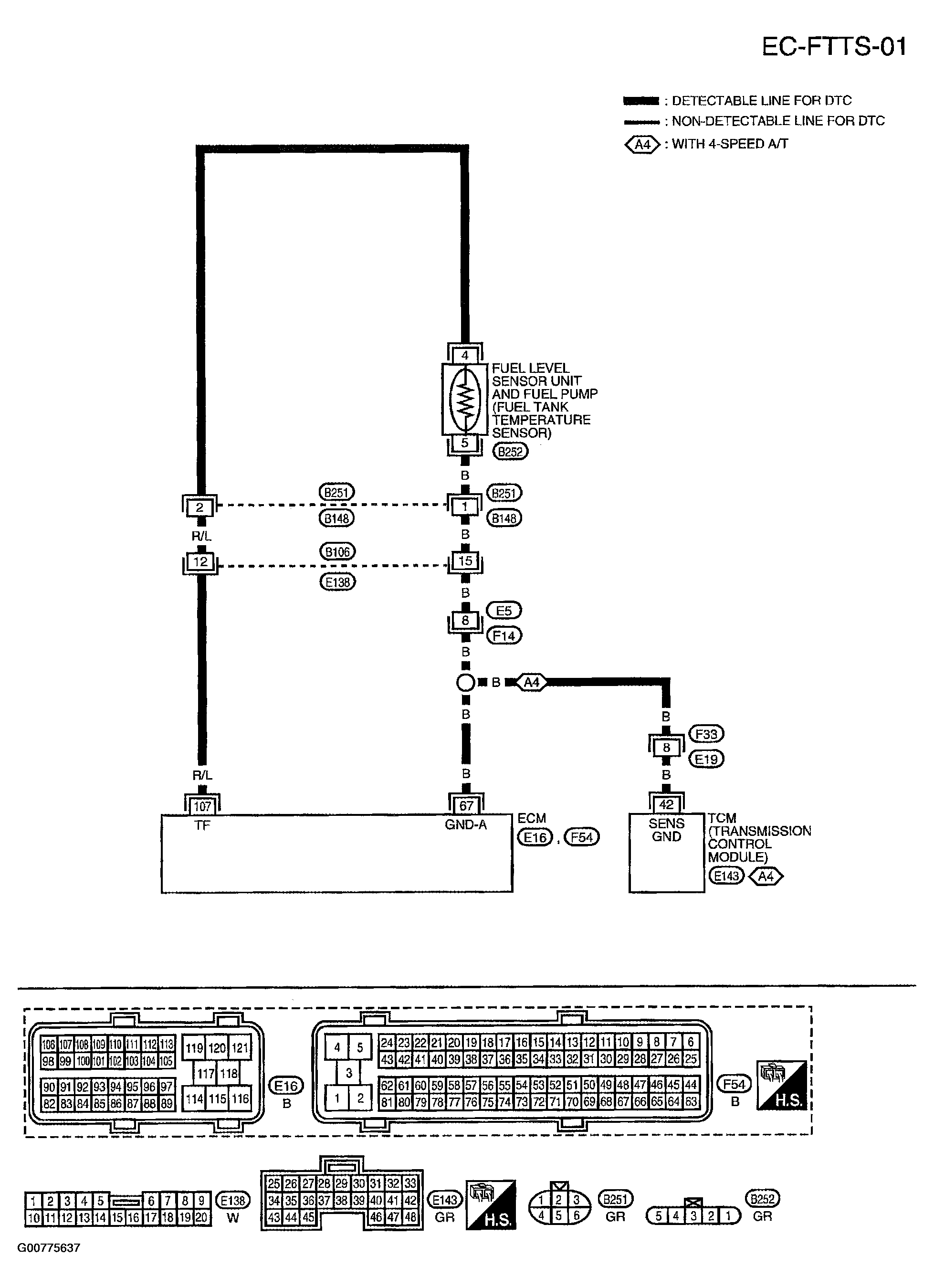

Fig 1: Displaying EC-FTTS-01 Wiring Diagram

G00775637

Courtesy of NISSAN MOTOR CO., U.S.A.
