EGR Temperature Sensor

  1. Turn ignition switch OFF.
  2. Disconnect EGR temperature sensor harness connector.
  3. Check resistance between EGR temperature sensor terminals 1 and 2 as shown in the figure.

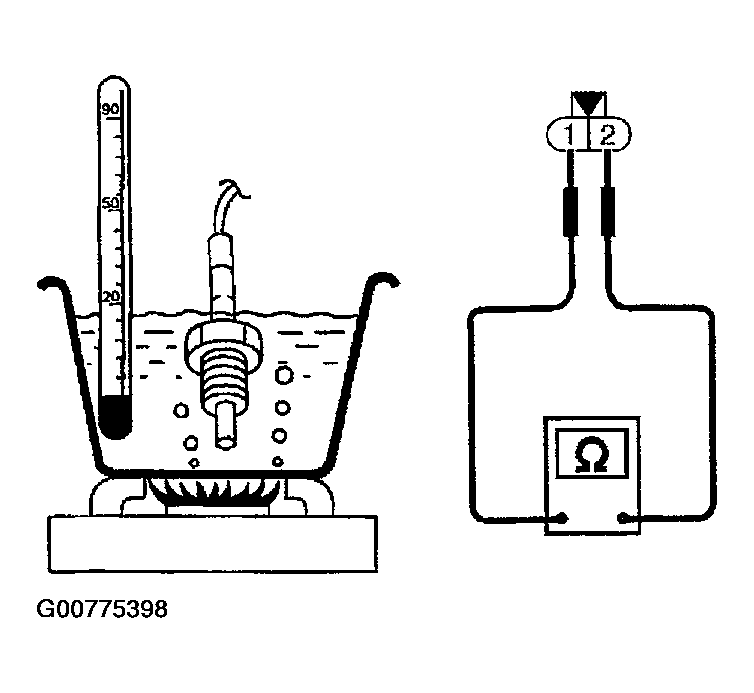

    Fig 1: Checking EGR Temperature Sensor
    G00775398Courtesy of NISSAN MOTOR CO., U.S.A.

    < Reference data >

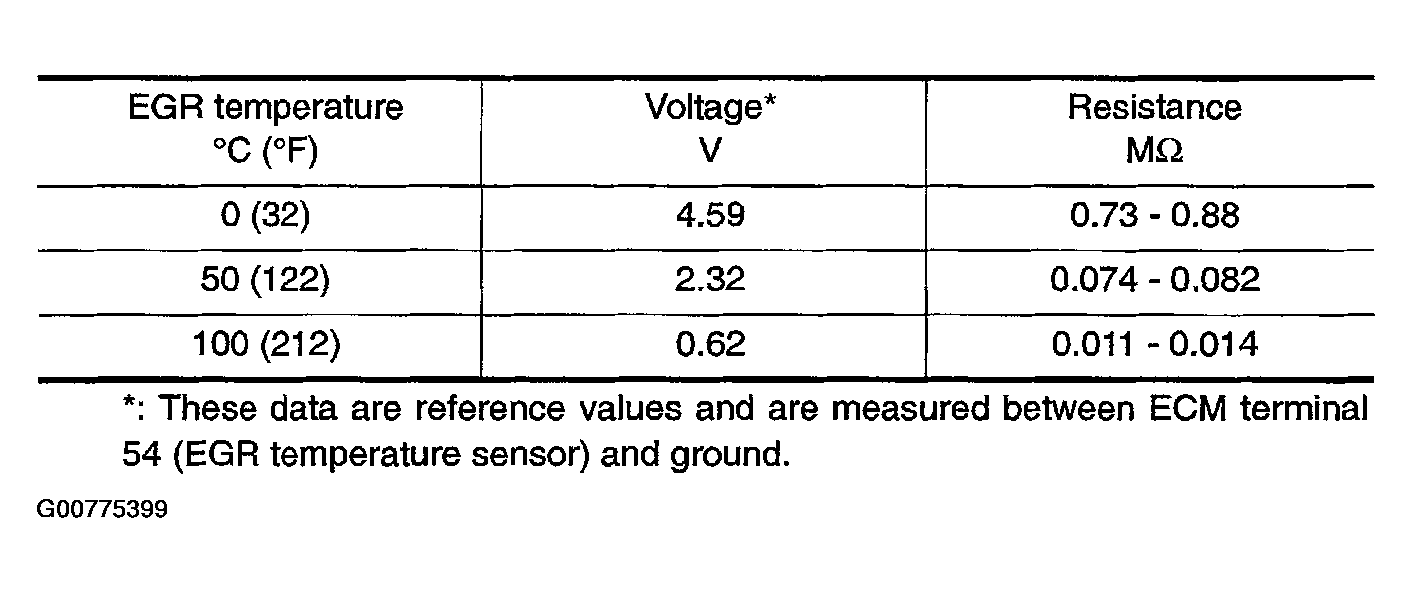

    Fig 2: Reference Data Chart
    G00775399Courtesy of NISSAN MOTOR CO., U.S.A.
  4. If NG, replace EGR temperature sensor.

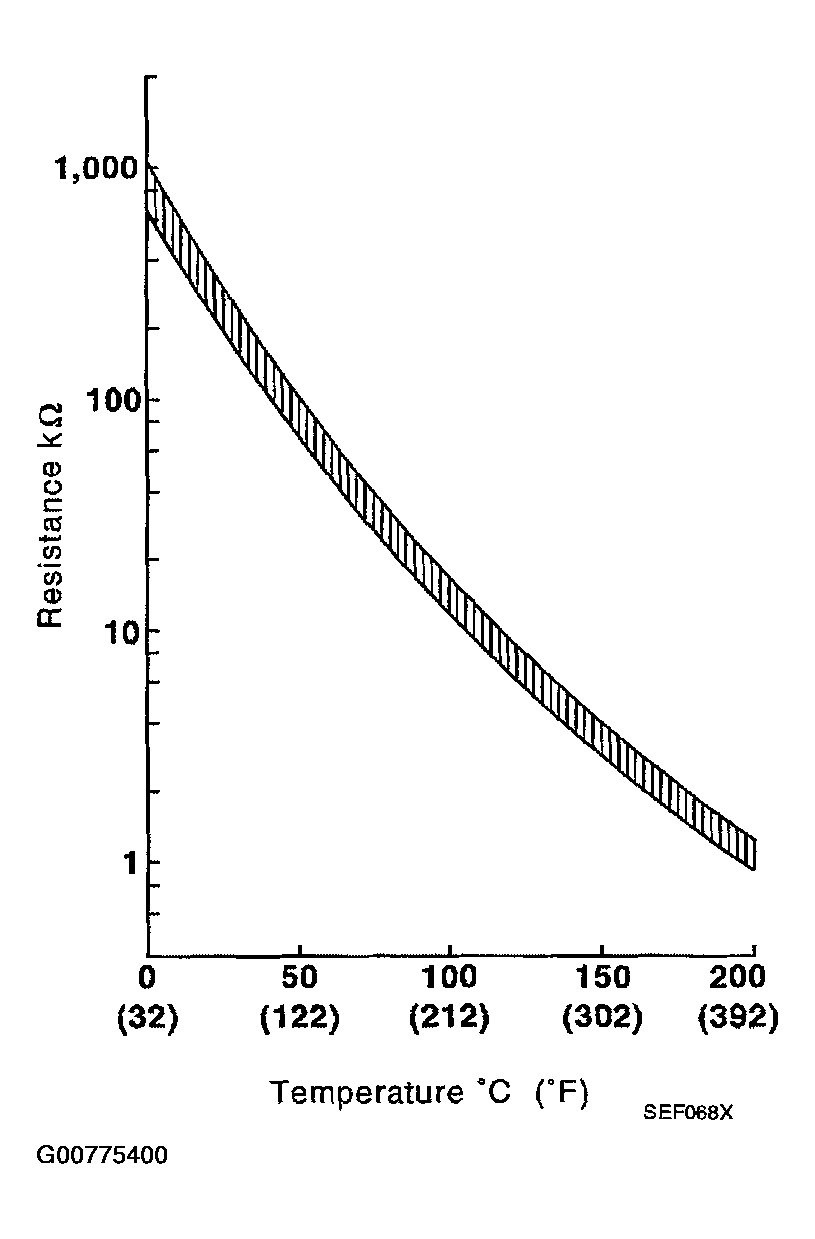

    Fig 3: Resistance And Temperature Graph
    G00775400Courtesy of NISSAN MOTOR CO., U.S.A.
