With CONSULT-II
- Turn ignition switch ON.

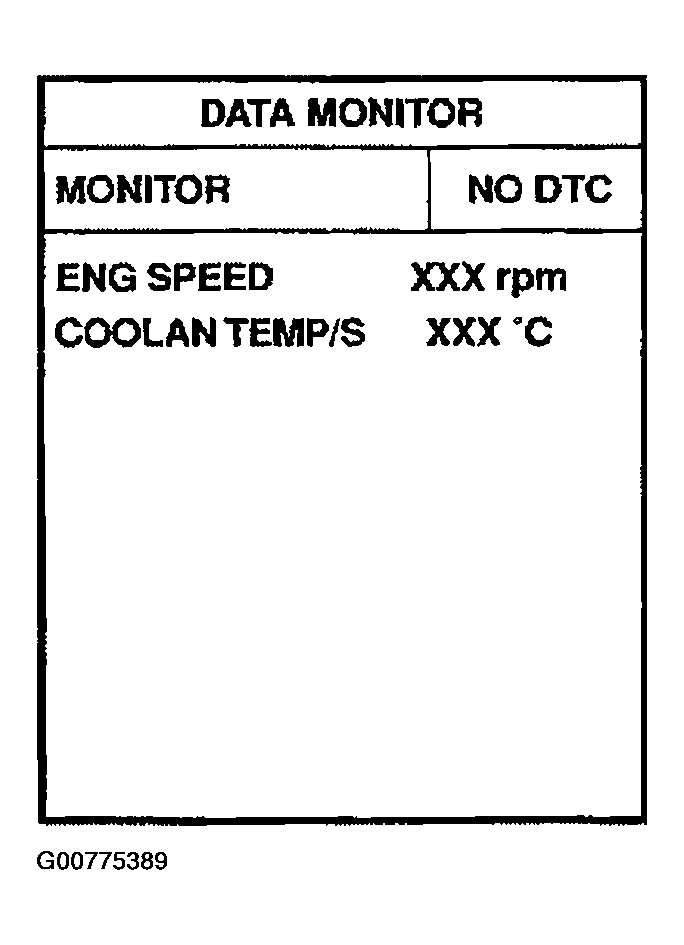

- Select "DATA MONITOR" mode with CONSULT-II.
- Verify that "COOLAN TEMP/S" indicates less than 50°C (122°F).
If the engine coolant temperature is above the range, cool the engine down.
- Start engine and let it idle for at least 8 seconds.
- If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE .
