On Board Diagnosis Logic

NOTE: If DTC P0461 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC U1000, U1001. Refer to DTC U1000, U1001 CAN COMMUNICATION LINE .

Driving long distances naturally affect fuel gauge level.

This diagnosis detects the fuel gauge malfunction of the gauge not moving even after a long distance has been driven.

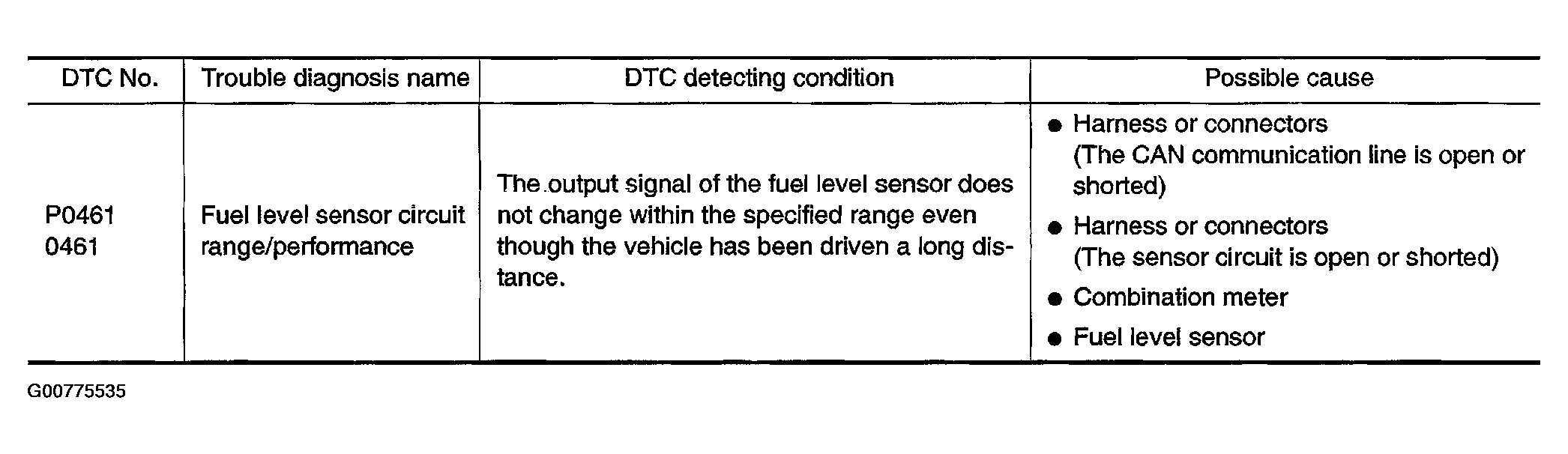

Fig 1: On Board Diagnosis Logic Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
