DTC Confirmation Procedure

NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

With CONSULT-II

Turn ignition switch ON and select "DATA MONITOR" mode with CONSULT-II.
Start engine and let it idle for 1 second.
Turn ignition switch OFF and wait at least 10 seconds.
Turn ignition switch ON and wait at least 1 second.
Repeat step 2 to 4 for 4 times.
If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE .

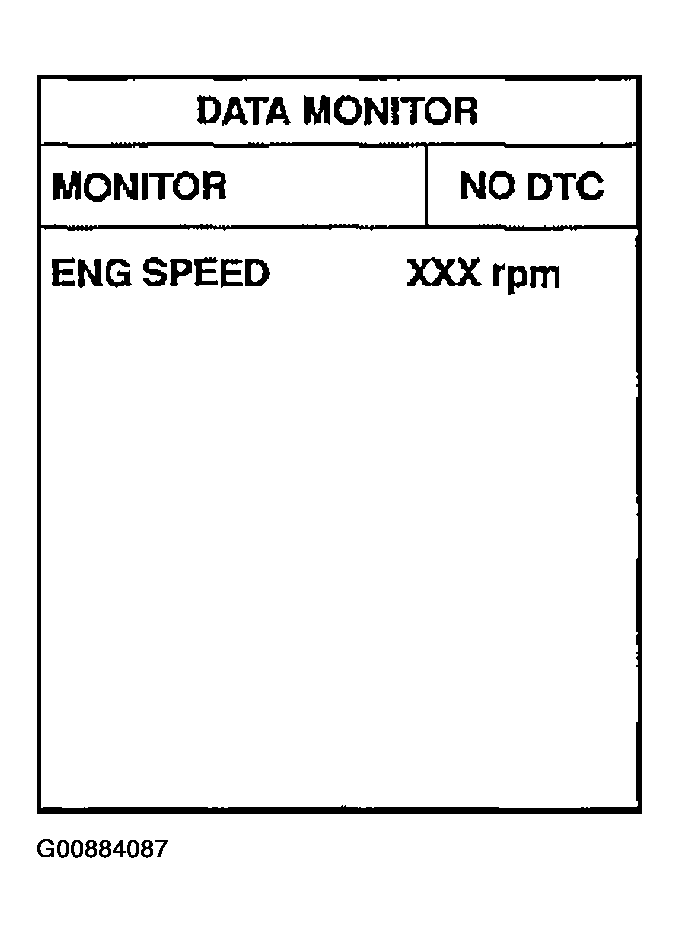

Fig 1: Displaying Data Monitor Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

WITH GST

Follow the procedure "WITH CONSULT-II" above.
