Procedure For DTC P1124

TESTING CONDITION:

Before performing the following procedure, confirm that battery voltage is more than 10V at idle.

With CONSULT-II

1. Turn ignition switch ON and wait at least 1 second.
2. Select "DATA MONITOR" mode with CONSULT-II.
3. If DTC is detected, go to DIAGNOSTIC PROCEDURE  .

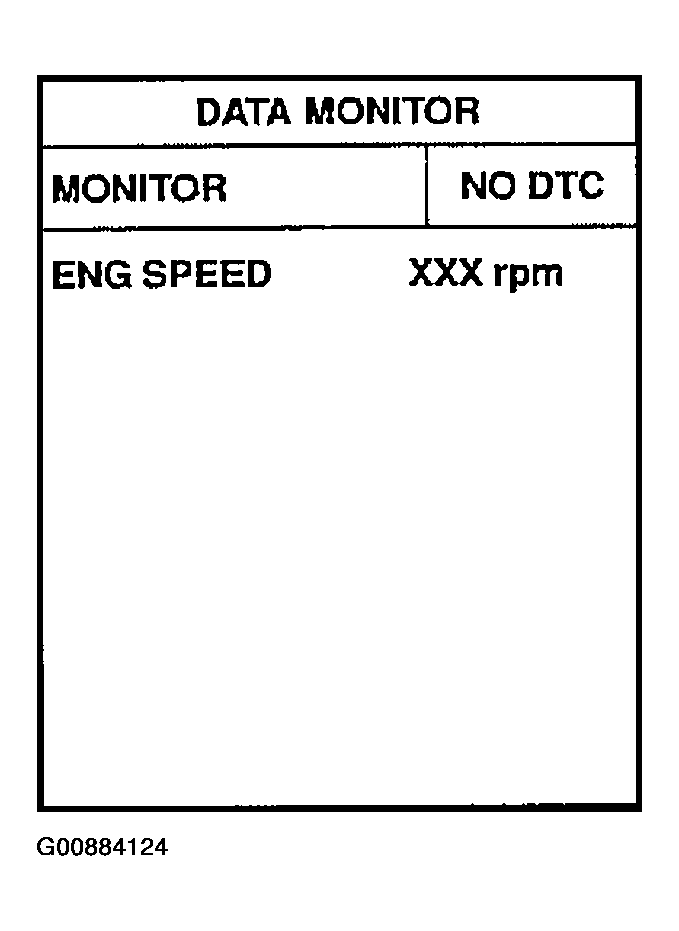

   Fig 1: Displaying Data Monitor Screen

   Courtesy of NISSAN MOTOR CO., U.S.A.
