Main 12 Causes of Overheating

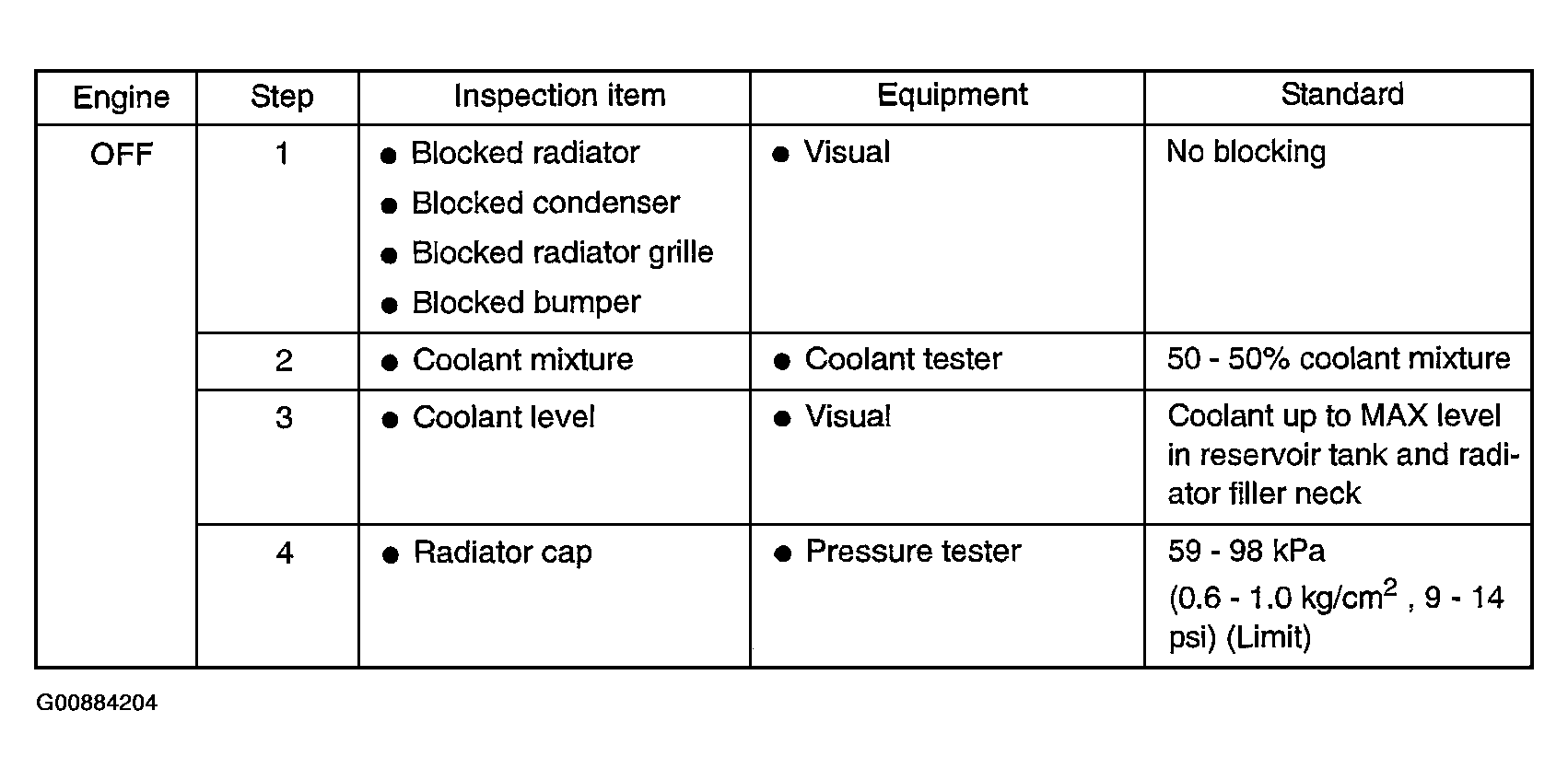

Fig 1: Displaying Causes Of Overheating (1 Of 2)
G00884204Courtesy of NISSAN MOTOR CO., U.S.A.

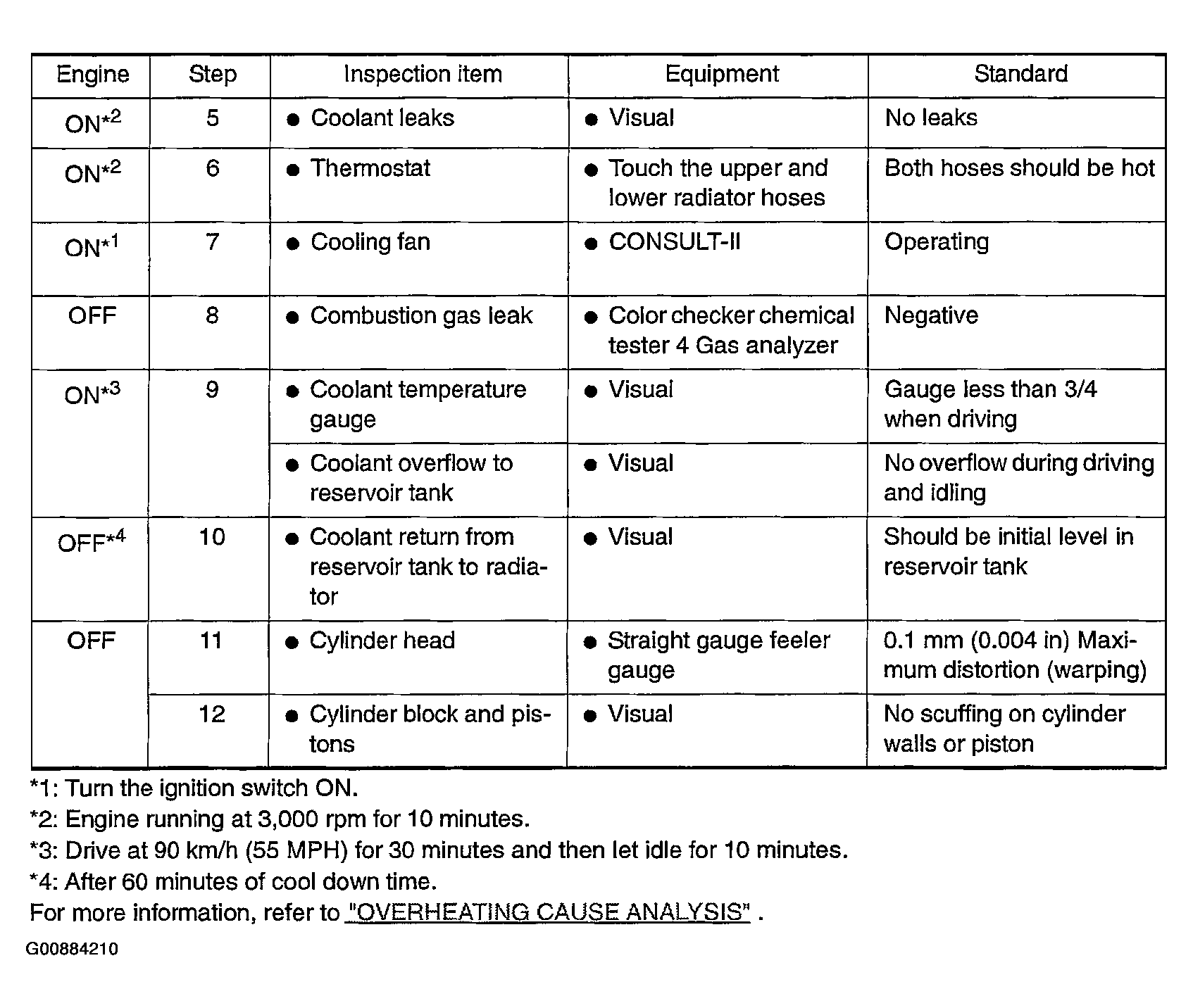

Fig 2: Displaying Causes Of Overheating (2 Of 2)
G00884210Courtesy of NISSAN MOTOR CO., U.S.A.
