With GST
- Start engine and warm it up to normal operating temperature.
- Turn ignition switch OFF and wait at least 10 seconds.

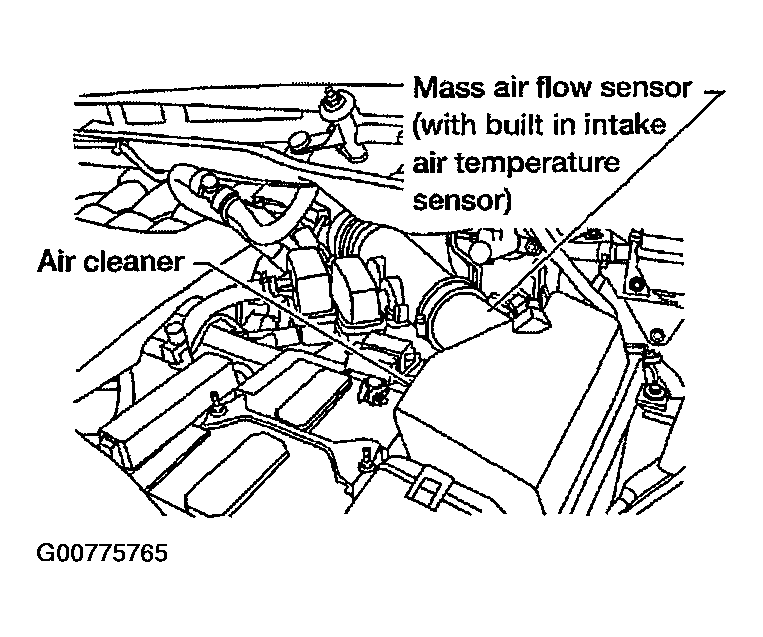

- Disconnect mass air flow sensor harness connector.
- Start engine and let it idle for at least 5 seconds.
- Stop engine and reconnect mass air flow sensor harness connector.
- Select MODE 3 with GST and make sure that DTC P0102 is detected.
- Select MODE 4 with GST and erase the DTC P0102.
- Start engine and keep the engine speed between 3,500 and 4,000 RPM for 1 minute under no load.
- Let engine idle for 1 minute.
- Keep engine speed between 2,500 and 3,000 RPM for 20 minutes.
- Select MODE 7 with GST.
If 1 st trip DTC is detected, go to DIAGNOSTIC PROCEDURE .
