On Board Diagnosis Logic

NOTE: If DTC P1706 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC U1000, U1001. Refer to DTC U1000, U1001 CAN COMMUNICATION LINE .

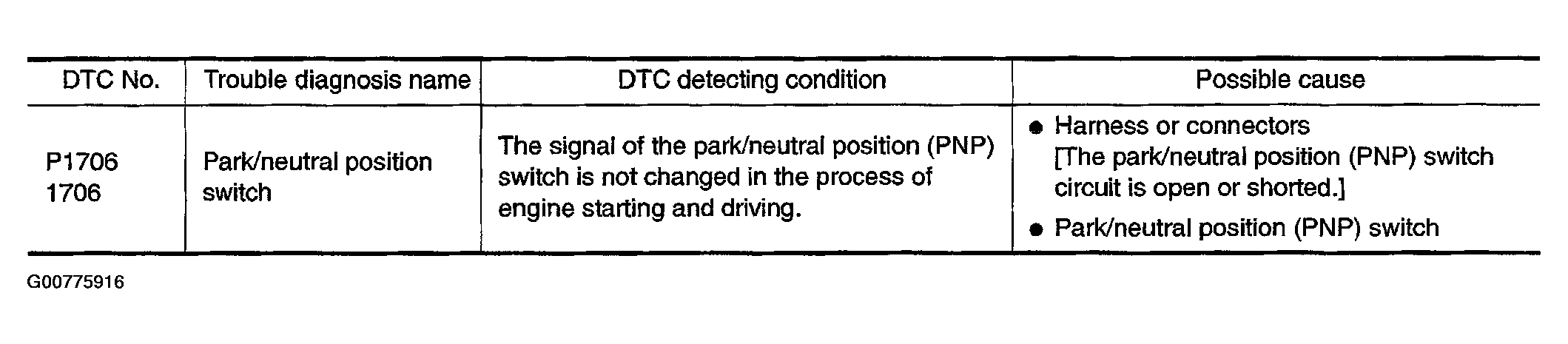

Fig 1: Identifying DTC Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
