ECM Inspection Table

Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.

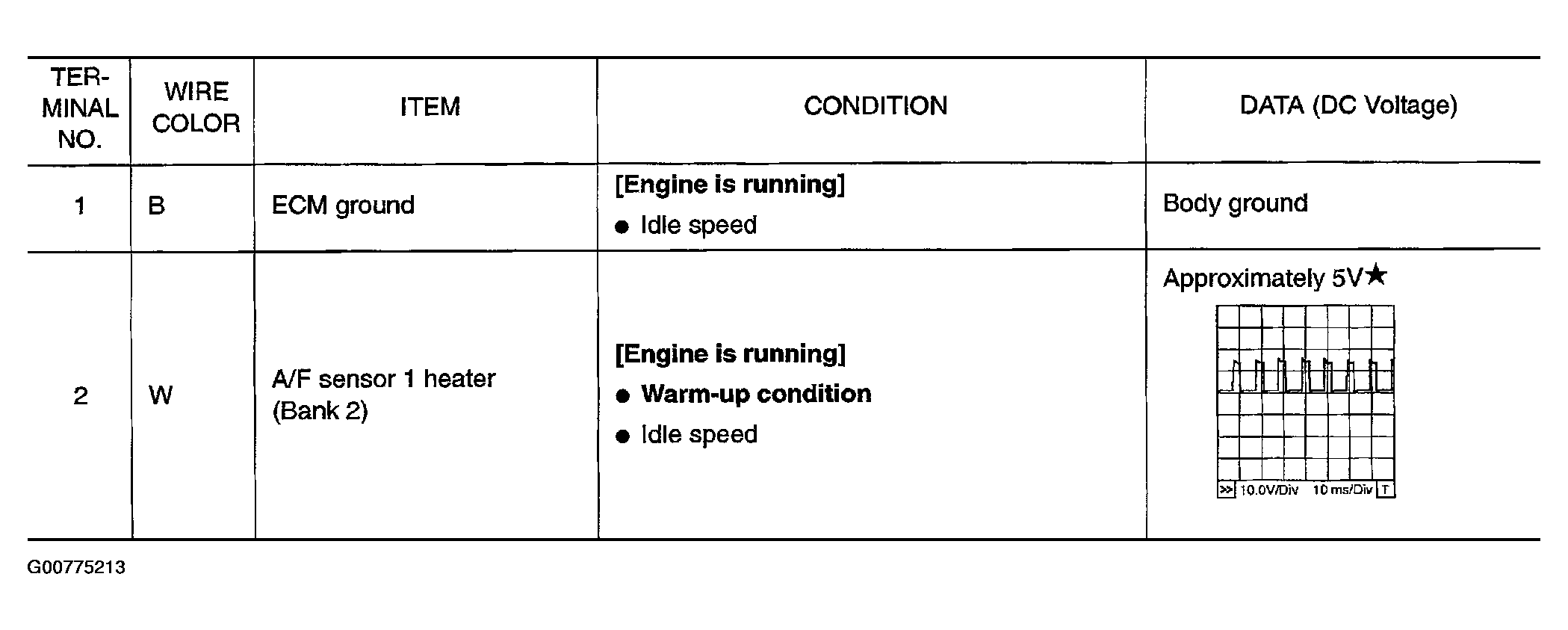

Fig 1: Identifying ECM Inspection Table (1 Of 10)

G00775213

Courtesy of NISSAN MOTOR CO., U.S.A.

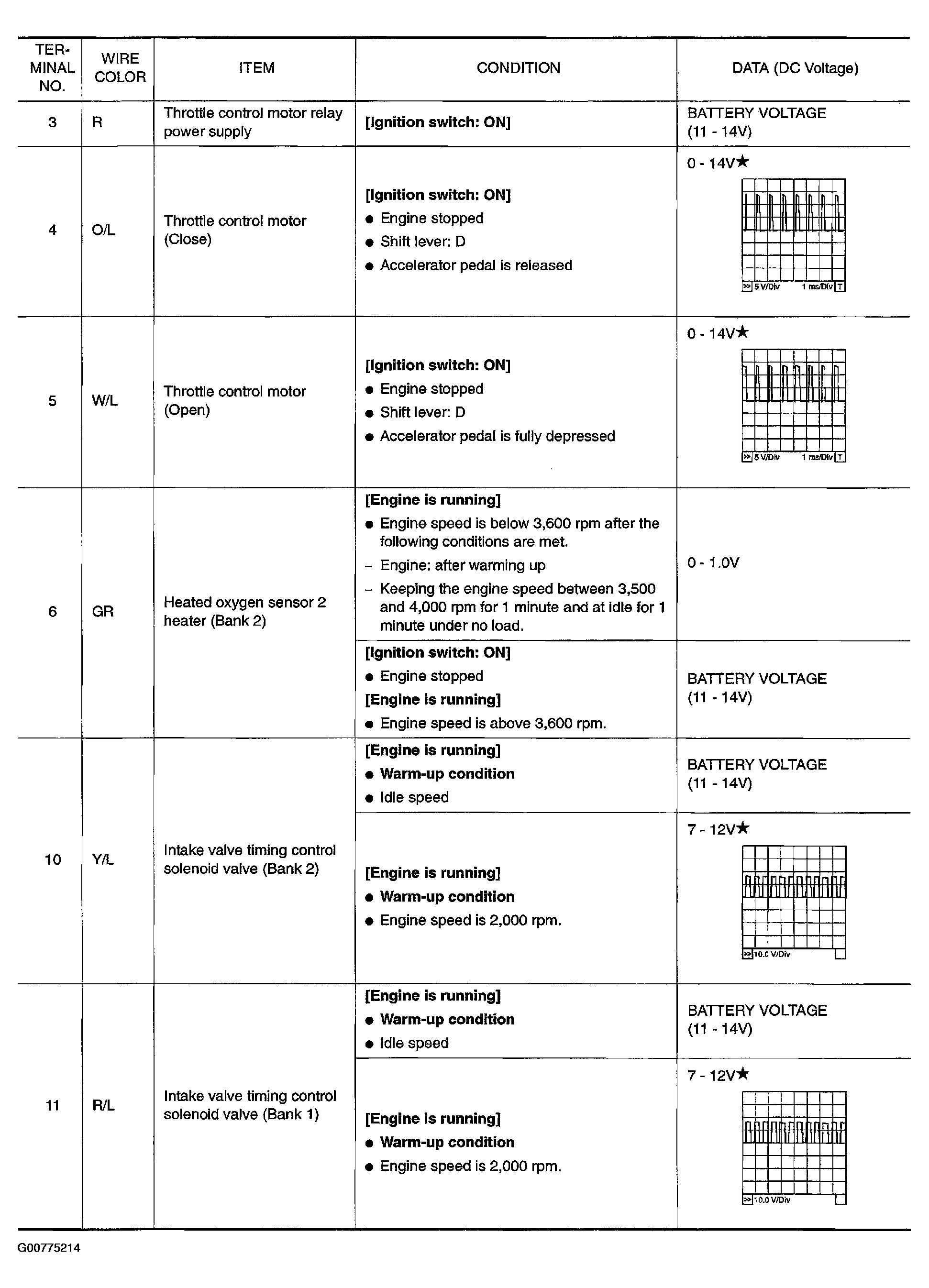

Fig 2: Identifying ECM Inspection Table (2 Of 10)

G00775214

Courtesy of NISSAN MOTOR CO., U.S.A.

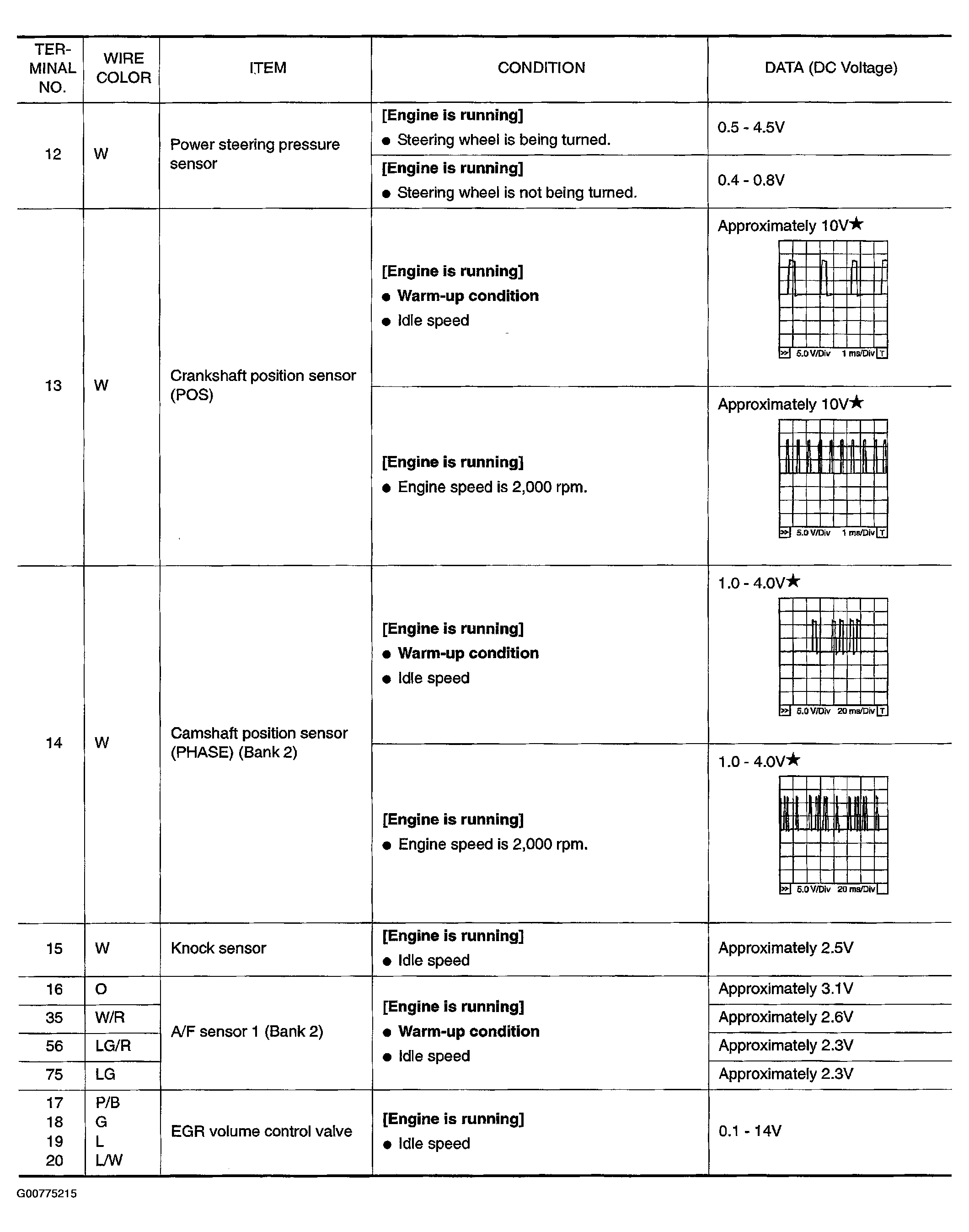

Fig 3: Identifying ECM Inspection Table (3 Of 10)

G00775215

Courtesy of NISSAN MOTOR CO., U.S.A.

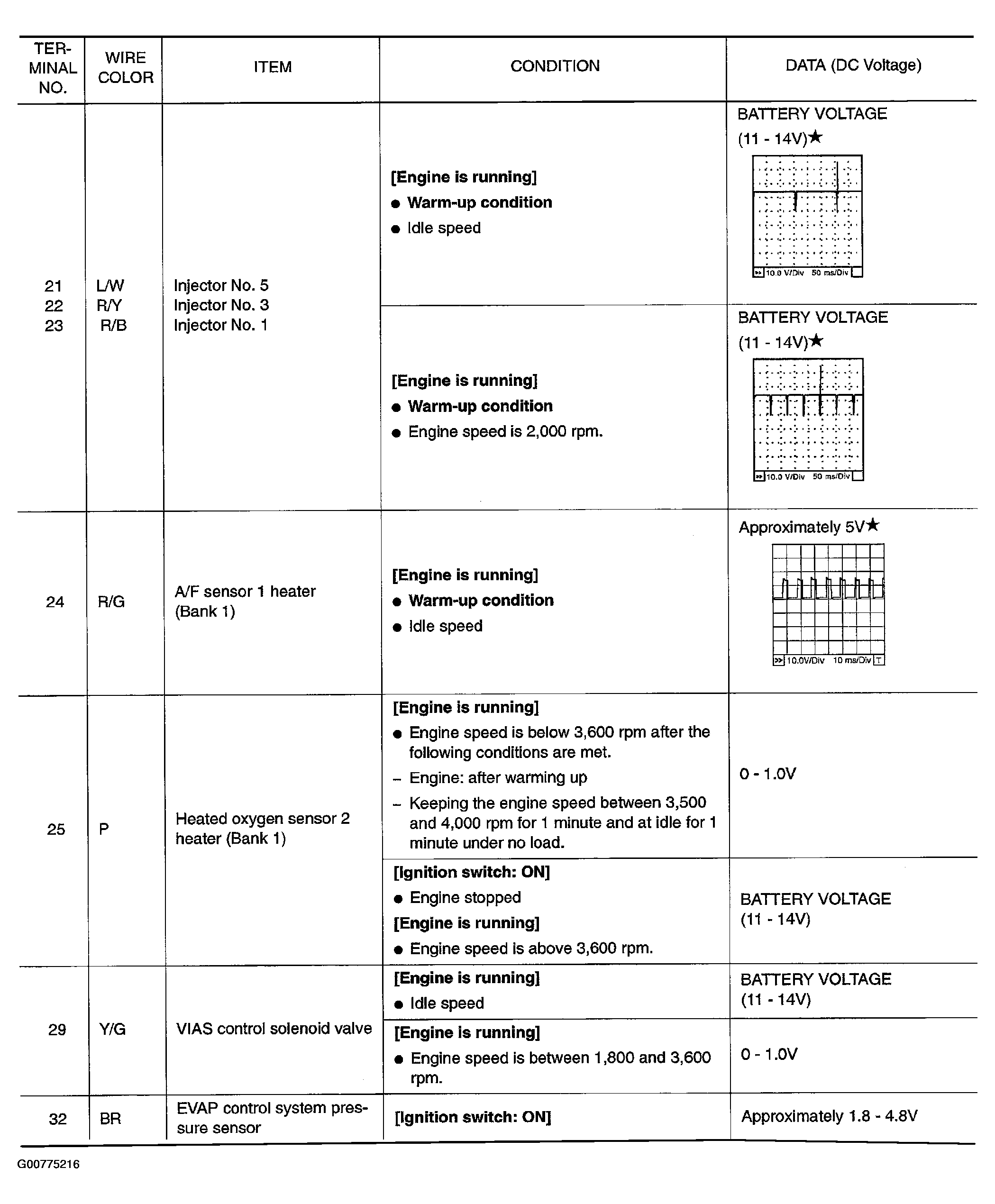

Fig 4: Identifying ECM Inspection Table (4 Of 10)

G00775216

Courtesy of NISSAN MOTOR CO., U.S.A.

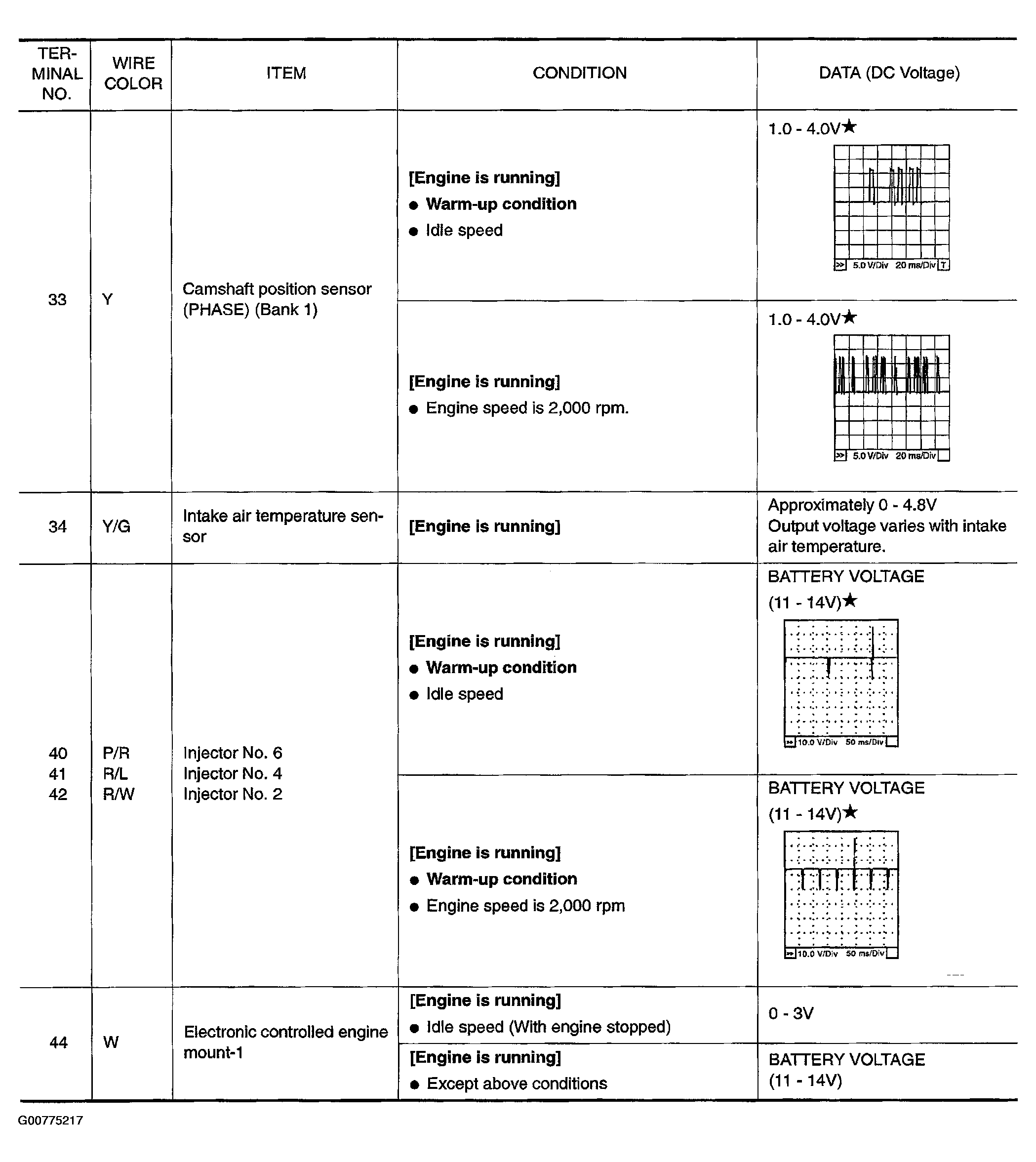

Fig 5: Identifying ECM Inspection Table (5 Of 10)

G00775217

Courtesy of NISSAN MOTOR CO., U.S.A.

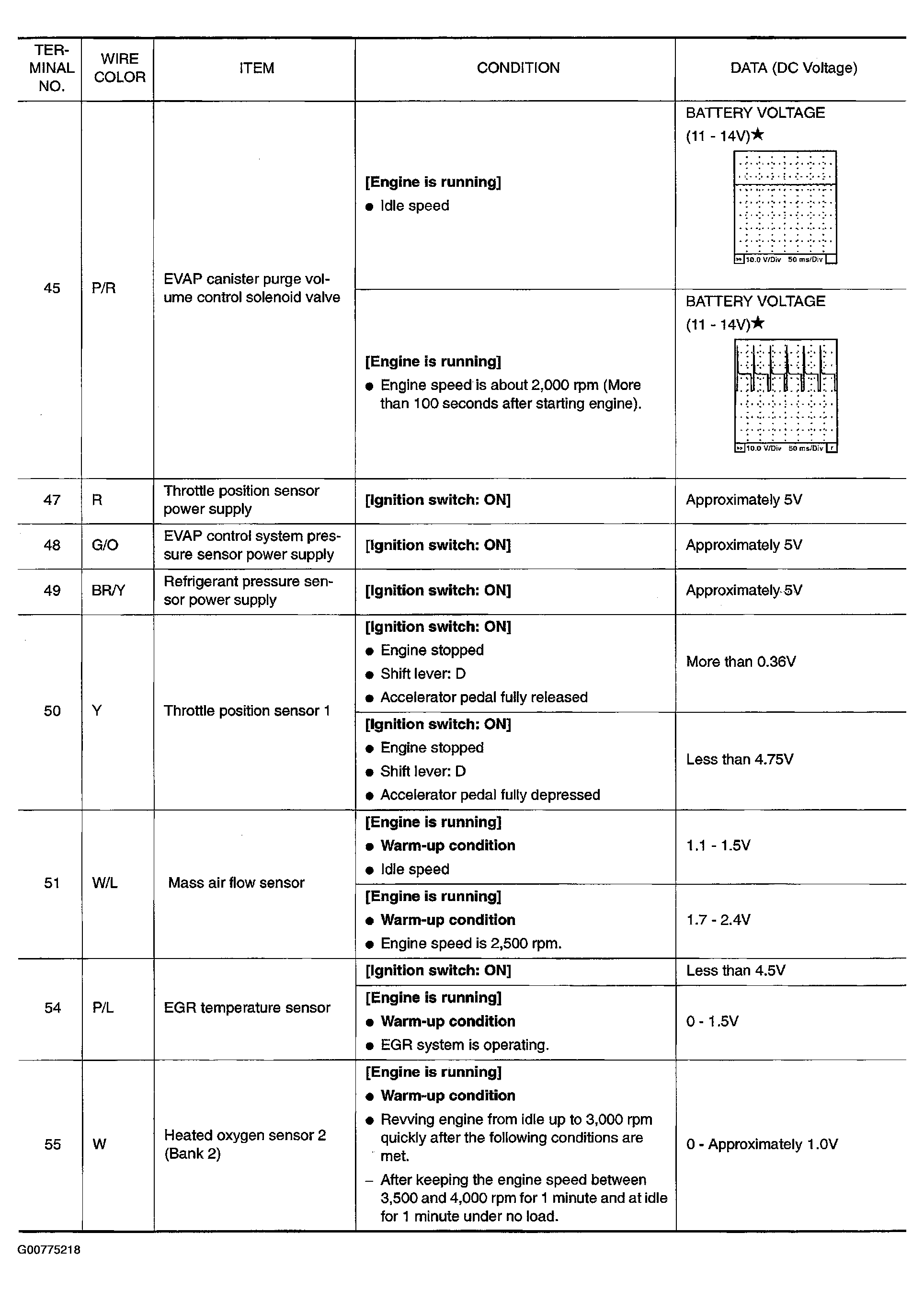

Fig 6: Identifying ECM Inspection Table (6 Of 10)

G00775218

Courtesy of NISSAN MOTOR CO., U.S.A.

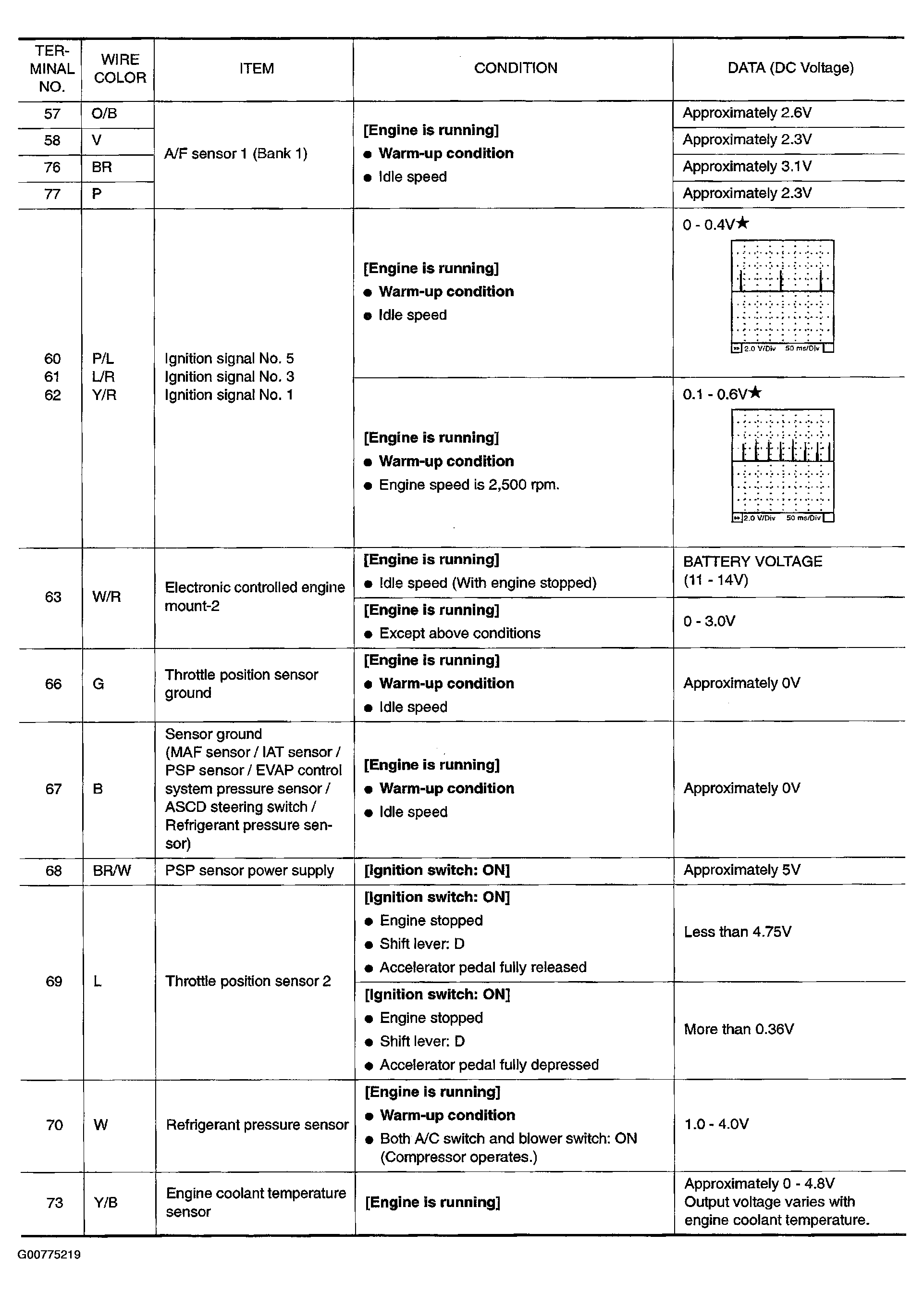

Fig 7: Identifying ECM Inspection Table (7 Of 10)

G00775219

Courtesy of NISSAN MOTOR CO., U.S.A.

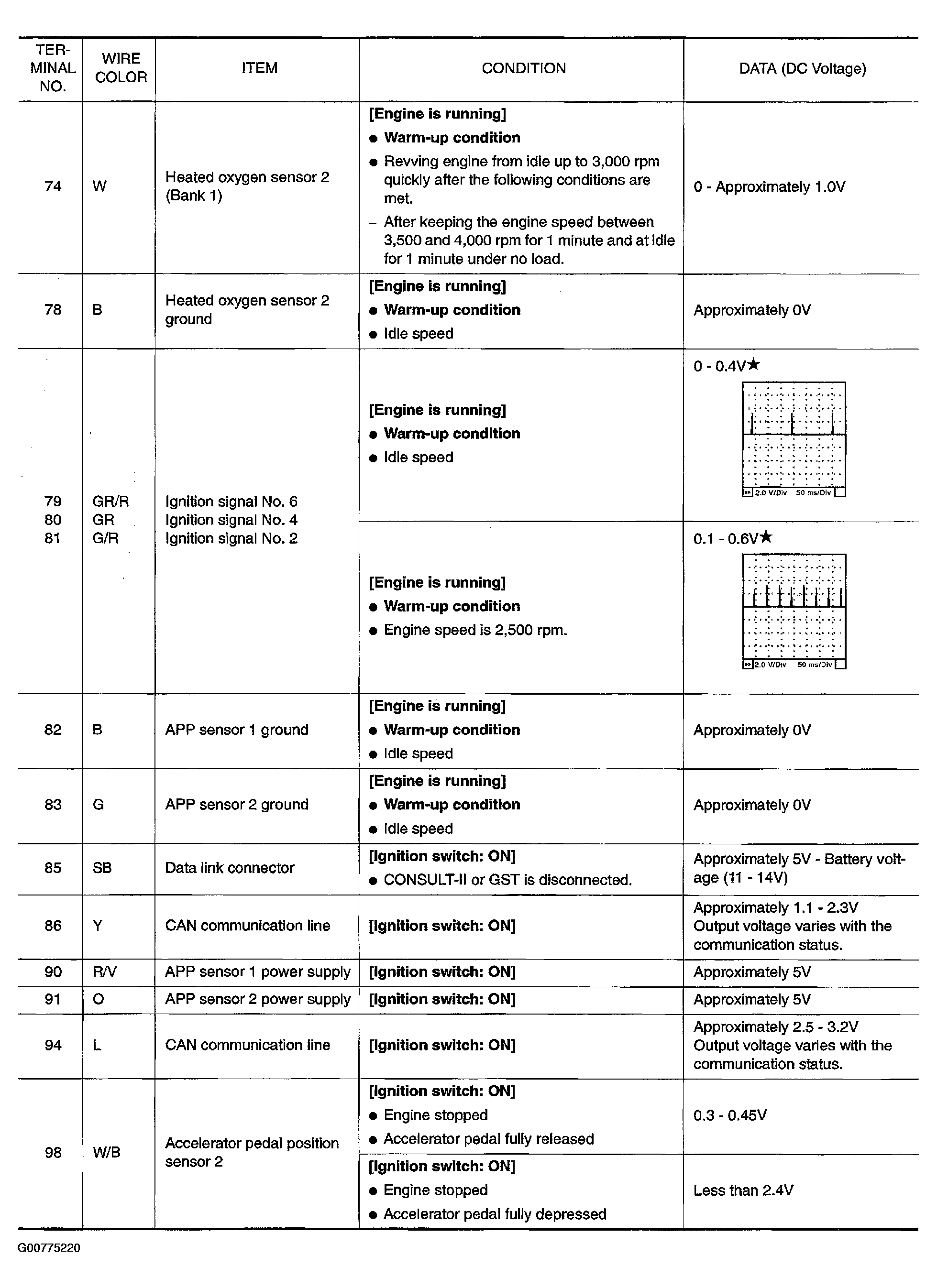

Fig 8: Identifying ECM Inspection Table (8 Of 10)

G00775220

Courtesy of NISSAN MOTOR CO., U.S.A.

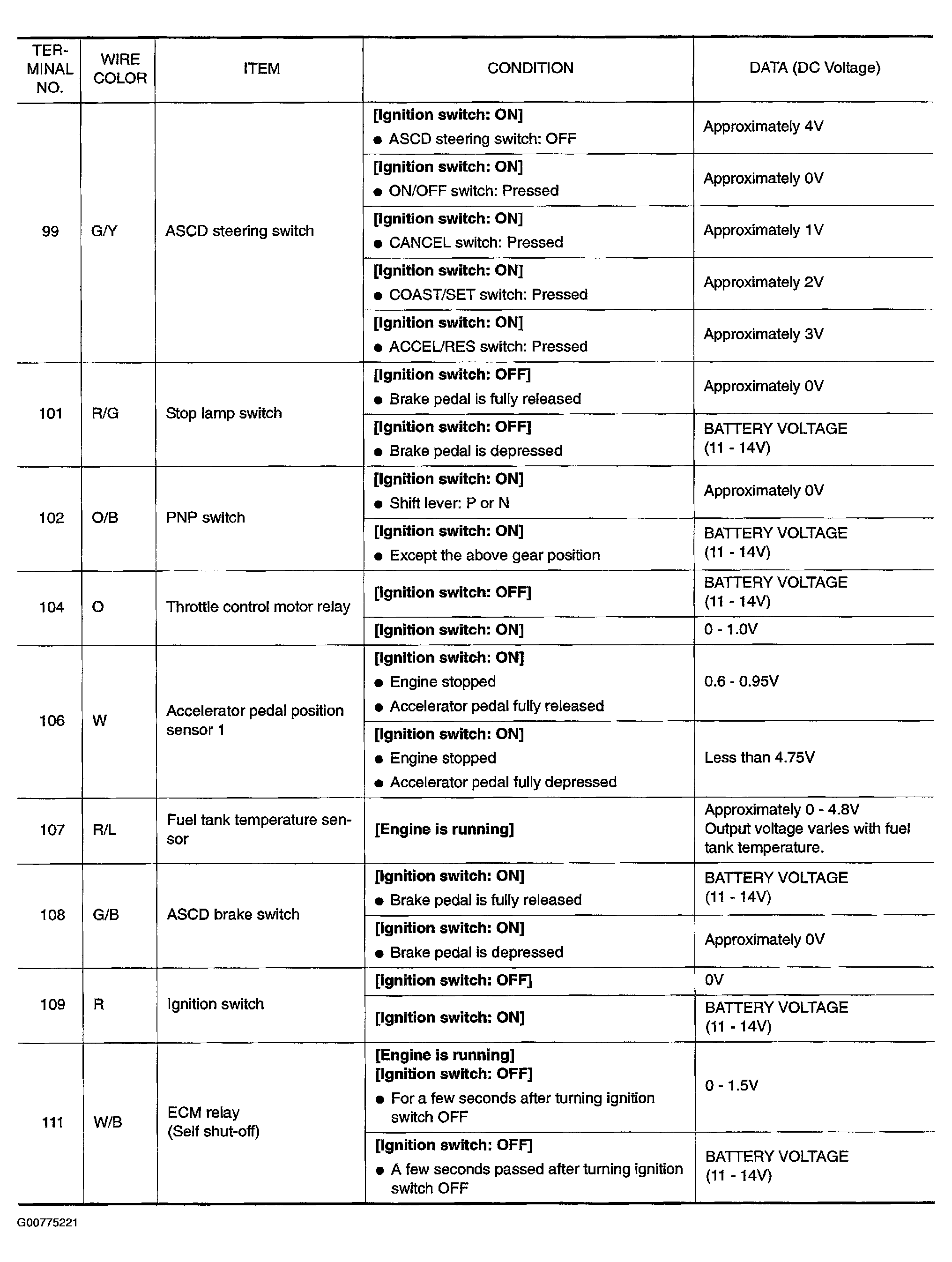

Fig 9: Identifying ECM Inspection Table (9 Of 10)

G00775221

Courtesy of NISSAN MOTOR CO., U.S.A.

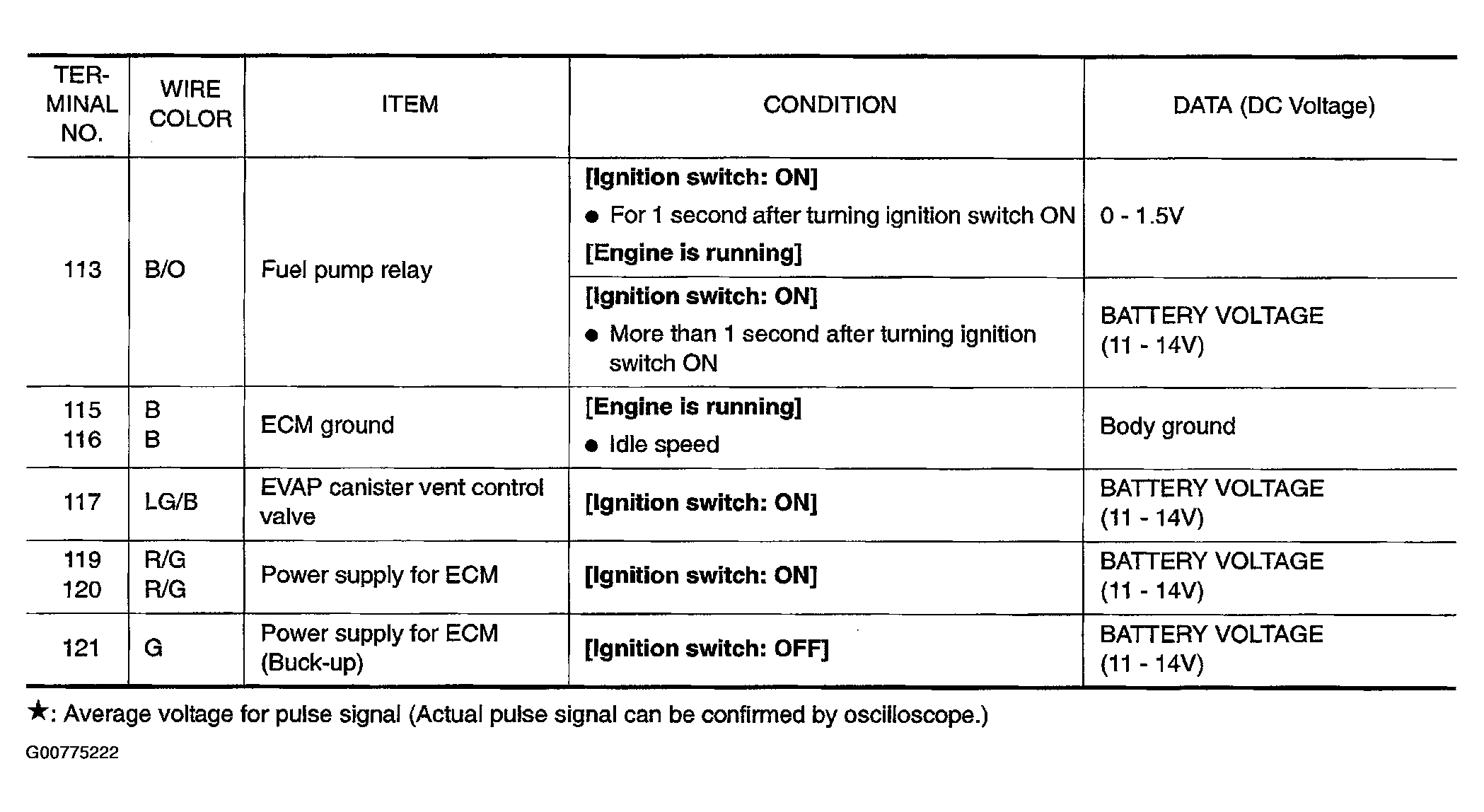

Fig 10: Identifying ECM Inspection Table (10 Of 10)

G00775222

Courtesy of NISSAN MOTOR CO., U.S.A.
