Normal Control

The line pressure to throttle opening characteristics is set for suitable clutch operation.

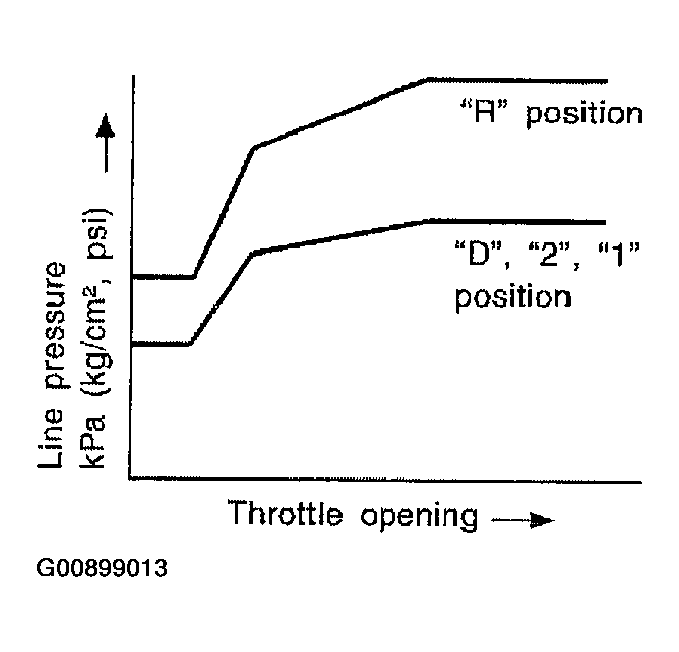

Fig 1: Line Pressure To Throttle Opening Graph
G00899013Courtesy of NISSAN MOTOR CO., U.S.A.
