Control Valve Lower Body: Components

Numbers preceding valve springs correspond with those shown in "CONTROL VALVE AND PLUG RETURN SPRINGS ".

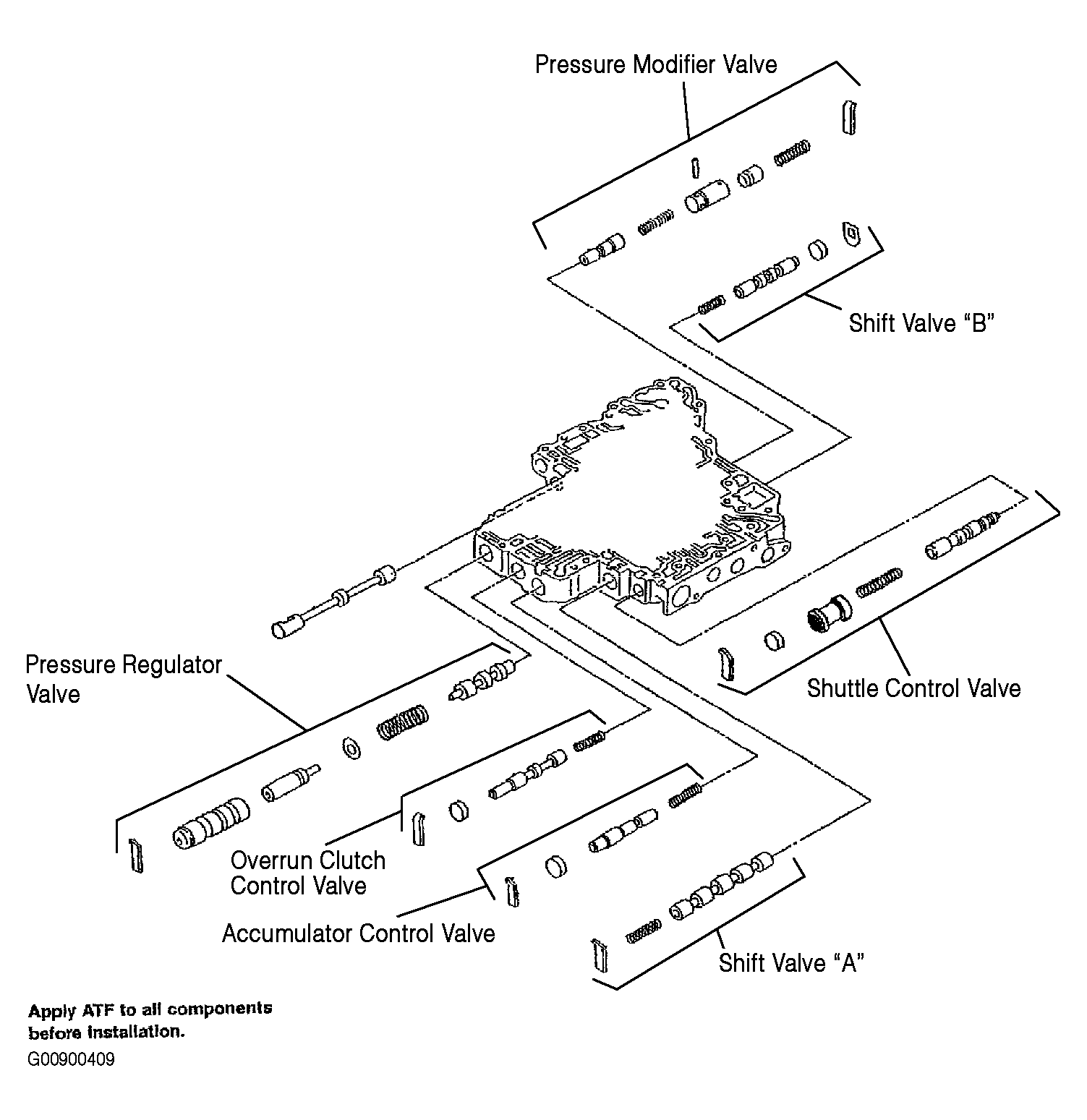

Fig 1: Identifying Control Valve Lower Body Components

Courtesy of NISSAN MOTOR CO., U.S.A.
