Control Valve Upper Body: Assembly: Notes

Lay control valve body down when installing valves. Do not stand the control valve body upright.

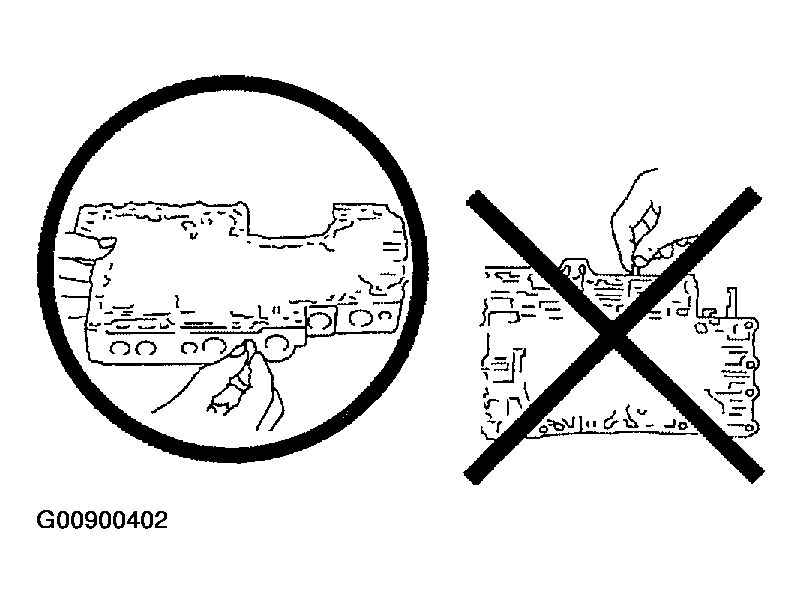

Fig 1: Identifying Correct Way Of Installing Valves On Control Valve Body
Courtesy of NISSAN MOTOR CO., U.S.A.

Lubricate the control valve body and all valves with ATF. Install control valves by sliding them carefully into their bores.

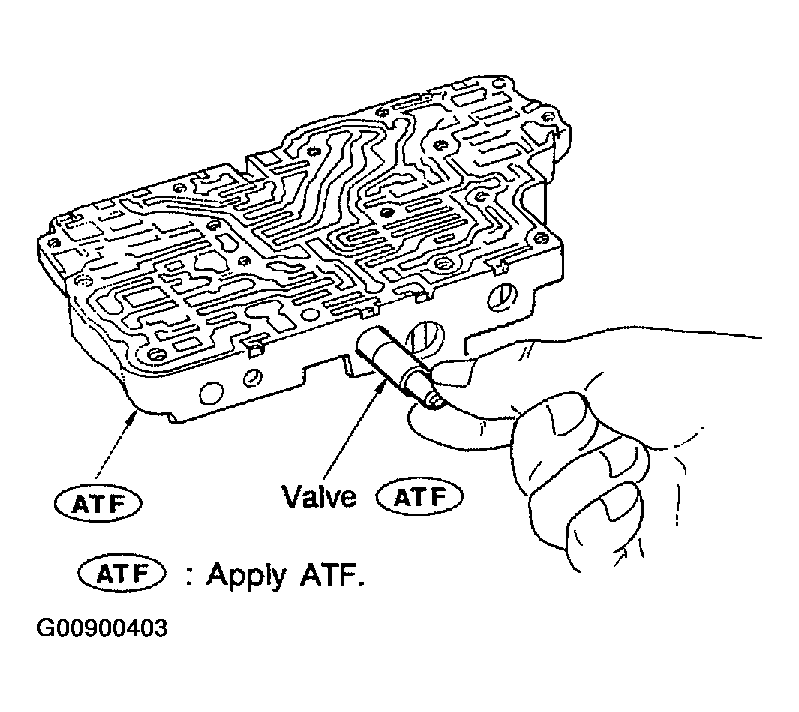

Fig 2: Installing Control Valves
Courtesy of NISSAN MOTOR CO., U.S.A.
- Be careful not to scratch or damage valve body.
- Wrap a small screwdriver with vinyl tape and use it to insert the valves into their proper positions.

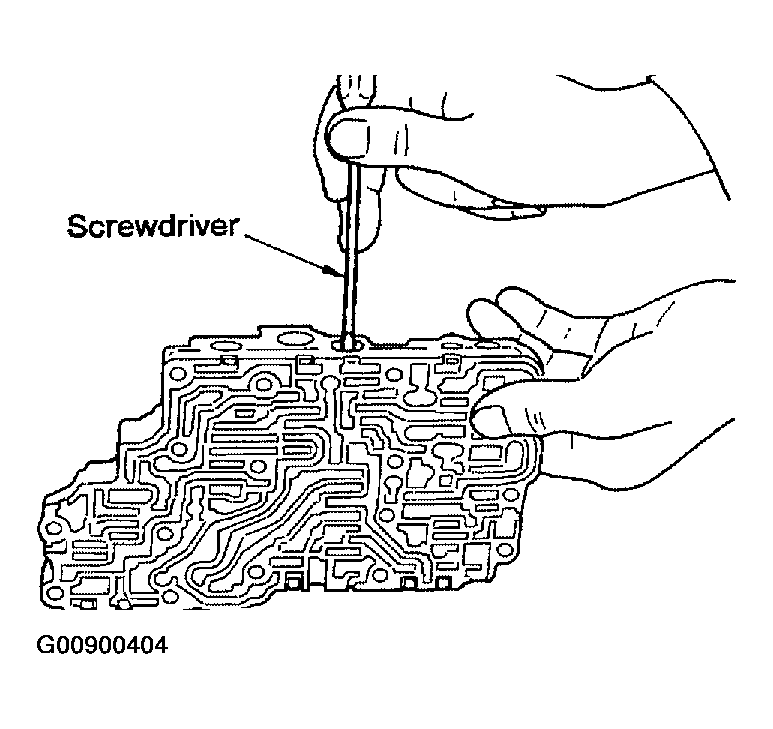

Fig 3: Inserting Valves
Courtesy of NISSAN MOTOR CO., U.S.A.
