Final Drive: Components

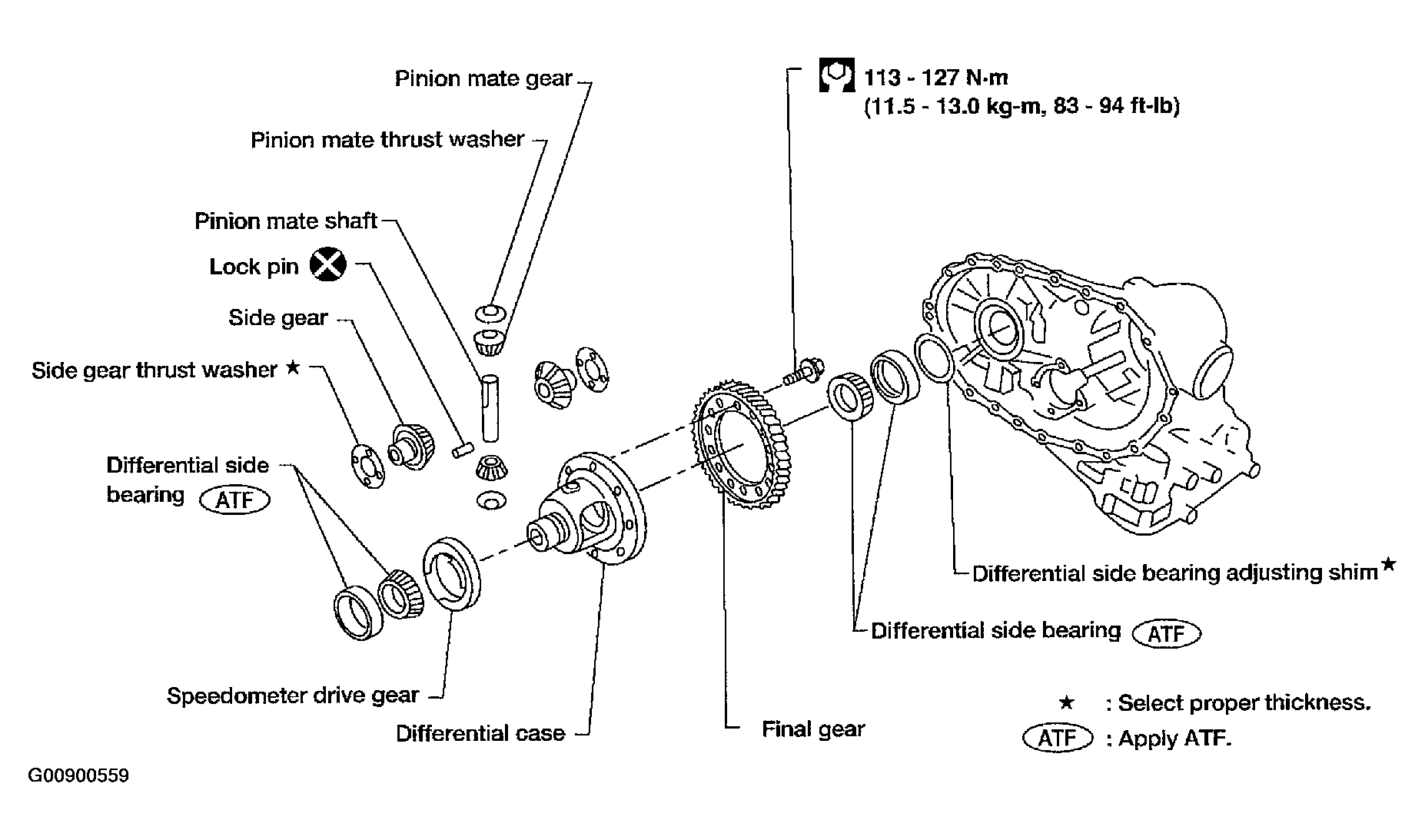

Fig 1: Identifying Final Drive Components

G00900559

Courtesy of NISSAN MOTOR CO., U.S.A.
