2. Check Ground Circuit For ASCD Control Unit

WARNING: This page is about a different car, the 2004 Infiniti M45 and 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

Check continuity between ASCD control unit harness connector M35 terminal 4 (B/W), 17 (B) and body ground.

Dose continuity exist?

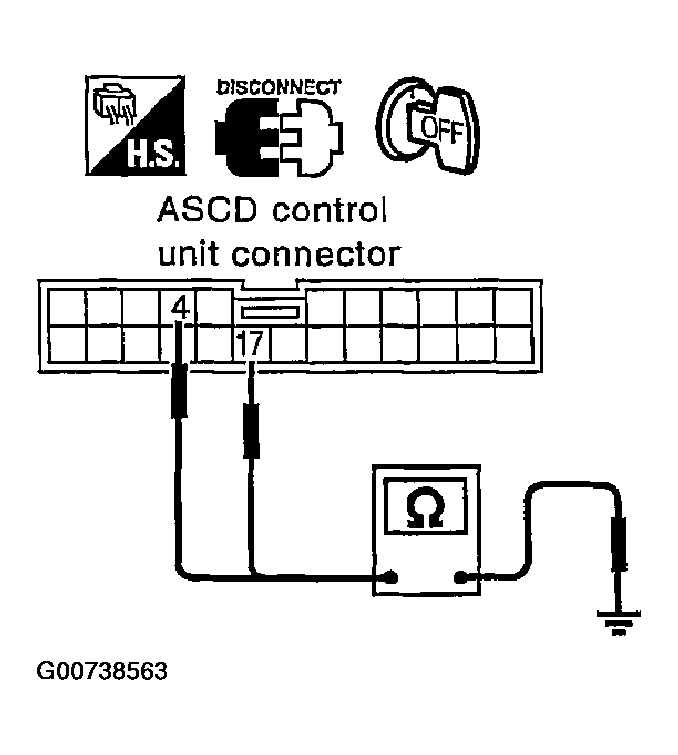

Fig 1: Checking Ground Circuit for ASCD Control Unit

Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to wiring diagram in SYSTEM WIRING DIAGRAMS .

Yes or No

Yes: Power supply and ground circuit is OK.
No: Repair harness or connector.
