Power Supply and Ground Circuit Check for A/C and AV Switch

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FUSE

Make sure the following fuses of the A/C and AV switch are not blown.

A/C AND AV SWITCH FUSE CHECK CHART

Terminals		Power source	Fuse No.
Connector	Terminal (Wire color)
M48	1 (Y)	Battery power	38
	2 (P/B)	ACC power	6

OK or NG

OK : GO TO 2.
NG : If fuse is blown, be sure to eliminate case of malfunction before installing new fuse. Refer to POWER DISTRIBUTION .

CHECK POWER SUPPLY CIRCUIT

Disconnect A/C and AV switch connector.
Check voltage between connector terminals and ground as follows.

A/C AND AV SWITCH CONNECTOR POWER SUPPLY CIRCUIT CHECK CHART

Terminals			Ignition switch position
(+)		(-)	OFF	ACC	ON
Connector	Terminal (Wire color)	(-)	OFF	ACC	ON
M48	1 (Y)	Ground	Battery voltage	Battery voltage	Battery voltage
M48	2 (P/B)	Ground	OV	Battery voltage	Battery voltage

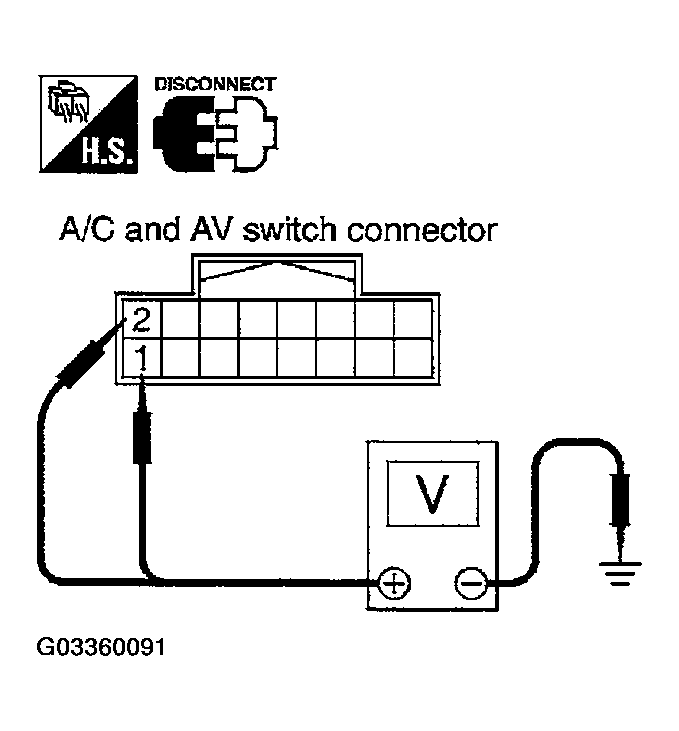

Fig 1: Checking Voltage Between A/C And AV Switch Connector Terminals And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : GO TO 3.
NG : Check harness for open or short between A/C and AV switch and fuse.

CHECK GROUND CIRCUIT

Turn ignition switch OFF.
Check continuity between A/C and AV switch and ground as follows.

A/C AND AV SWITCH CONNECTOR GROUND CIRCUIT CHECK CHART

Terminals			Ignition switch	Continuity
(+)		(-)
Connector	Terminal (Wire color)
M48	5 (B)	Ground	OFF	Yes

OK or NG

OK : INSPECTION END.
NG : Repair or replace harness.

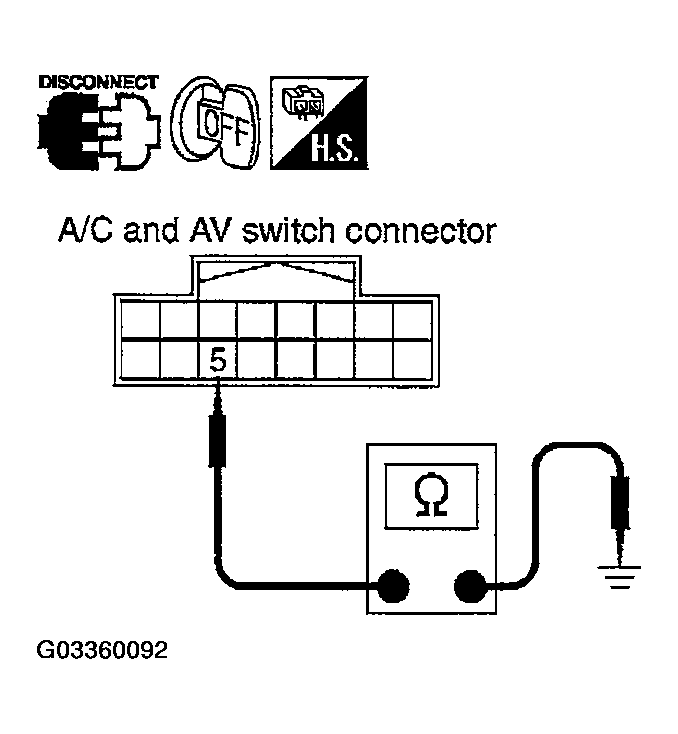

Fig 2: Checking Continuity Between A/C And AV Switch Connector Terminals And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.
