Quick reference table
WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
- Select an malfunctioning diagnosis No. in the diagnosis result quick reference table.
- Find estimated malfunctioning system in the diagnosis No. table and perform check by referring to "WIRING DIAGRAM - COMM - ".
- Turn the ignition switch OFF and perform self-diagnosis again.

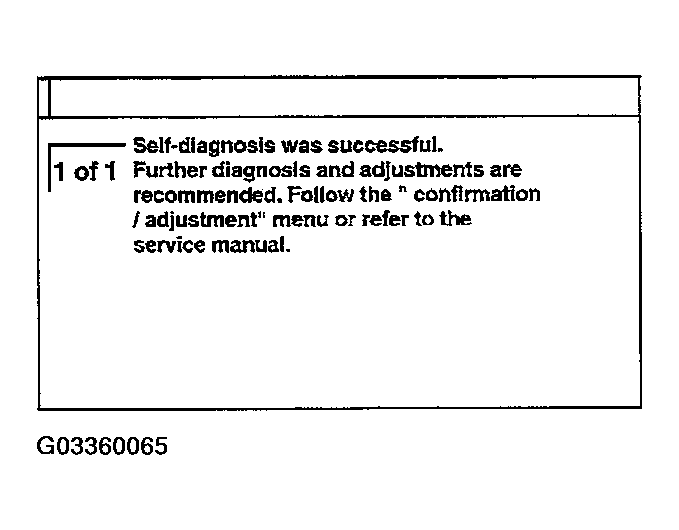

SELF-DIAGNOSIS RESULTS CHART
| Screen switch | Diagnosis No. | ||||
|---|---|---|---|---|---|
| Switch color | Navigation (1) | GPS antenna | |||
| Red | X | 1 | |||
| Gray | X | 2 | |||
| Yellow | X | 3 | |||
| X | 4 | ||||
| X | X | 5 | |||
|
|||||
CAUTION:
- When A/C and AV switch has a malfunction, you cannot start.
- When display has a malfunction, you cannot start.
- Check the following when the self-diagnosis mode cannot be used.
- AV communication line between display control unit and A/C and AV switch. Refer to AV COMMUNICATION LINE CHECK (BETWEEN DISPLAY CONTROL UNIT AND A/C AND AV SWITCH) .
- A/C and AV switch power supply and ground circuit. Refer to POWER SUPPLY AND GROUND CIRCUIT CHECK FOR A/C AND AV SWITCH .
- Display communication line between display control unit and display. Refer to DISPLAY COMMUNICATION LINE CHECK (BETWEEN DISPLAY CONTROL UNIT AND DISPLAY) .
- Display power supply and ground circuit. Refer to POWER SUPPLY AND GROUND CIRCUIT CHECK FOR DISPLAY .
