Inspection Procedure

Check self-diagnosis results.

Is above displayed in self-diagnosis item?

• YES: GO TO 2.
• NO: Inspection End.

1. Turn ignition switch OFF.
2. Disconnect steering angle sensor connector M47 and ABS actuator and electric unit (control unit) connector E125 and check terminals for deformation, disconnection, looseness, or damage. Repair or replace as necessary.
3. Reconnect connectors and repeat ABS actuator and electric unit (control unit) self-diagnosis.

Is "ST ANGLE SEN CIRCUIT" or "ST ANG SEN COM CIR" displayed?

• YES: GO TO 3.
• NO: Inspection End.

1. Turn ignition switch ON.
2. Check voltage between steering angle sensor harness connector M47 and body ground.
   VOLTAGE SPECIFICATIONS



   Terminals			Measured value (Approx.)
   (+)		(-)
   Steering angle sensor connector	Terminal
   M47	1	Ground	12V
   	3		12V

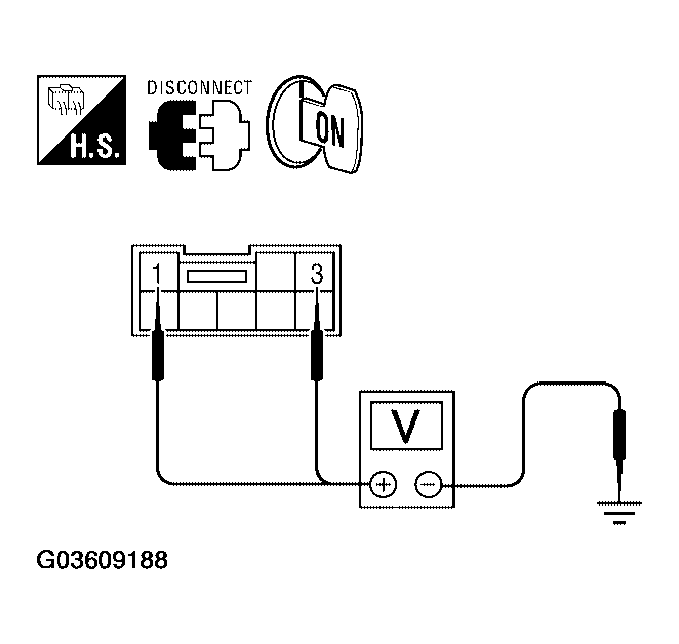

   Fig 1: Checking Voltage Between Steering Angle Sensor Harness Connector M47 And Body Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Turn ignition switch OFF.
4. Check resistance between steering angle sensor harness connector M47 and body ground.
   RESISTANCE SPECIFICATIONS



   Terminals			Measured value (Approx.)
   (+)		(-)
   Steering angle sensor connector	Terminal
   M47	2	Ground	0Ω

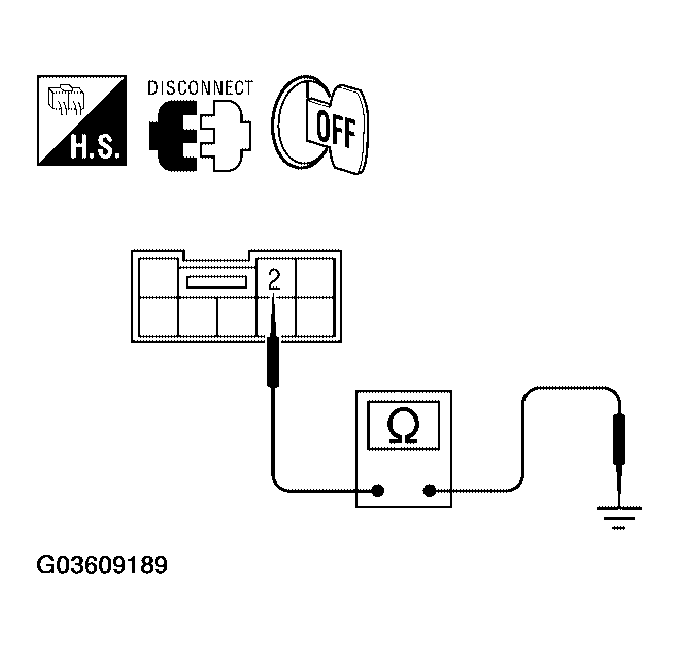

   Fig 2: Checking Resistance Between Steering Angle Sensor Harness Connector M47 And Body Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK: GO TO 4.
• NG: Repair the circuit.

1. Check CAN communication system. Refer to CAN COMMUNICATION SYSTEM DESCRIPTION .
2. Disconnect steering angle sensor connector M47 and ABS actuator and electric unit (control unit) connector E125.
3. Check continuity between ABS actuator and electric unit (control unit) connector E125 and steering angle sensor connector M47.
   CONTINUITY SPECIFICATIONS



   A		B		Continuity
   Connector	Terminal	Connector	Terminal
   ABS actuator and electric unit (control unit): E125	11	Steering angle sensor: M47	4	Yes
   ABS actuator and electric unit (control unit): E125	15	Steering angle sensor: M47	5	Yes

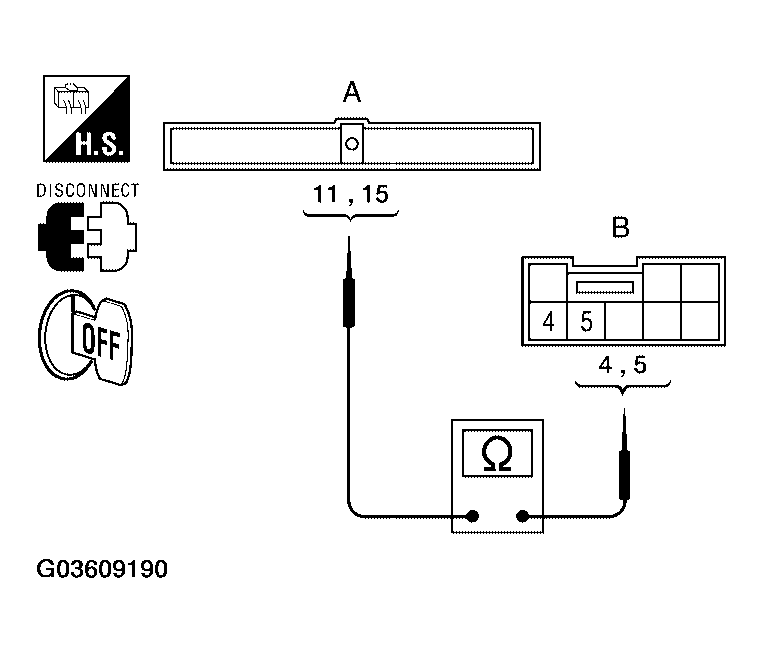

   Fig 3: Checking Continuity Between ABS Actuator And Electric Unit (Control Unit) Connector E125 And Steering Angle Sensor Connector M47

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK: GO TO 5.
• NG: Repair or replace harness.

Check steering wheel play. Refer to "CHECKING STEERING WHEEL PLAY ".

OK or NG

• OK: GO TO 6.
• NG: Adjust steering wheel play.

1. Connect steering angle sensor and ABS actuator and electric unit (control unit) connectors.
2. Use "DATA MONITOR" to check if the status of "STR ANGLE SIG" is normal.
   DATA MONITOR DESCRIPTION



   Steering condition	Data monitor
   Straight-ahead	-3.5 deg to +3.5 deg
   Turn wheel to the right by 90°	Approx. - 90deg
   Turn wheel to the left by 90°	Approx. + 90deg

OK or NG

• OK: Perform ABS actuator and electric unit (control unit) self-diagnosis again.
• NG: Replace spiral cable (steering angle sensor) and adjust neutral position of steering angle sensor. Refer to "ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION ".
