Trouble Diagnosis Flow Chart

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

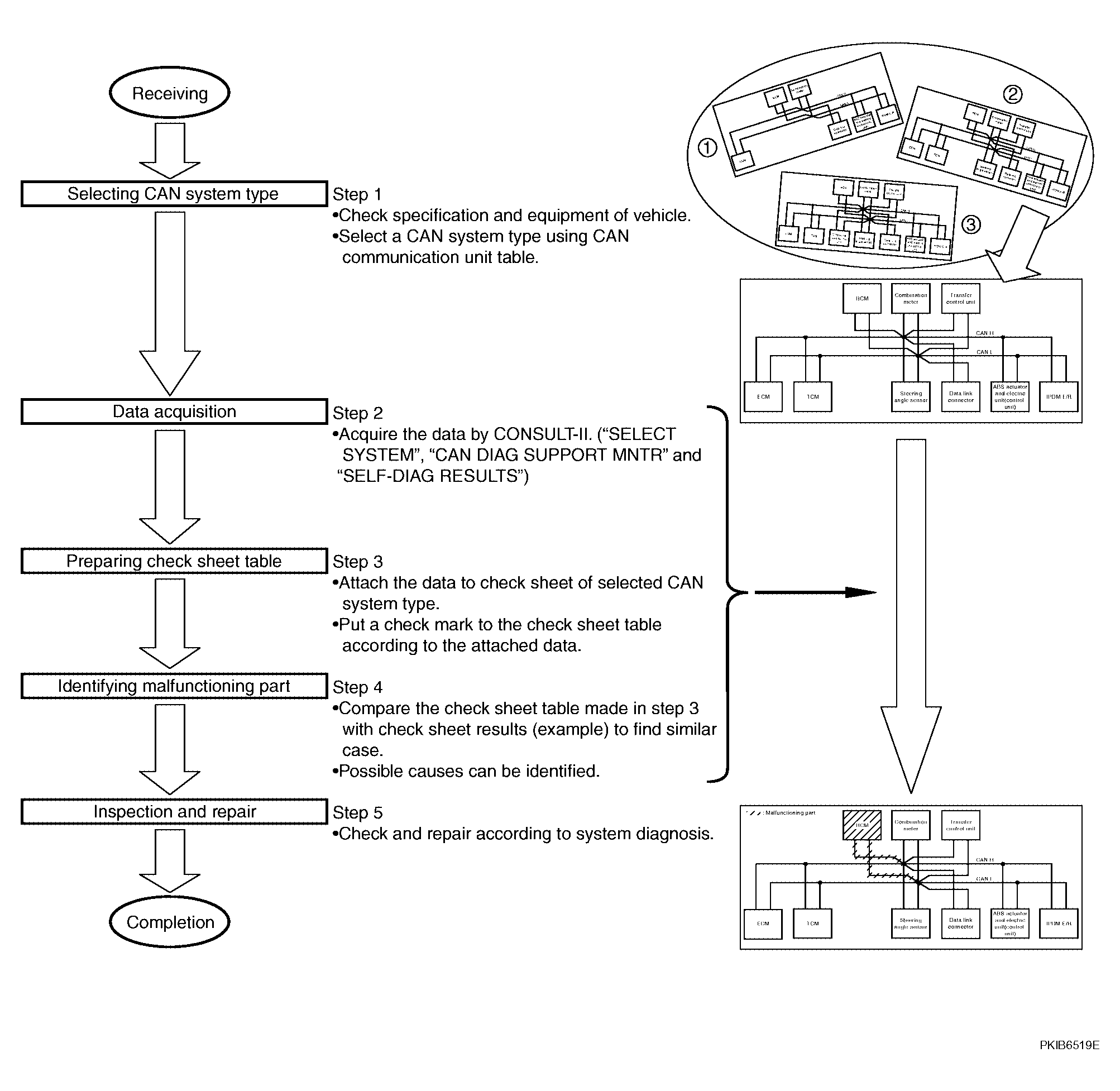

Fig 1: Trouble Diagnosis Flow Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

Step 1: Refer to "SELECTING CAN SYSTEM TYPE (HOW TO USE SPECIFICATION TABLE) ".
Step 2: Refer to "ACQUISITION OF DATA BY CONSULT-II ".
Step 3: Refer to "HOW TO USE CHECK SHEET TABLE ".
Step 4: Refer to "EXAMPLE OF FILLING IN CHECK SHEET WHEN INITIAL CONDITIONS ARE REPRODUCED ".
Step 5: Check and repair according to system diagnosis.
