Wiring Diagram - Without Intelligent Key System

WARNING: This page is about a different car, the 2012 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

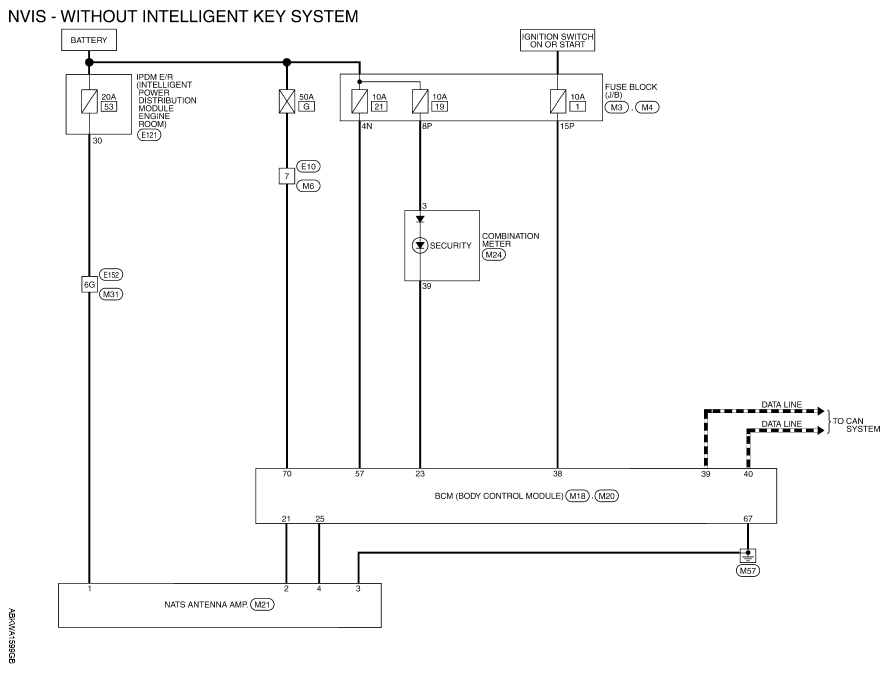

Fig 1: NVIS (Without Intelligent Key System) Wiring Diagram
G08168384Courtesy of NISSAN NORTH AMERICA, INC.
