5. Install The Pressure Pump

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

To locate the EVAP leak, install EVAP service port adapter and pressure pump to EVAP service port securely. For the location of EVAP service port, refer to "EVAPORATIVE EMISSION LINE DRAWING ".

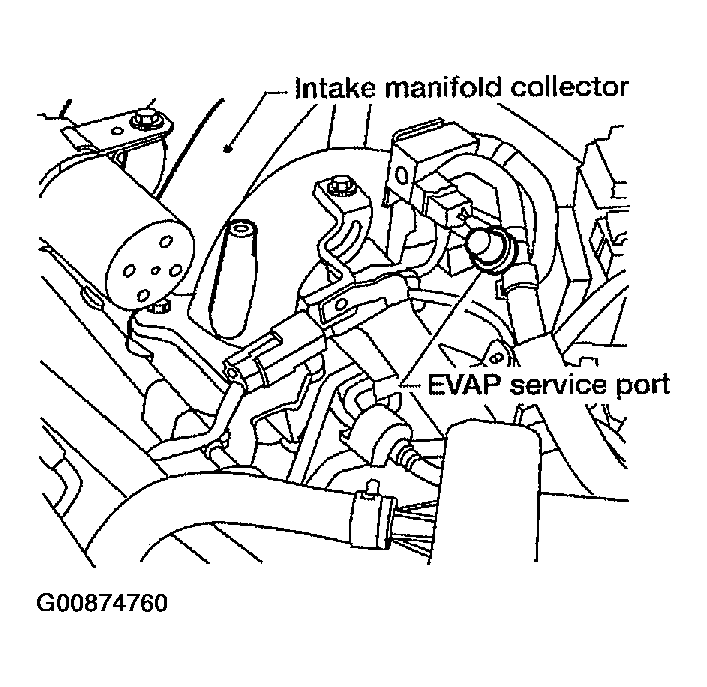

Fig 1: Locating EVAP Service Port

Courtesy of NISSAN MOTOR CO., U.S.A.

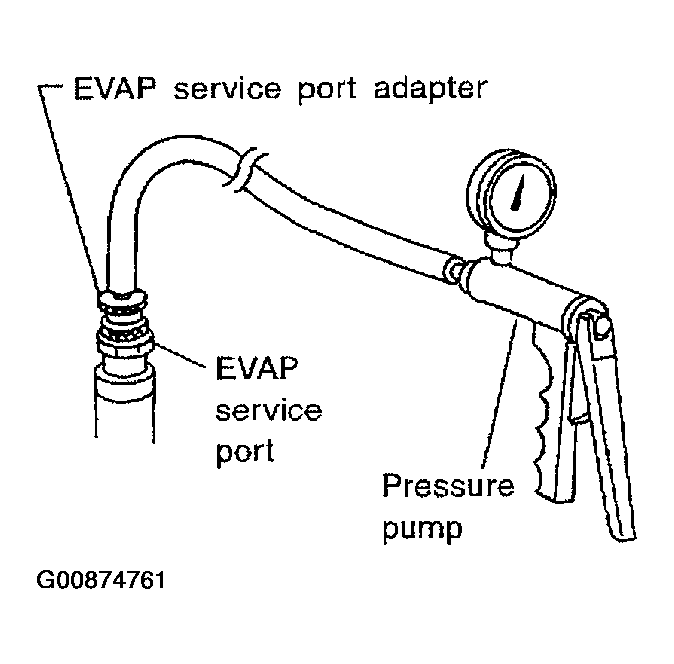

Fig 2: Connecting Pressure Pump To EVAP Service Port

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Improper installation of the EVAP service port adapter to the EVAP service port may cause leaking.

Models with CONSULT-II: GO TO 6.
Models without CONSULT-II: GO TO 7 .
