With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON.
  2. Select "MAIN SW", "RESUME/ACC SW", "SET SW" and "CANCEL SW" in "DATA MONITOR" mode with CONSULT-II.
  3. Check each item indication under the following conditions.

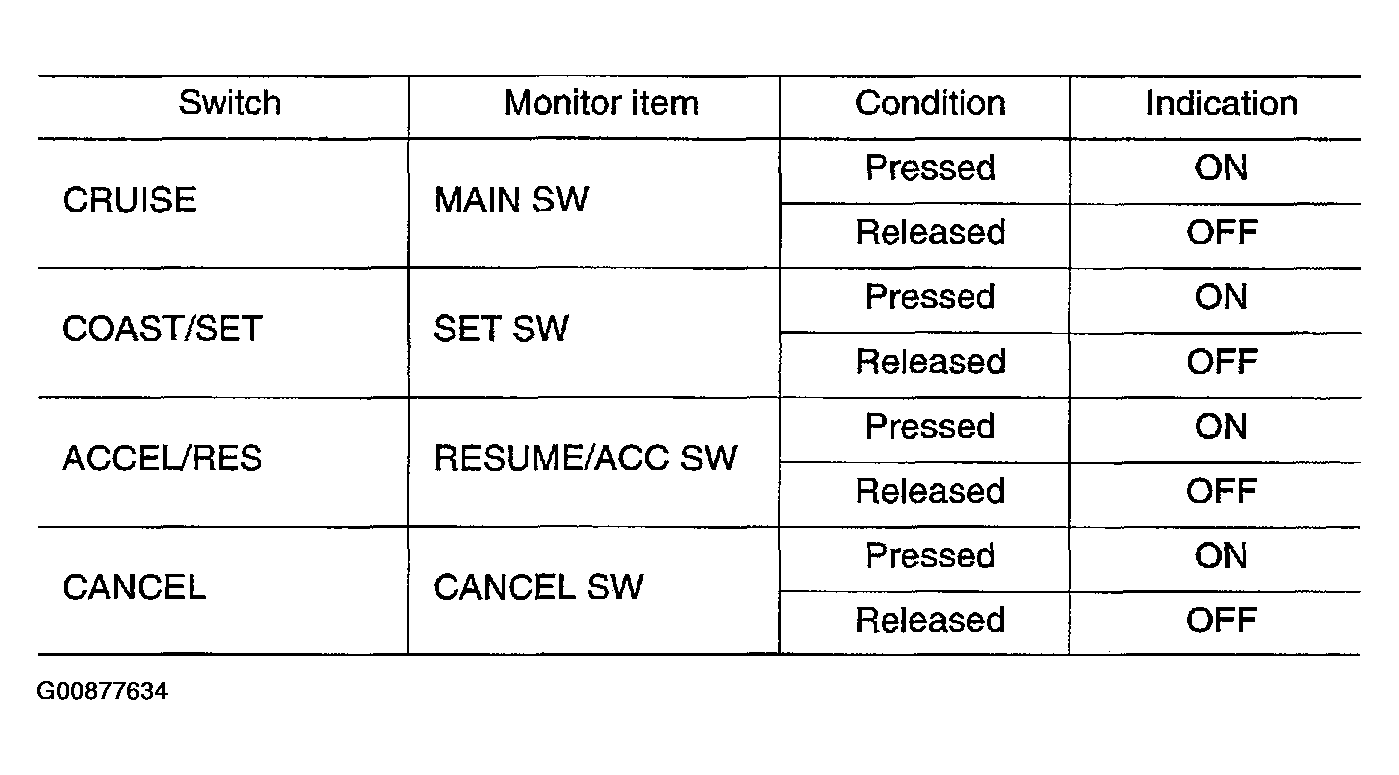

Fig 1: Check Each Item Indication Under The Following Conditions
G00877634Courtesy of NISSAN MOTOR CO., U.S.A.

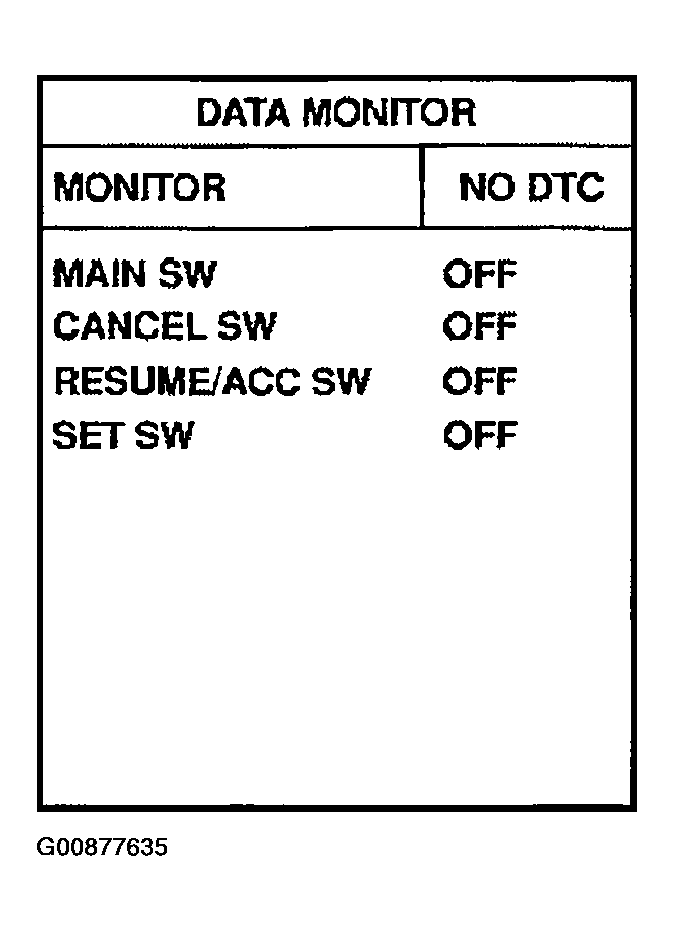

Fig 2: CONSULT-II Display Screen
G00877635Courtesy of NISSAN MOTOR CO., U.S.A.
