Component Inspection: Injector

  1. Disconnect injector harness connector.
  2. Check resistance between terminals as shown in the figure.

    Resistance: 12.1 - 12.9Ω [at 20°C (68°F)]

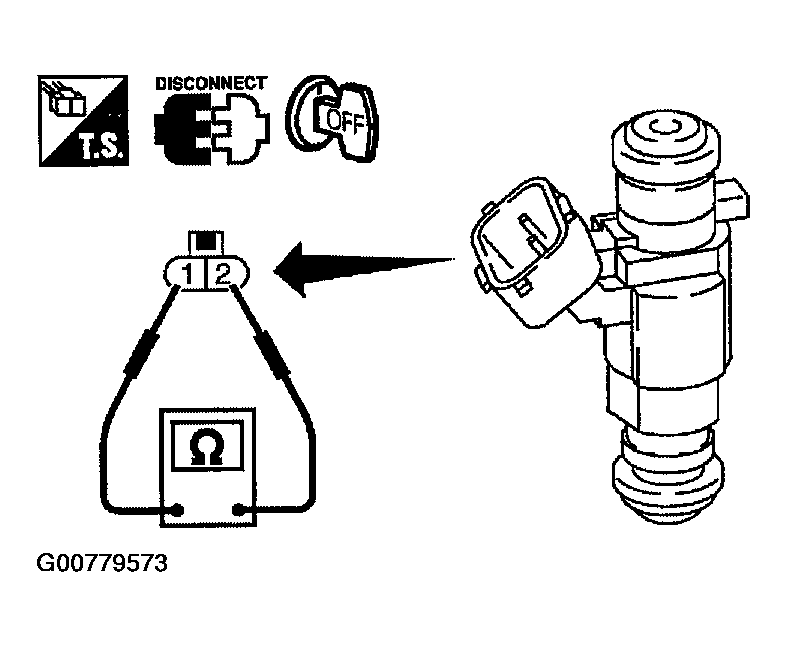

Fig 1: Checking Resistance Between Injector Harness Connector Terminals
G00779573Courtesy of NISSAN MOTOR CO., U.S.A.
