Special Service Tools

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

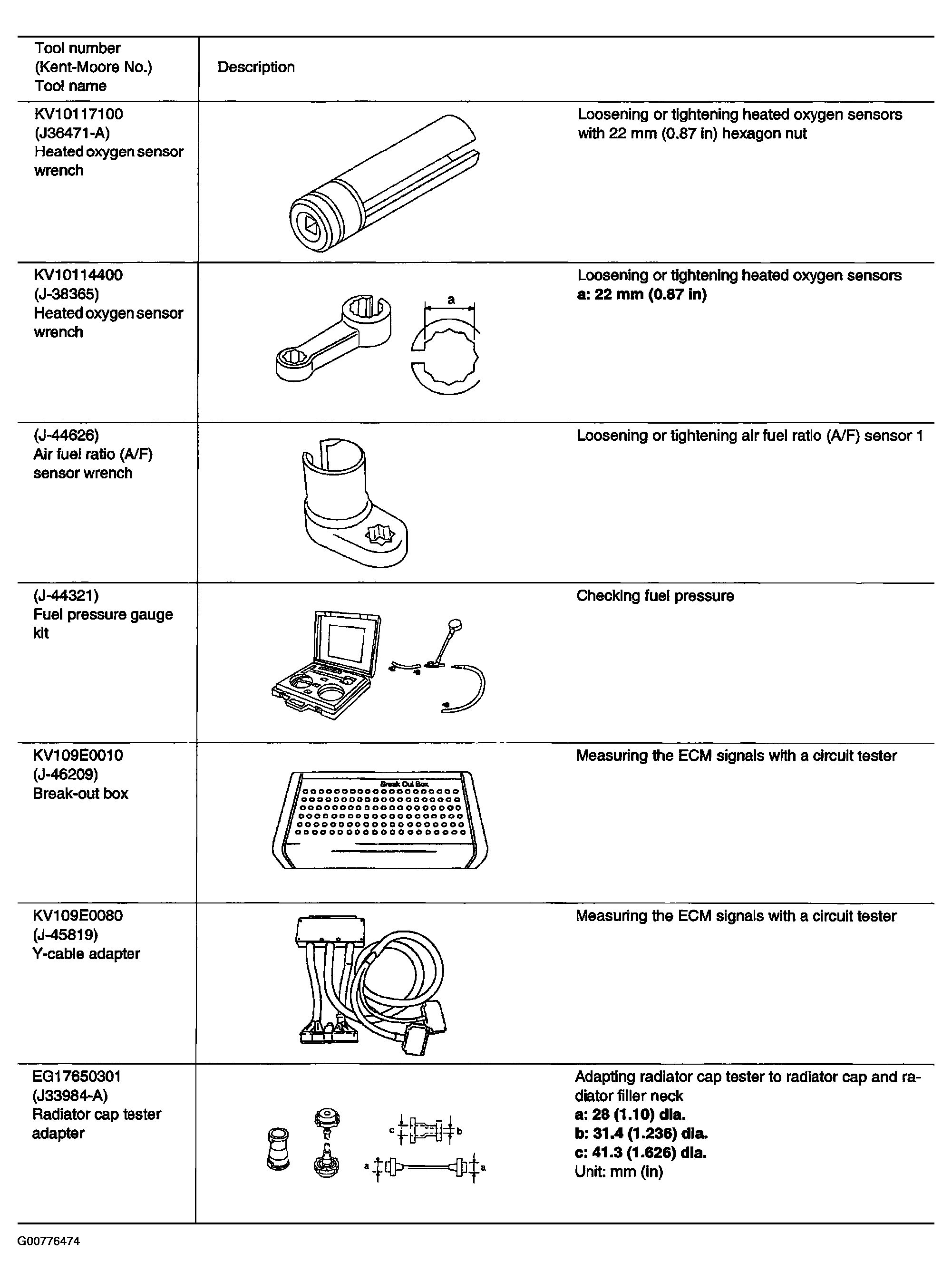

Fig 1: Identifying Special Service Tools
G00776474Courtesy of NISSAN MOTOR CO., U.S.A.
