A/T Fluid Temperature Sensor 2

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

Remove A/T fluid temperature sensor 2. Refer to "A/T FLUID TEMPERATURE SENSOR 2 REMOVAL AND INSTALLATION ".
Check resistance between terminals.

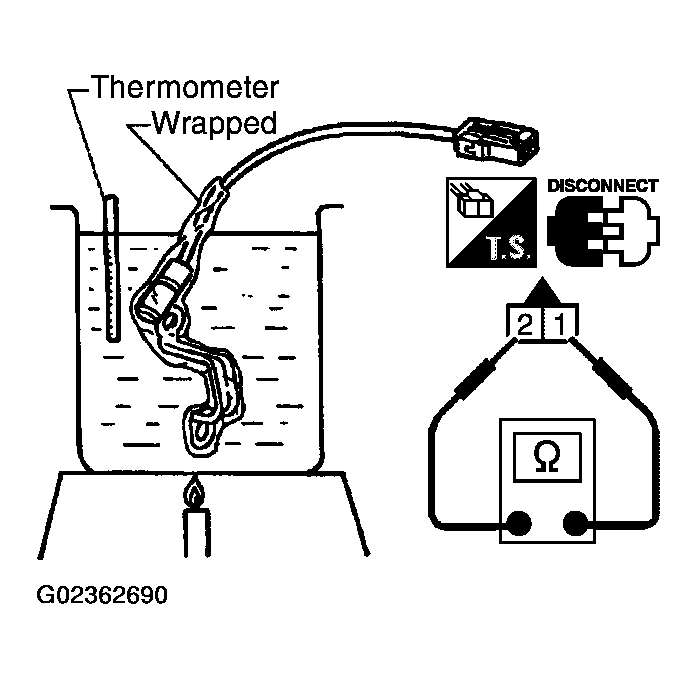

Fig 1: Check Resistance Between Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.

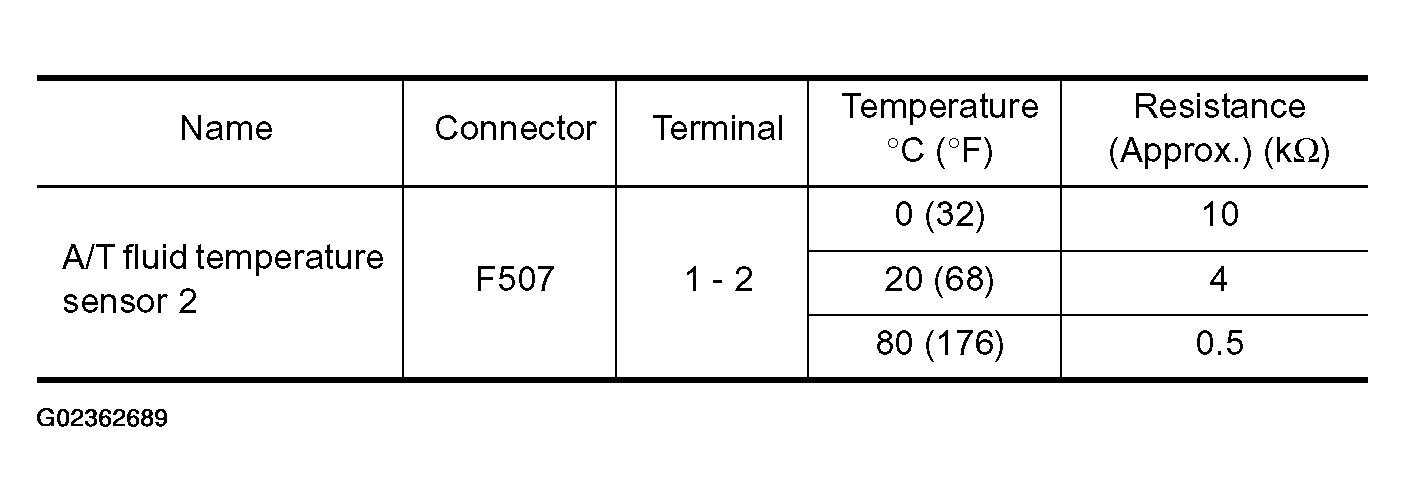

Fig 2: Connector Terminal Resistance Specification
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace the A/T fluid temperature sensor 2. Refer to "A/T FLUID TEMPERATURE SENSOR 2 REMOVAL AND INSTALLATION ".
