Control Valve And TCM Assembly Removal And Installation: Installation

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: After completing installation, check A/T fluid leakage and fluid level. Refer to "CHANGING A/T FLUID ", "CHECKING A/T FLUID ".

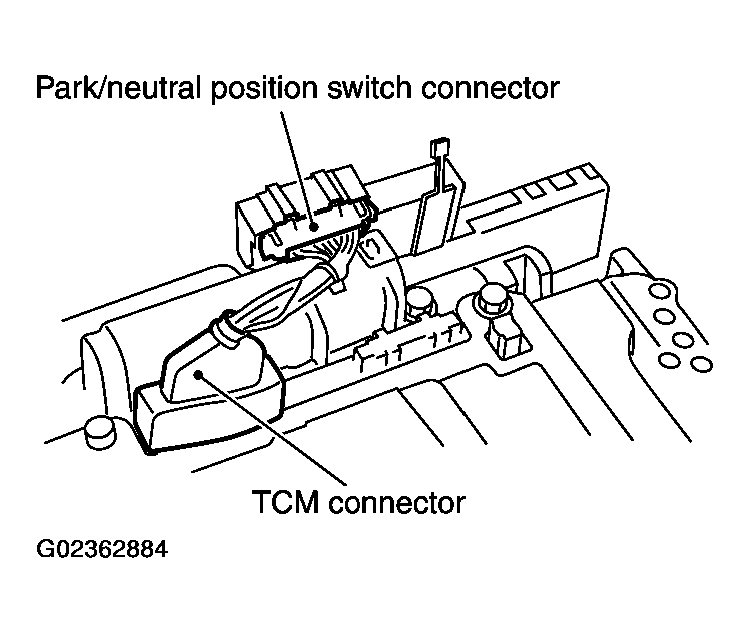

  1. Connect TCM connector and park/neutral position switch connector.
    Fig 1: Connecting TCM Connector And Park/Neutral Position Switch Connector
    G02362884Courtesy of NISSAN MOTOR CO., U.S.A.

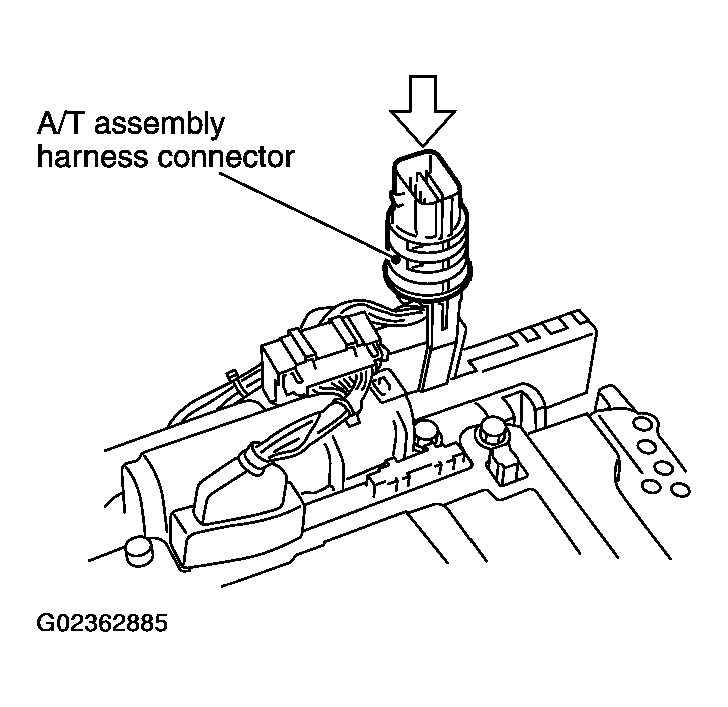

  2. Install A/T assembly harness connector from control valve with TCM.
    Fig 2: Installing A/T Assembly Harness Connector From Control Valve With TCM
    G02362885Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Connect TCM connectors.

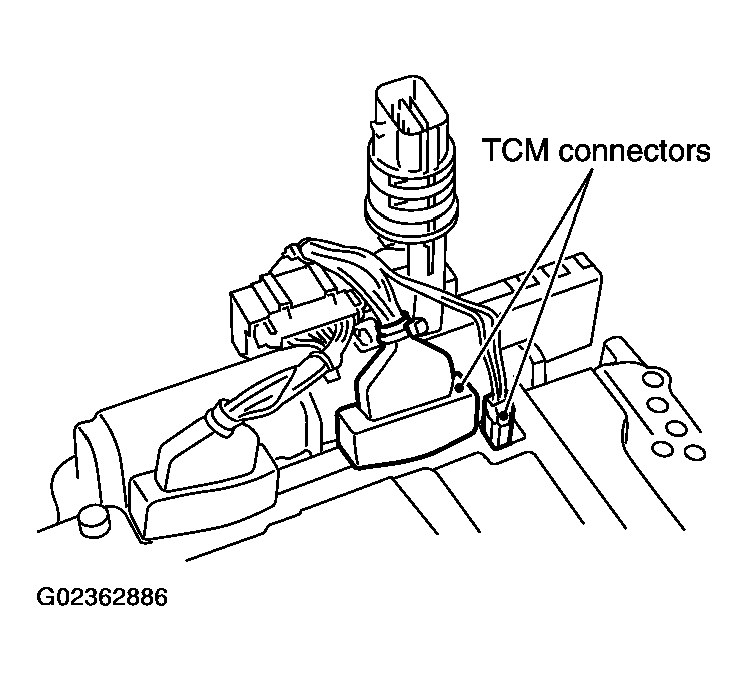

    Fig 3: Connecting TCM Connectors
    G02362886Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Install O-ring in A/T assembly harness connector.
    CAUTION:
    • Do not reuse O-ring.
    • Apply ATF to O-ring.

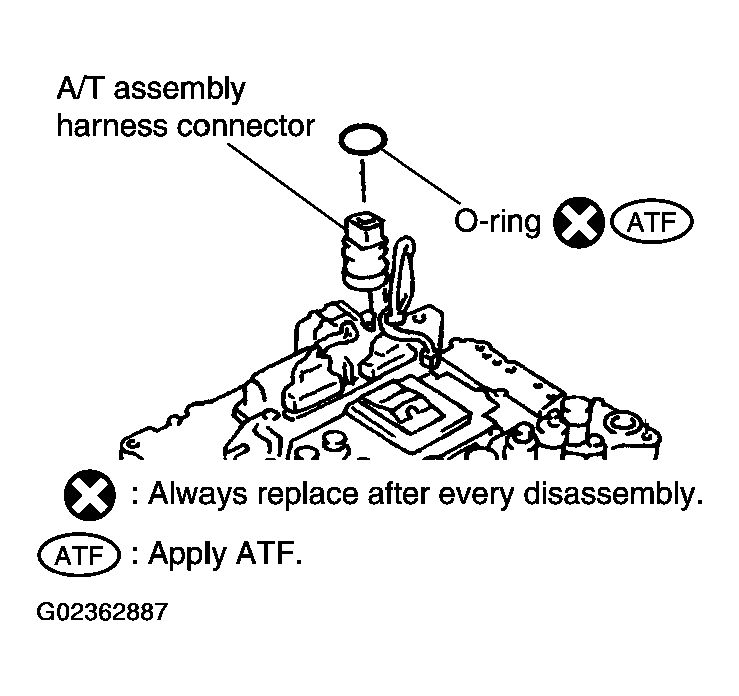

    Fig 4: Installing O-Ring In A/T Assembly Harness Connector
    G02362887Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install A/T fluid temperature sensor 2 to bracket.

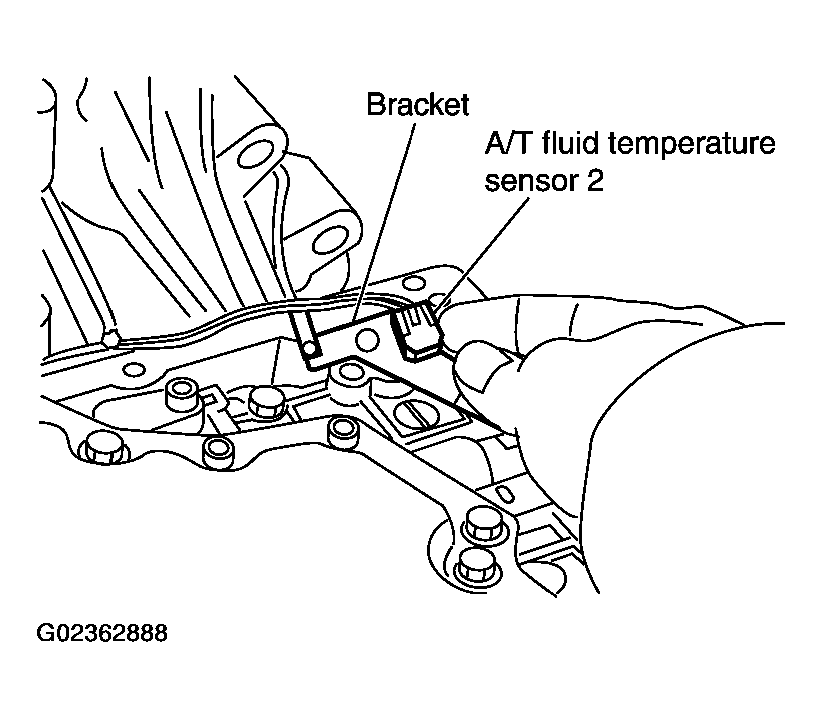

    Fig 5: Installing A/T Fluid Temperature Sensor
    G02362888Courtesy of NISSAN MOTOR CO., U.S.A.

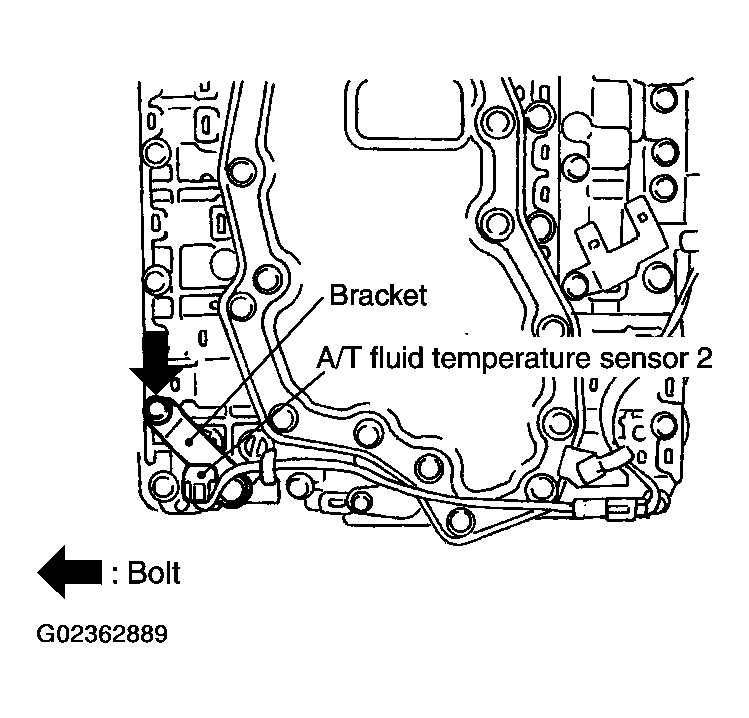

  6. Install A/T fluid temperature sensor 2 (with bracket) in control valve with TCM.
    CAUTION: Adjust bolt hole of bracket to bolt hole of control valve with TCM.
    1. : 7.9 N.m (0.81 kg-m, 70 in-lb)
    Fig 6: Locating A/T Fluid Temperature Sensor
    G02362889Courtesy of NISSAN MOTOR CO., U.S.A.

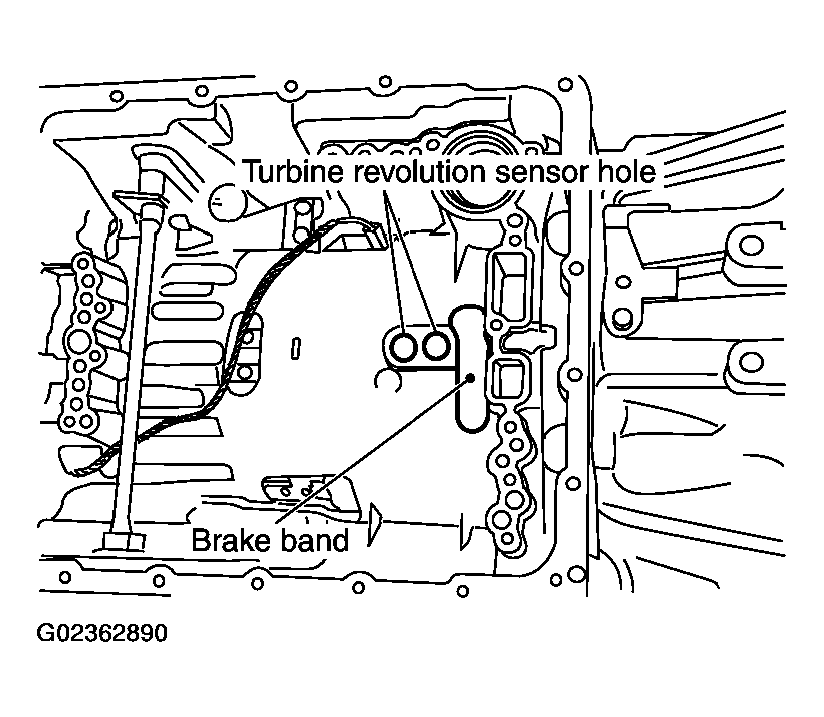

  7. Install control valve with TCM in transmission case.
    CAUTION:
    • Make sure that turbine revolution sensor securely installs turbine revolution sensor hole.
    • Hang down revolution sensor harness toward outside so as not to disturb installation of control valve with TCM.
    • Adjust A/T assembly harness connector of control valve with TCM to terminal hole of transmission case.
      Fig 7: Locating Turbine Revolution Sensor Hole
      G02362890Courtesy of NISSAN MOTOR CO., U.S.A.
    • Assemble it so that manual valve cutout is engaged with manual plate projection.
    Fig 8: Locating Manual Valve
    G02362891Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Install bolts A, B and C in control valve with TCM.
    BOLT SPECIFICATION

    Bolt symbol Length mm (in) Number of bolts
    A 42 (1.65) 5
    B 55 (2.17) 6
    C 40 (1.57) 1

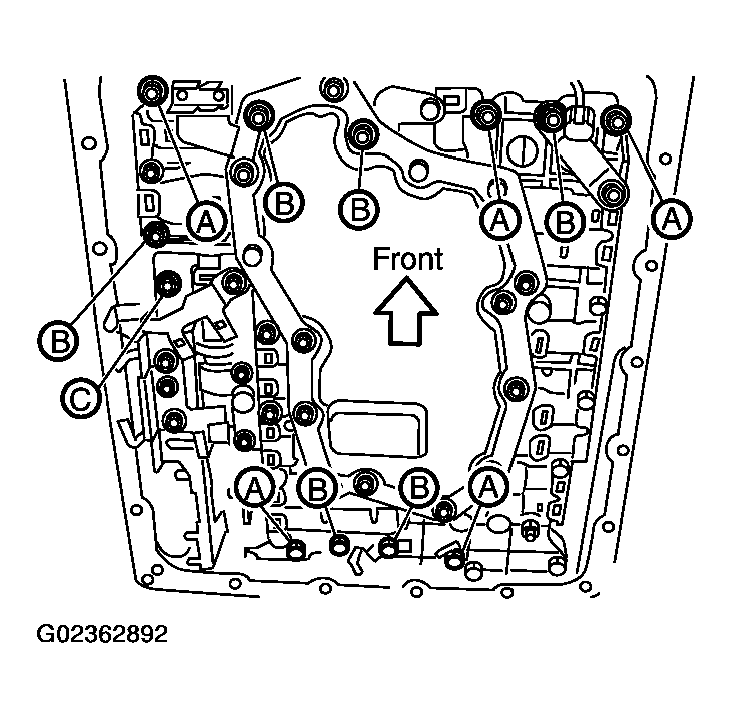

    Fig 9: Locating Bolt Symbol
    G02362892Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Tighten bolt 1, 2 and 3 temporarily to prevent dislocation. After that tighten them in order (1 --> 2 --> 3), and then tighten other bolts.
    1. : 7.9 N.m (0.81 kg-m, 70 in-lb)

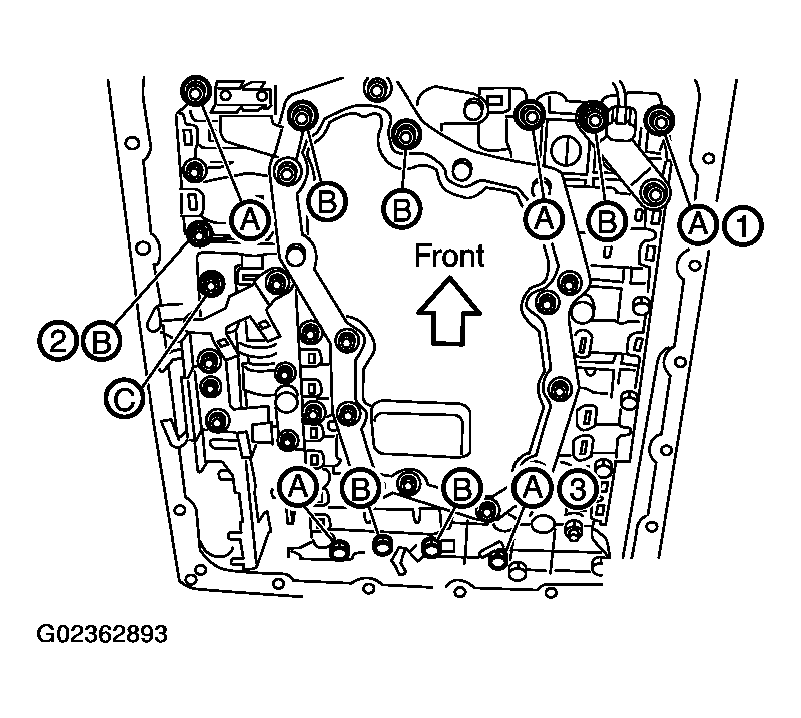

    Fig 10: Tightening Bolt
    G02362893Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Connect A/T fluid temperature sensor 2 connector.

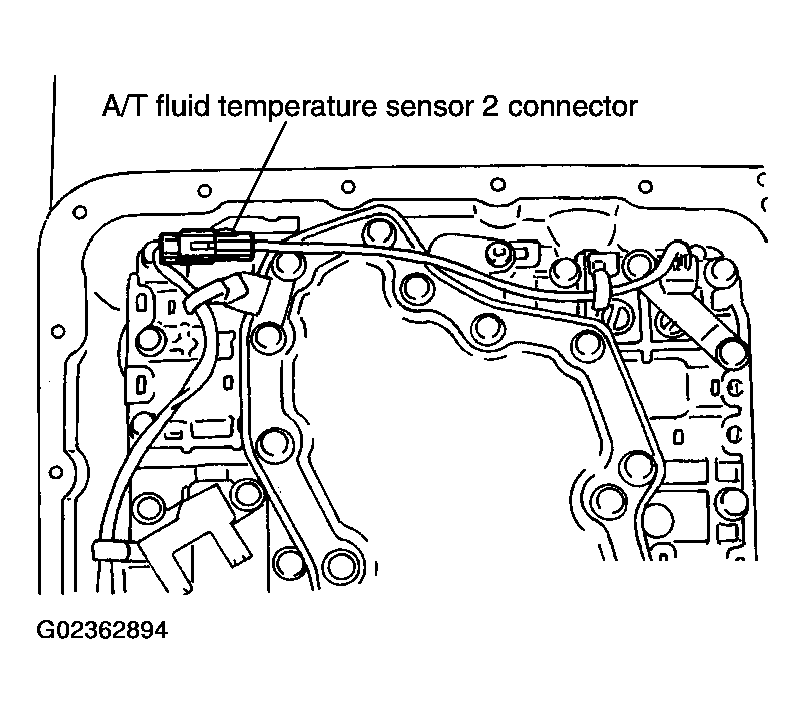

    Fig 11: Connecting A/T Fluid Temperature Sensor 2 Connector
    G02362894Courtesy of NISSAN MOTOR CO., U.S.A.

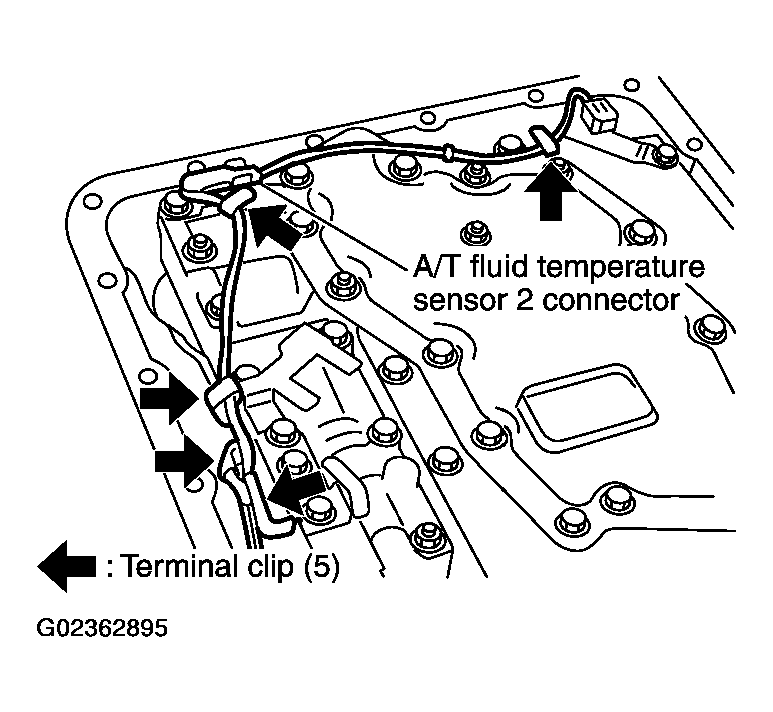

  11. Securely fasten terminal cord assembly and A/T fluid temperature sensor 2 harness with terminal clips.
    Fig 12: Securely Fastening Terminal Cord Assembly And A/T Fluid Temperature Sensor
    G02362895Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Connect revolution sensor connector.
    Fig 13: Connecting Revolution Sensor Connector
    G02362896Courtesy of NISSAN MOTOR CO., U.S.A.

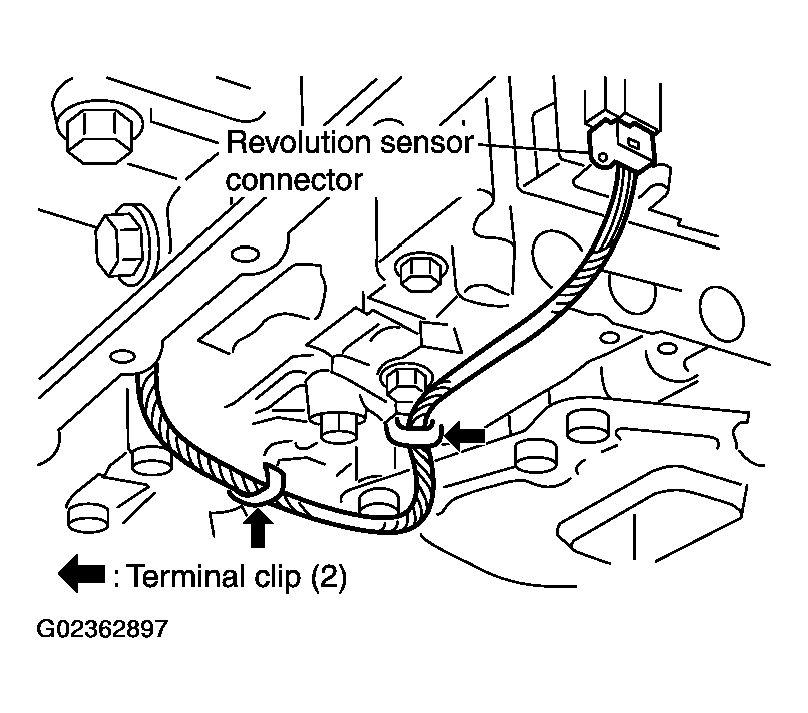

  13. Securely fasten revolution sensor harness with terminal clips.
    Fig 14: Locating Revolution Sensor Connector
    G02362897Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Install magnets in oil pan.

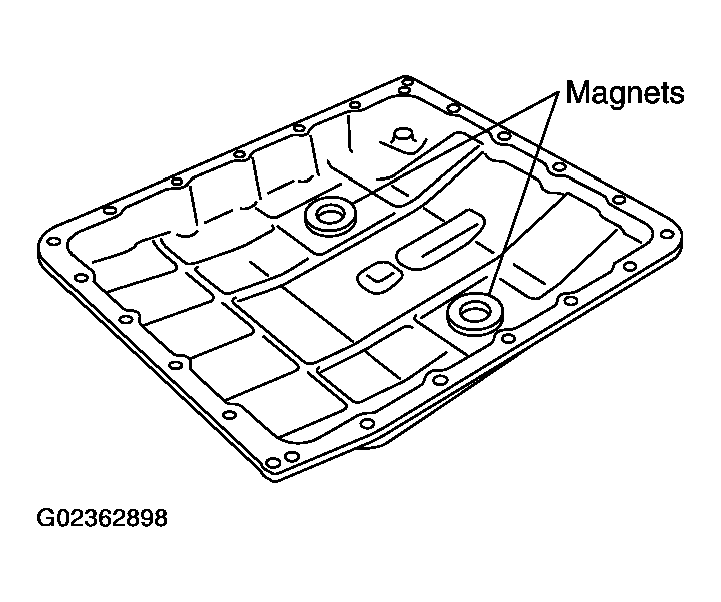

    Fig 15: Installing Magnets In Oil Pan
    G02362898Courtesy of NISSAN MOTOR CO., U.S.A.
  15. Install oil pan to transmission case.
    1. Install oil pan gasket to oil pan.
      CAUTION:
      • Do not reuse oil pan gasket.
      • Install it in the direction to align hole positions.
      • Completely remove all moisture, oil and old gasket, etc. from oil pan gasket mounting surface.
    2. Install oil pan (with oil pan gasket) to transmission case.
      CAUTION:
      • Install it so that drain plug comes to the position as shown in the figure.
      • Be careful not to pinch harnesses.
      • Completely remove all moisture, oil and old gasket, etc. from oil pan mounting surface.

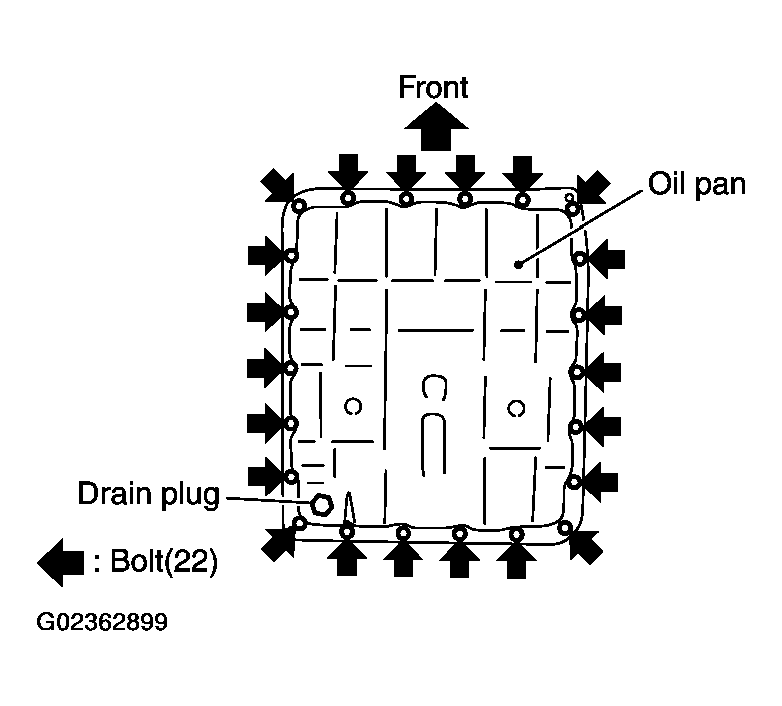

      Fig 16: Installing Oil Pan To Transmission Case
      G02362899Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Tighten oil pan mounting bolts to the specified torque in numerical order shown in the figure after temporarily tightening them.
      CAUTION: Do not reuse oil pan mounting bolts.
      1. : 7.9 N.m (0.81 kg-m, 70 in-lb)
  16. Install drain plug to oil pan.
    CAUTION: Do not reuse drain plug gasket.
    1. : 34 N.m (3.5 kg-m, 25 ft-lb)

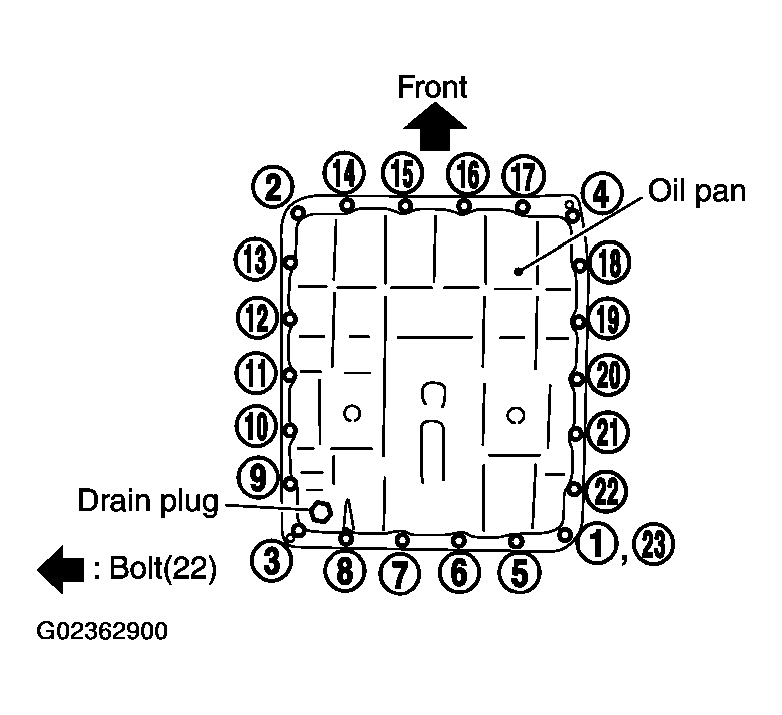

    Fig 17: Identifying Bolt Tightening Sequence
    G02362900Courtesy of NISSAN MOTOR CO., U.S.A.

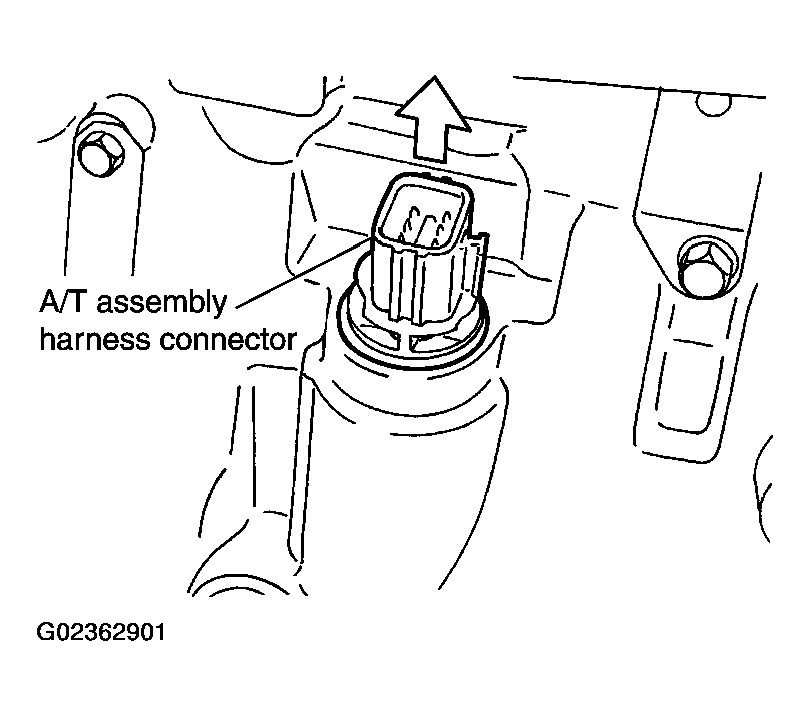

  17. Pull up A/T assembly harness connector.
    CAUTION: Be careful not to damage connector.
    Fig 18: Pulling A/T Assembly Harness Connector
    G02362901Courtesy of NISSAN MOTOR CO., U.S.A.

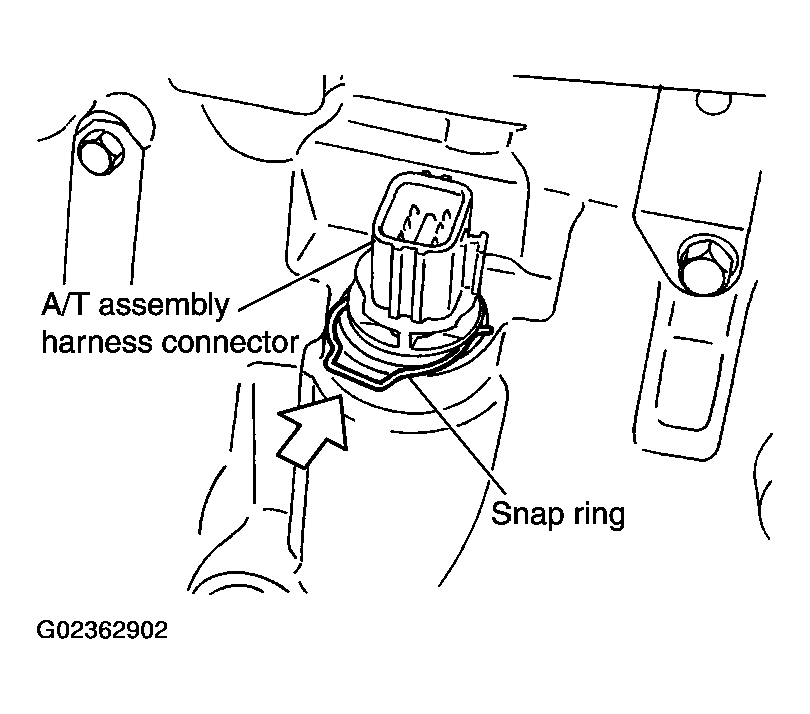

  18. Install snap ring to A/T assembly harness connector.
  19. Connect A/T assembly harness connector.
  20. Connect heated oxygen sensor 2 harness connector.
  21. Install front cross bar. Refer to "COMPONENTS ".
  22. Pour ATF into transmission assembly. Refer to "CHANGING A/T FLUID ".
  23. Connect the battery cable to the negative terminal.
    Fig 19: Installing Snap Ring To A/T Assembly Harness Connector
    G02362902Courtesy of NISSAN MOTOR CO., U.S.A.
