Operation Procedure

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

Perform "CONSULT-II SETTING PROCEDURE". Refer to "CONSULT-II SETTING PROCEDURE ".
Touch "DTC WORK SUPPORT".

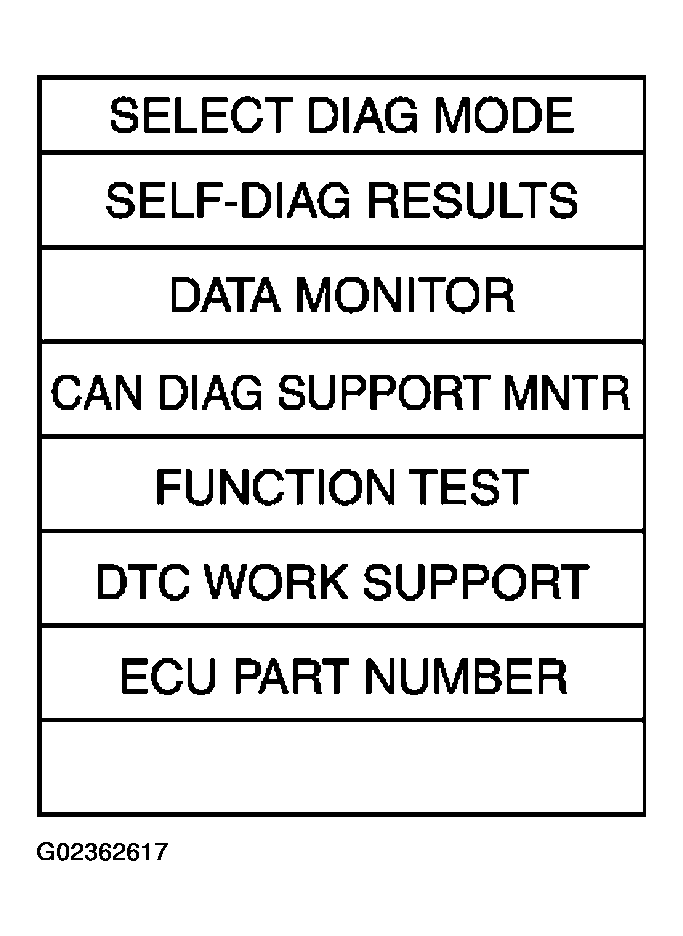

Fig 1: Identifying Display - Select Diag Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch select item menu.

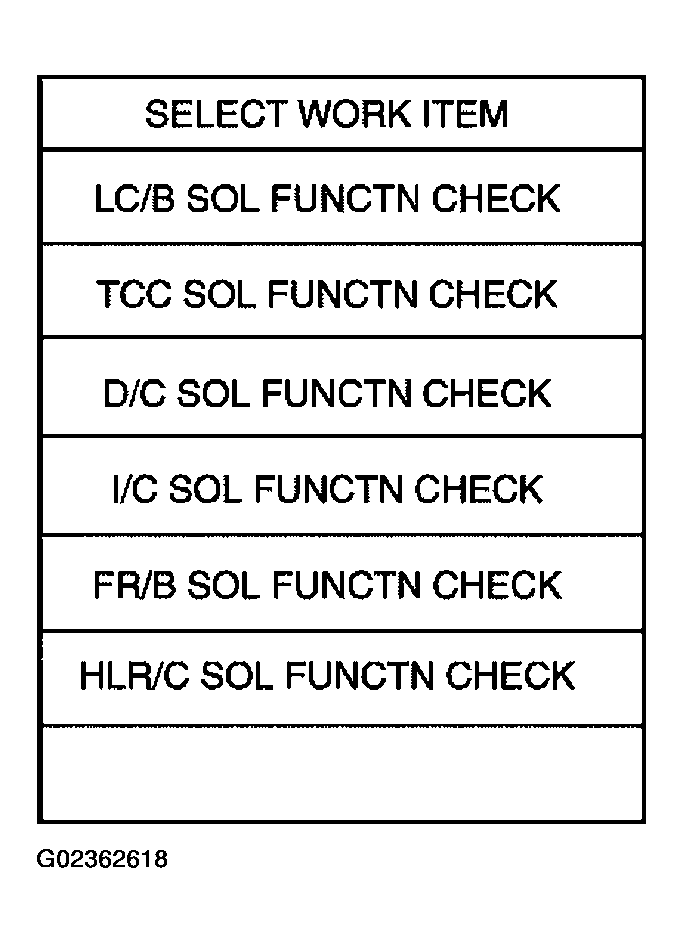

Fig 2: Identifying Display - Select Work Item
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START".

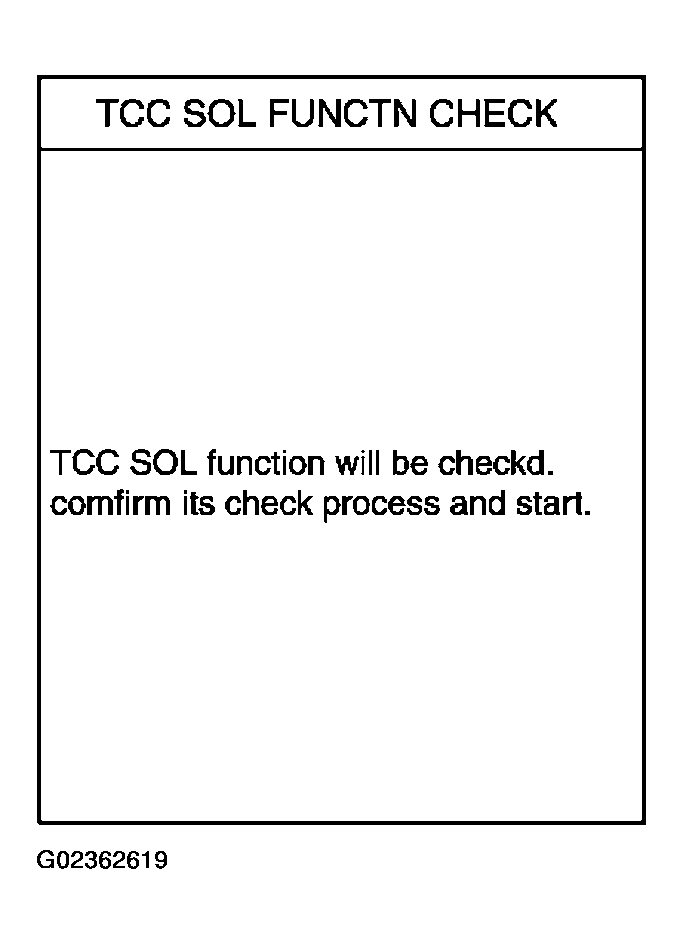

Fig 3: Identifying Display - Start
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform driving test according to "DTC Confirmation Procedure" in "TROUBLE DIAGNOSIS FOR DTC".

Fig 4: Identifying Display - Trouble Diagnosis For DTC
Courtesy of NISSAN MOTOR CO., U.S.A.
- When testing conditions are satisfied, CONSULT-II screen changes from "OUT OF CONDITION" to "TESTING".

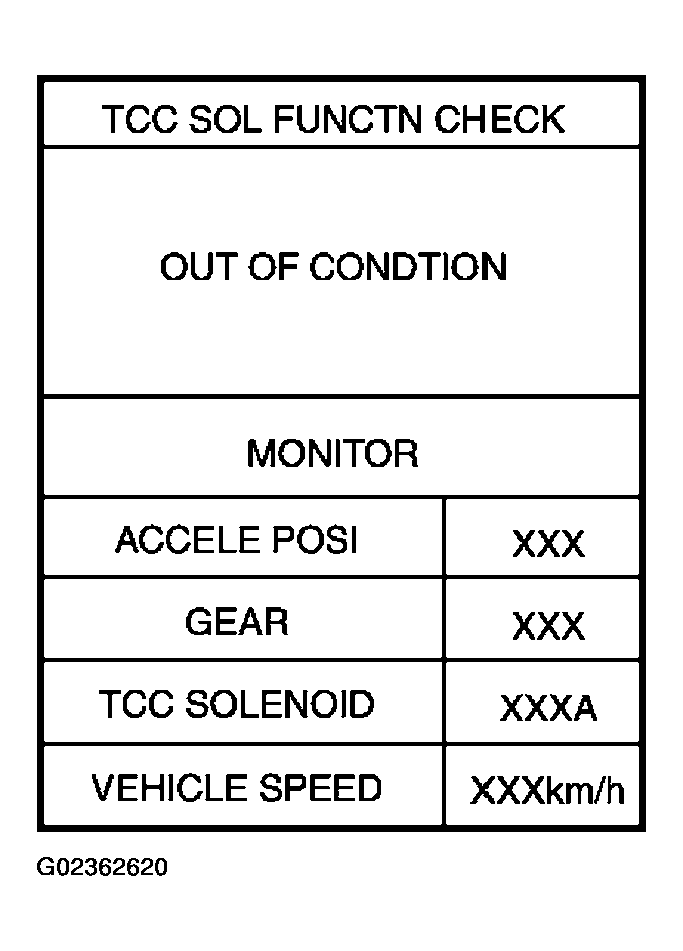

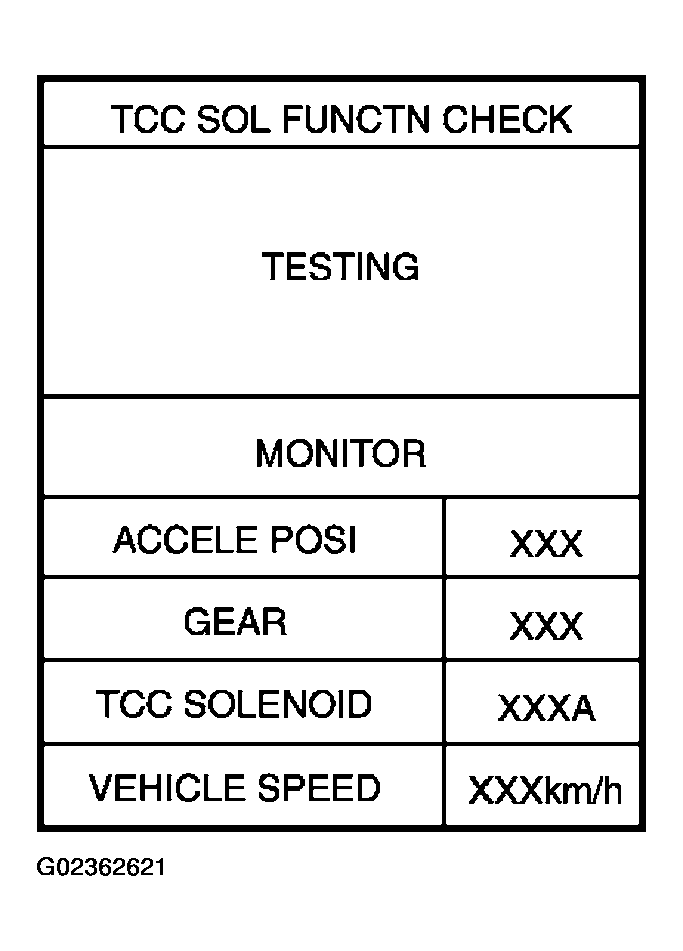

Fig 5: Identifying Display - TCC SOL Function Check
Courtesy of NISSAN MOTOR CO., U.S.A.
Stop vehicle.

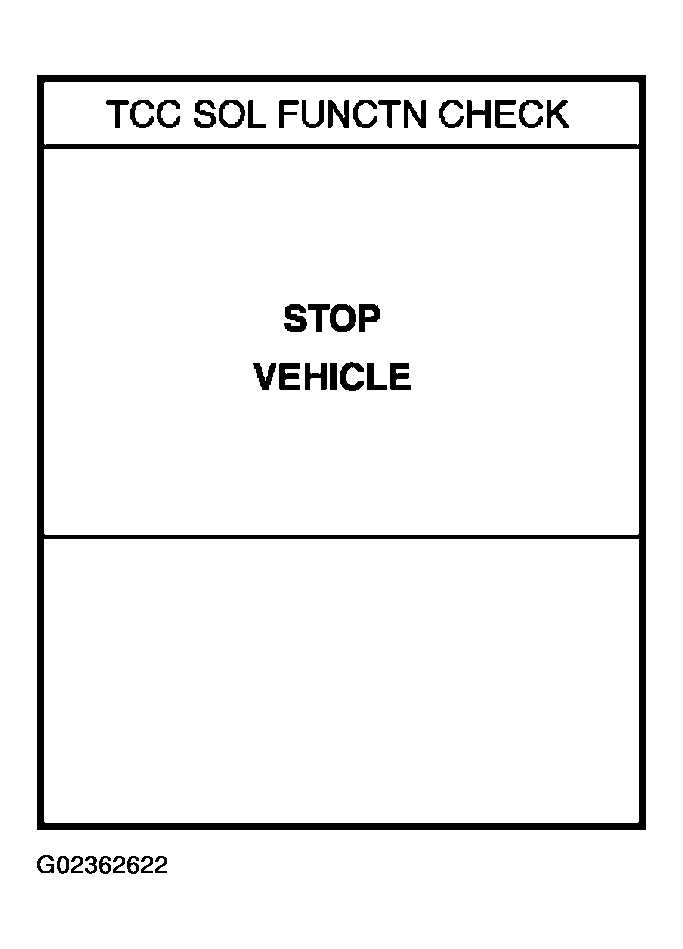

Fig 6: Identifying Display - Stop Vehicle
Courtesy of NISSAN MOTOR CO., U.S.A.
- If "NG" appears on the screen, malfunction may exit. Go to " DIAGNOSTIC PROCEDURE "

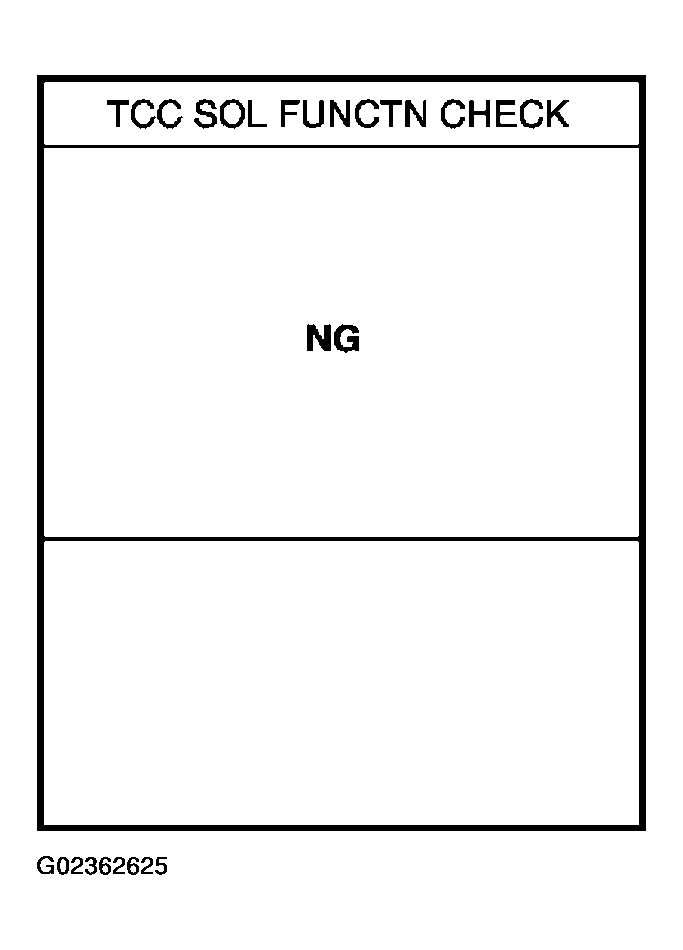

Fig 7: Identifying Display - NG
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform test drive to check gear shift feeling in accordance with instructions displayed.
Touch "YES" or "NO".
CONSULT-II procedure is ended.

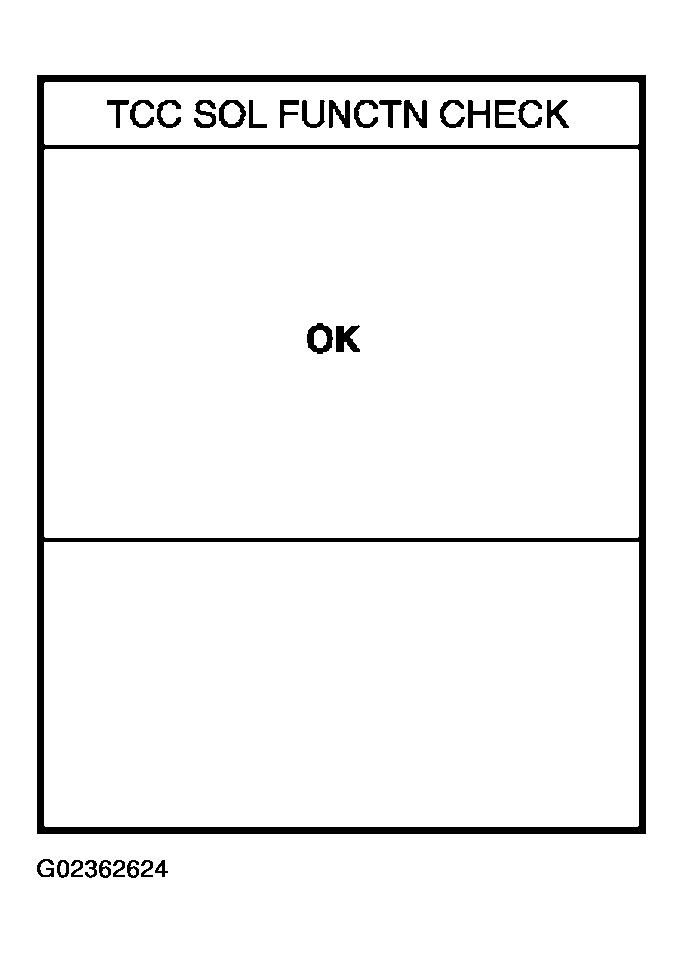

Fig 8: Identifying Display - OK
Courtesy of NISSAN MOTOR CO., U.S.A.
- If "NG" appears on the screen, a malfunction may exit. Go to " DIAGNOSTIC PROCEDURE "
Fig 9: Identifying Display - NG
Courtesy of NISSAN MOTOR CO., U.S.A.
