Back Door Lock & Closure Assembly

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Be sure to remove or install the back door closure motor with the back door lock & closure assembly.
  1. Remove the back door closure motor.

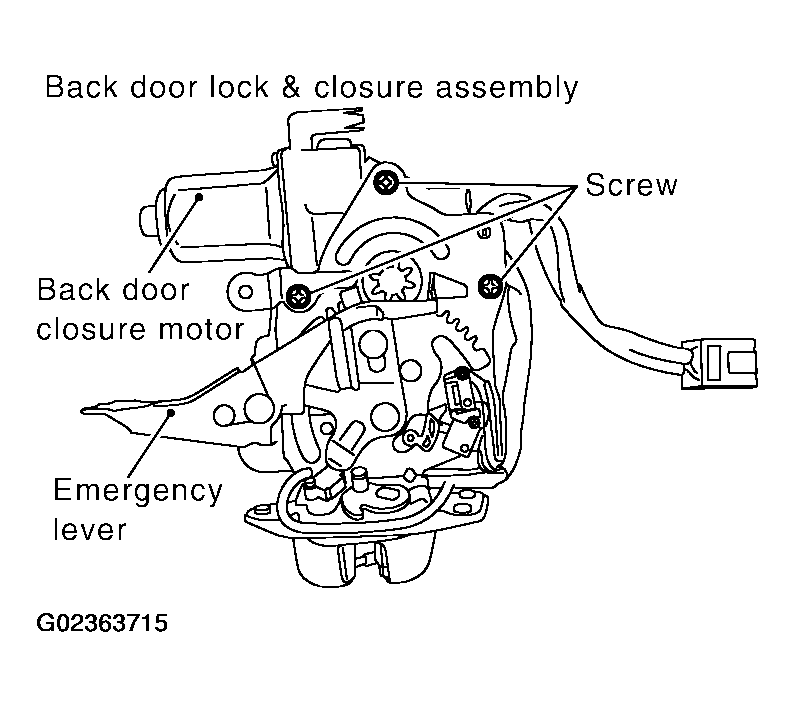

    Fig 1: Removing Back Door Closure Motor
    G02363715Courtesy of NISSAN MOTOR CO., U.S.A.
