Warning Chime Function Malfunction

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

Before conducting the diagnosis in the following table, check "key reminder function" with power door lock system.

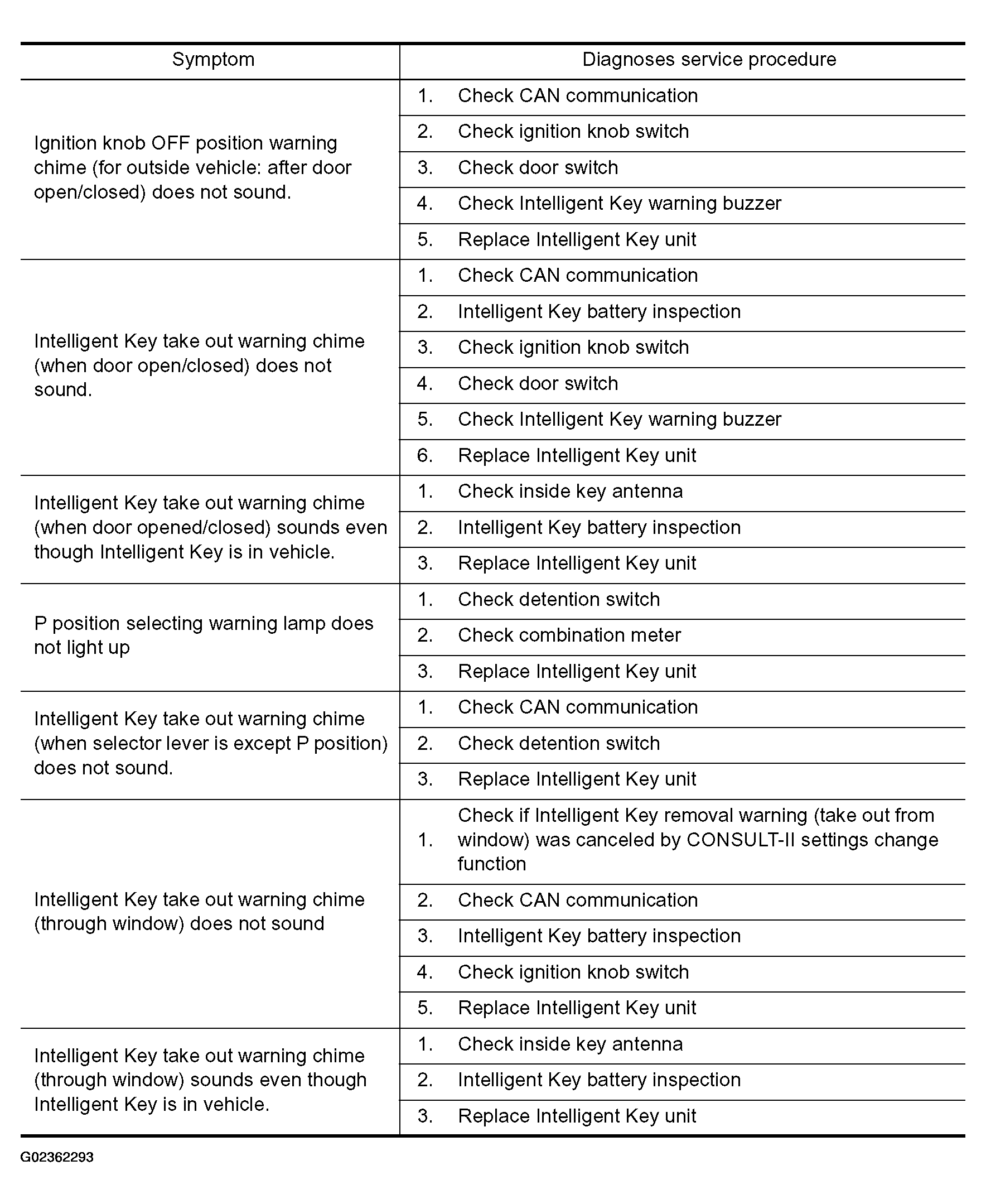

Fig 1: Warning Chime Function Malfunction (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

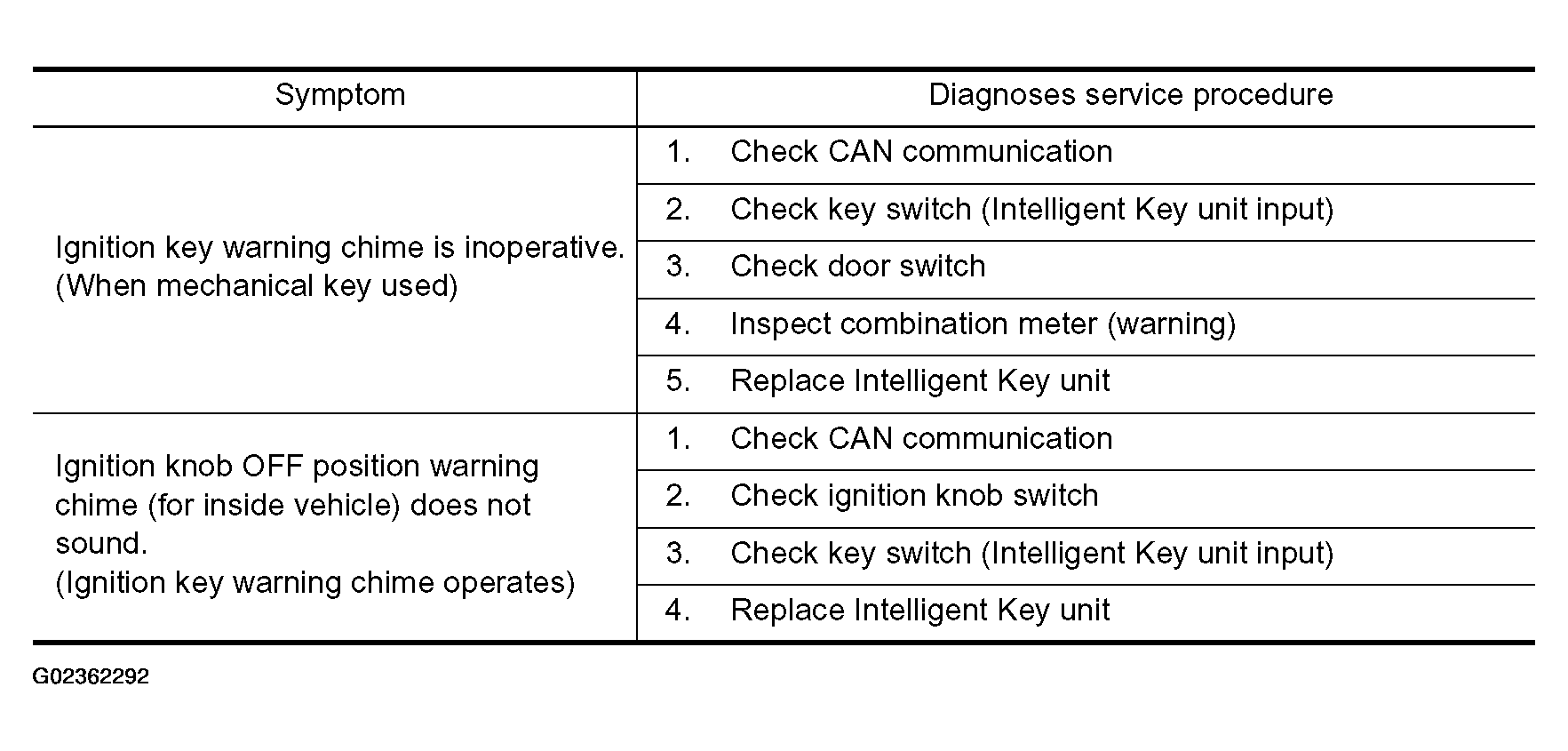

Fig 2: Warning Chime Function Malfunction (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

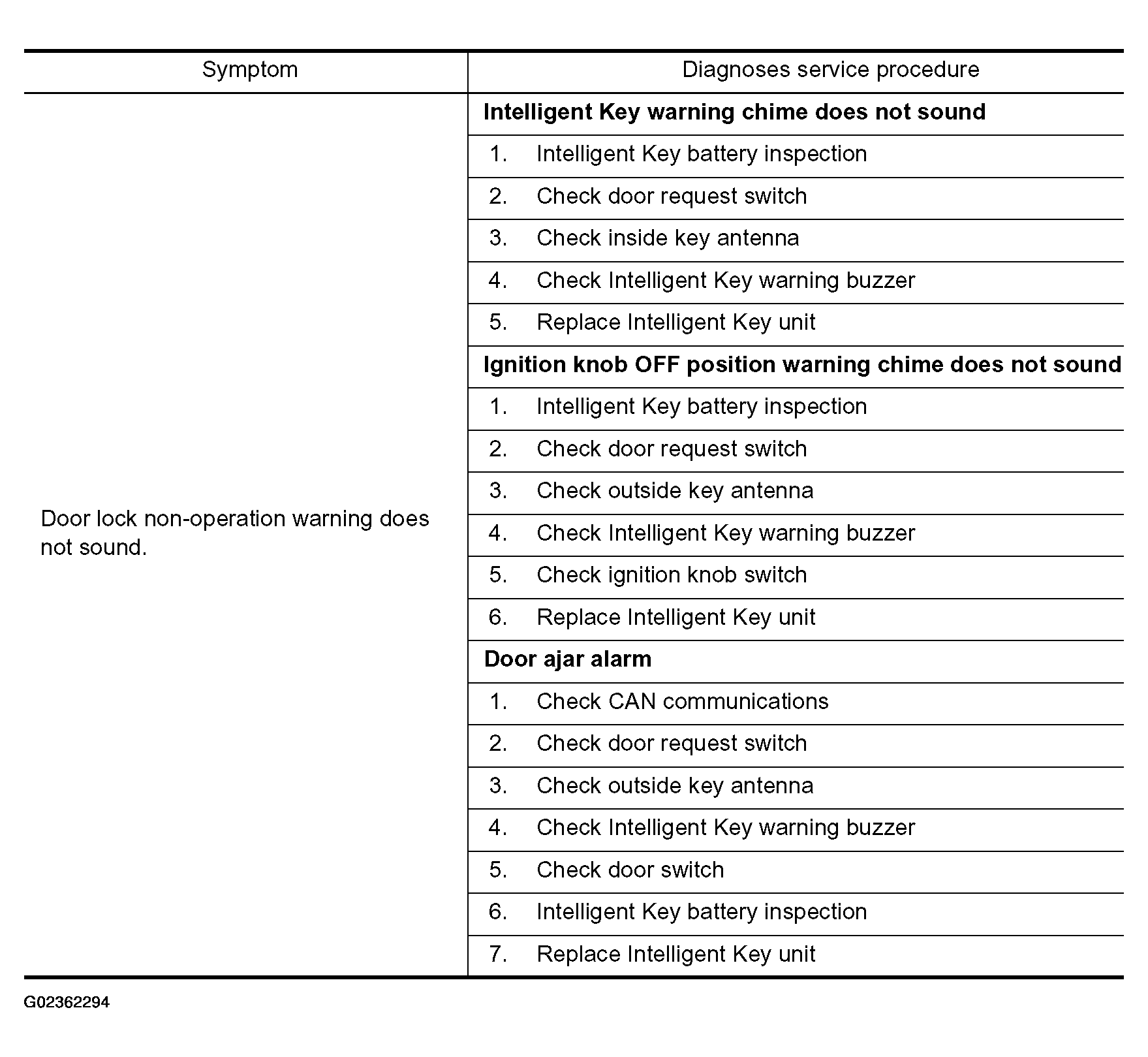

Fig 3: Warning Chime Function Malfunction (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
