Removal and Installation of Remote keyless Entry receiver: Removal

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

Remove the instrument passenger lower panel. Refer to "INSTRUMENT PASSENGER LOWER PANEL ".
Disconnect remote keyless entry receiver harness connector, remove screw and remote keyless entry receiver.

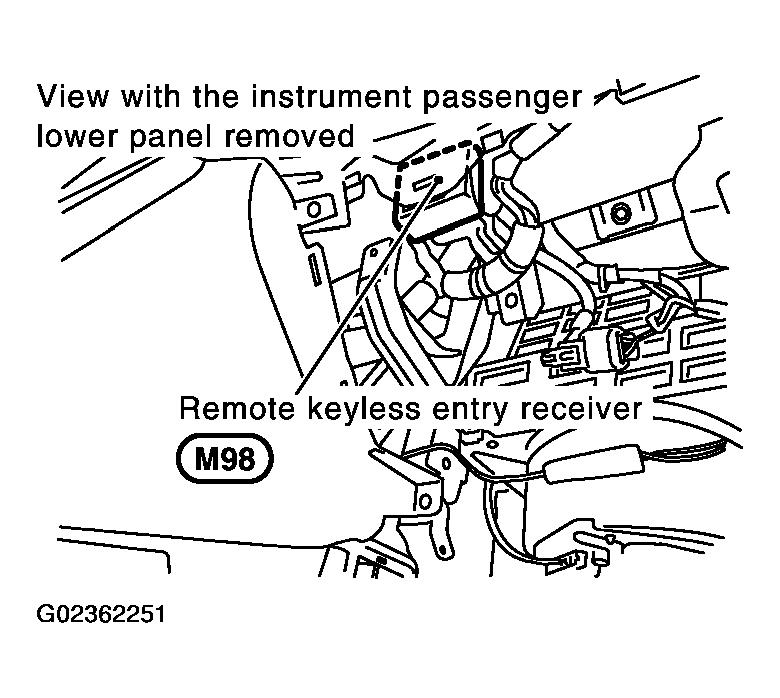

Fig 1: Disconnecting Remote Keyless Entry Receiver Harness Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
