Terminals and Reference Value for BOSE Speaker Amp.
WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

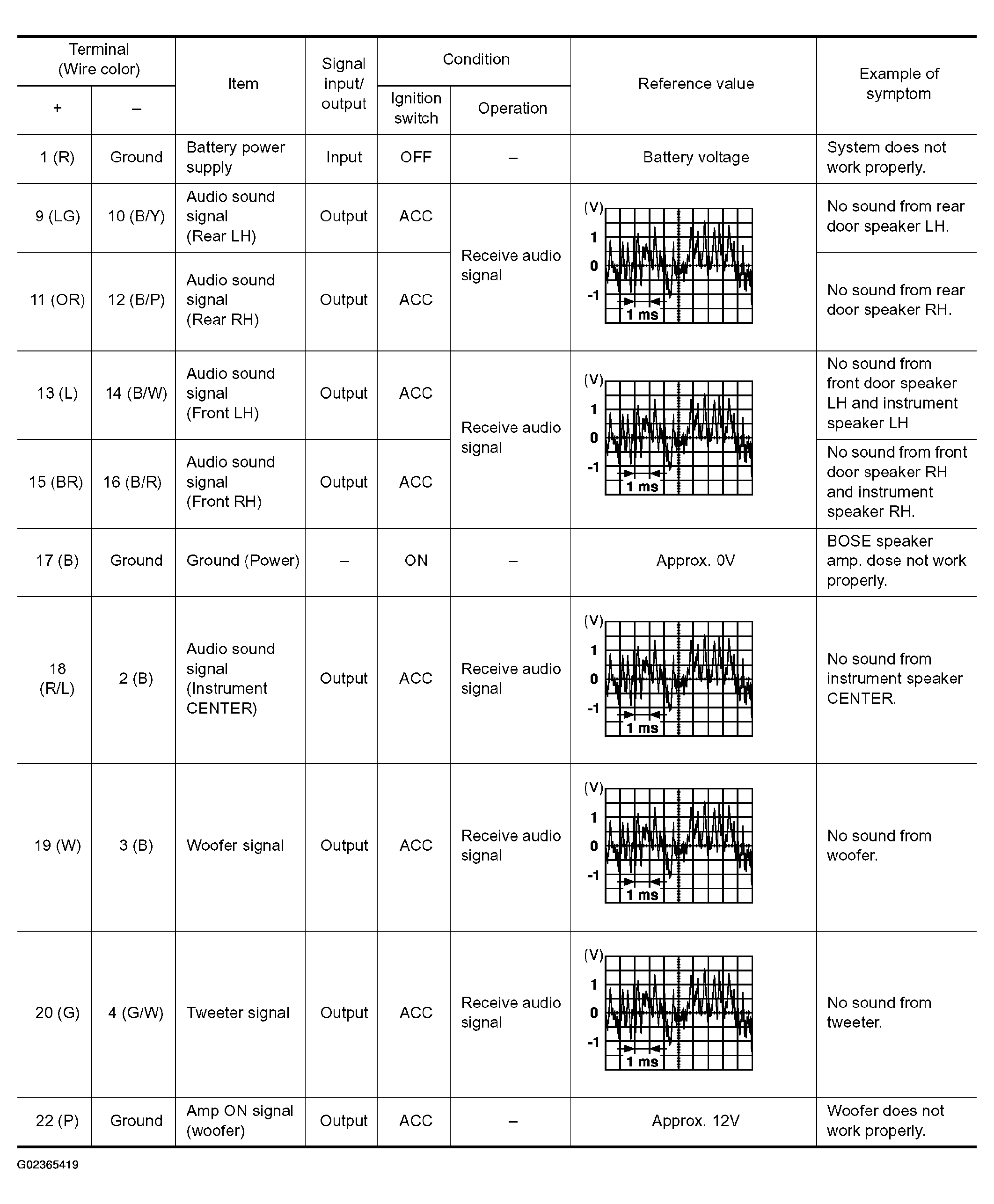

Fig 1: Terminals Reference Value For BOSE Speaker Amp (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

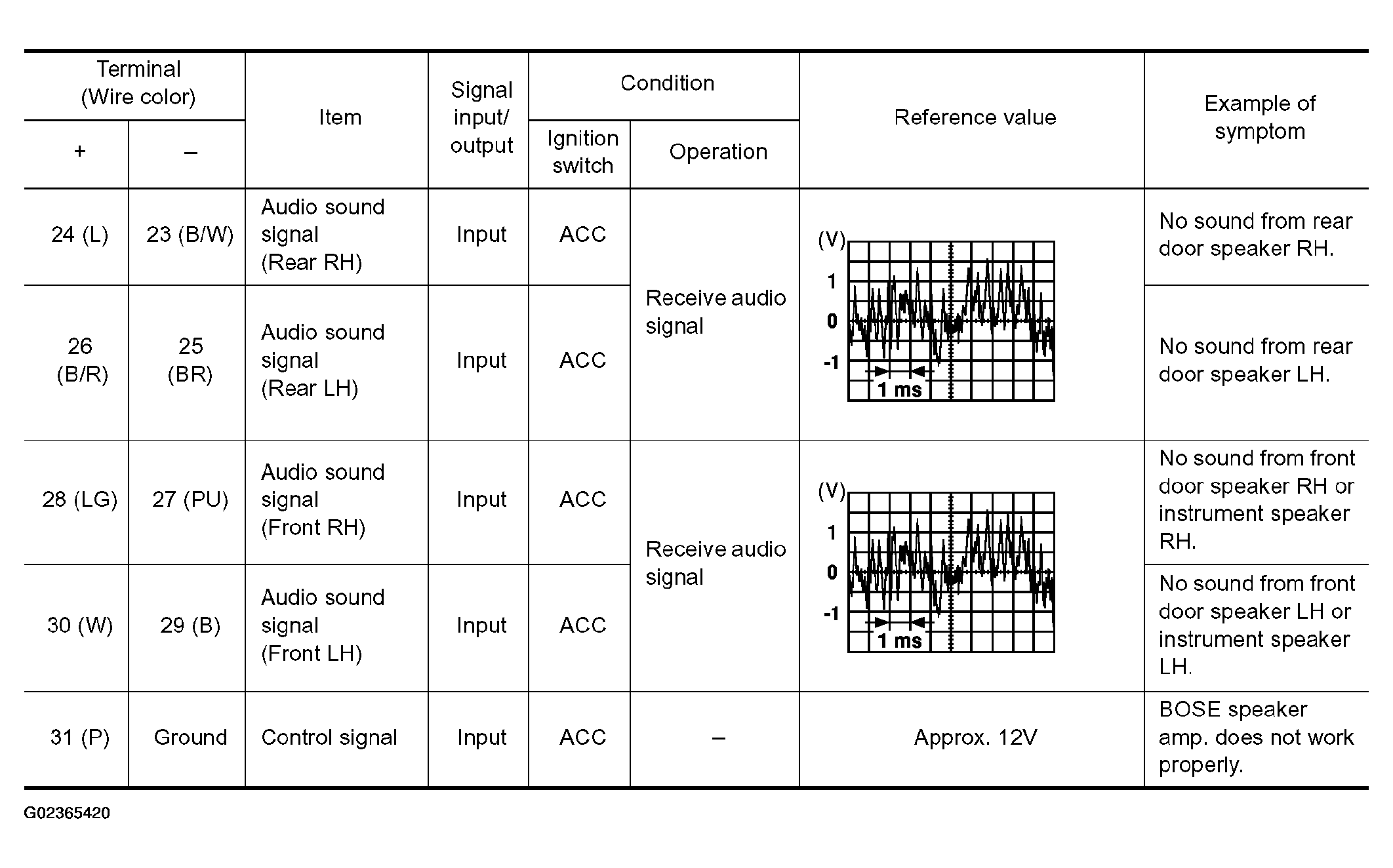

Fig 2: Terminals Reference Value For BOSE Speaker Amp (2 Of 2)
