Power Supply and Ground Circuit Check for Display Control Unit

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FUSE
Make sure the following fuses of the display control unit are not blown.

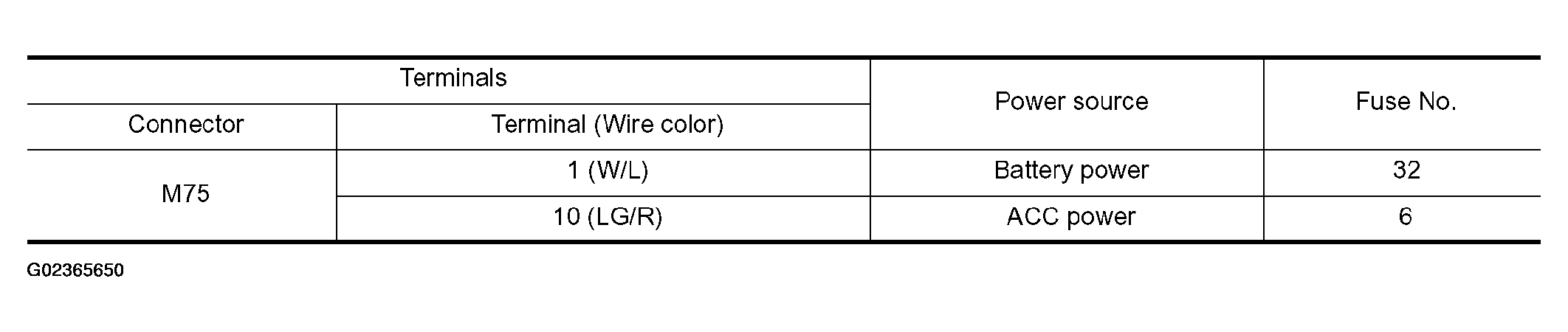

Fig 1: Terminal Fuse Specification
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK : GO TO 2.
2. NG : If fuse is blown, be sure to eliminate case of malfunction before installing new fuse. Refer to "POWER SUPPLY ROUTING CIRCUIT ".
CHECK POWER SUPPLY CIRCUIT
Check voltage between connector terminals and ground as follows.

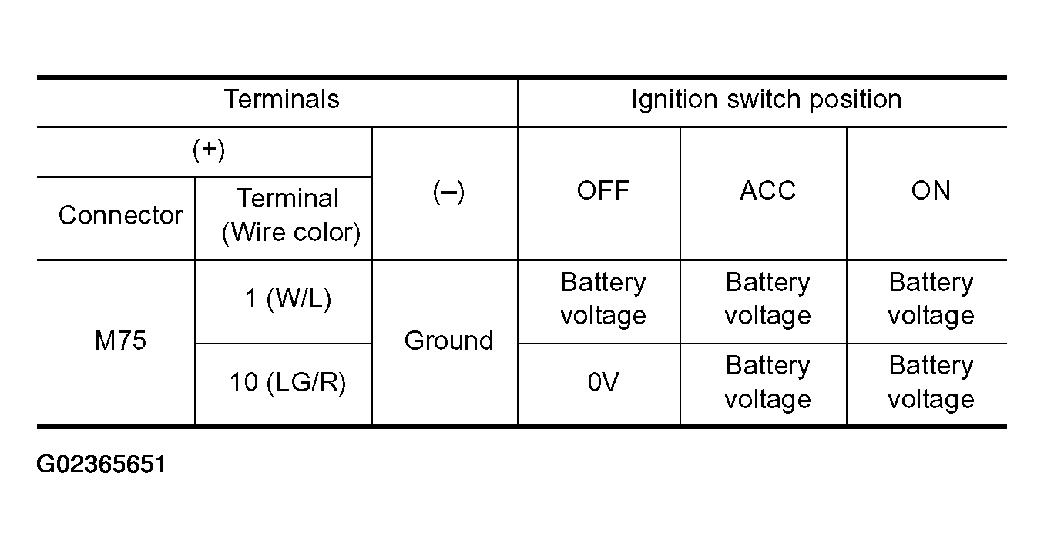

Fig 2: Terminal Switch Position Specification
Courtesy of NISSAN MOTOR CO., U.S.A.

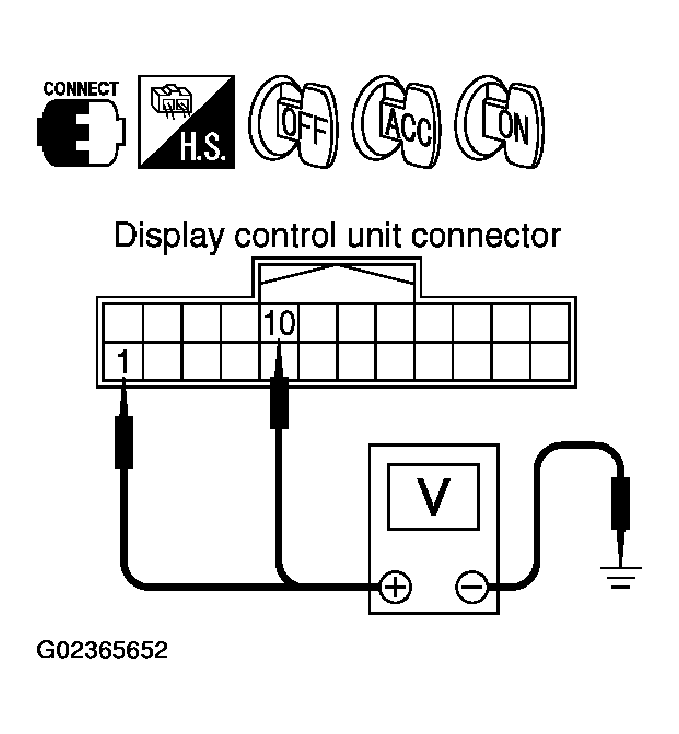

Fig 3: Checking Voltage Between Connector Terminals And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK : GO TO 3.
2. NG : Check harness for open or short between display control unit and fuse.
CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect display control unit connector.
3. Check continuity between the following display control unit and ground.

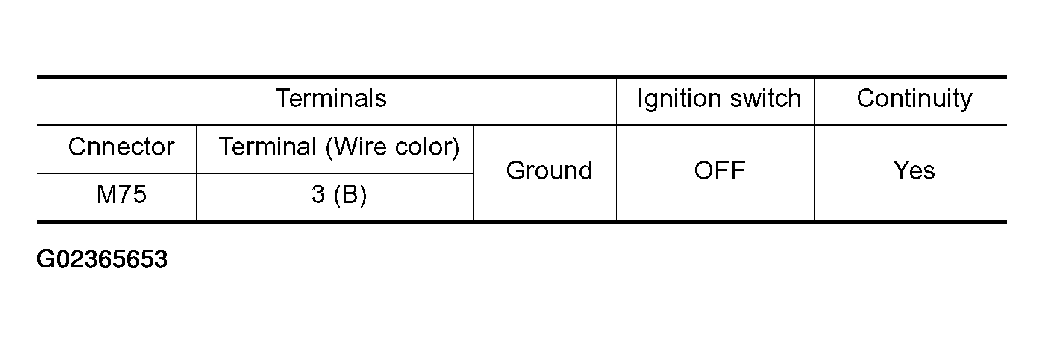

Fig 4: Terminal Continuity Specification
Courtesy of NISSAN MOTOR CO., U.S.A.

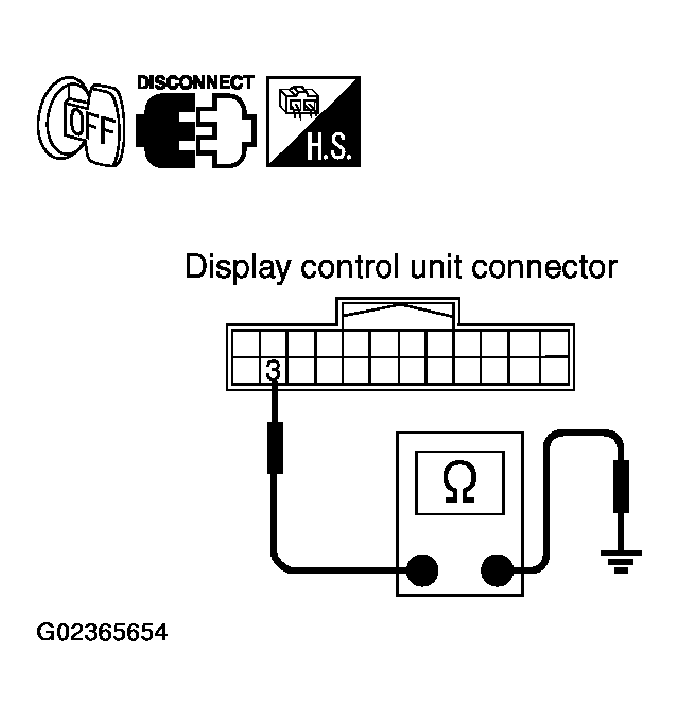

Fig 5: Checking Continuity
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK : INSPECTION END
2. NG : Repair harness or connector.
