RGB Screen Is Rolling (Excepting NAVI Screen)

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect display control unit connector and display connector.

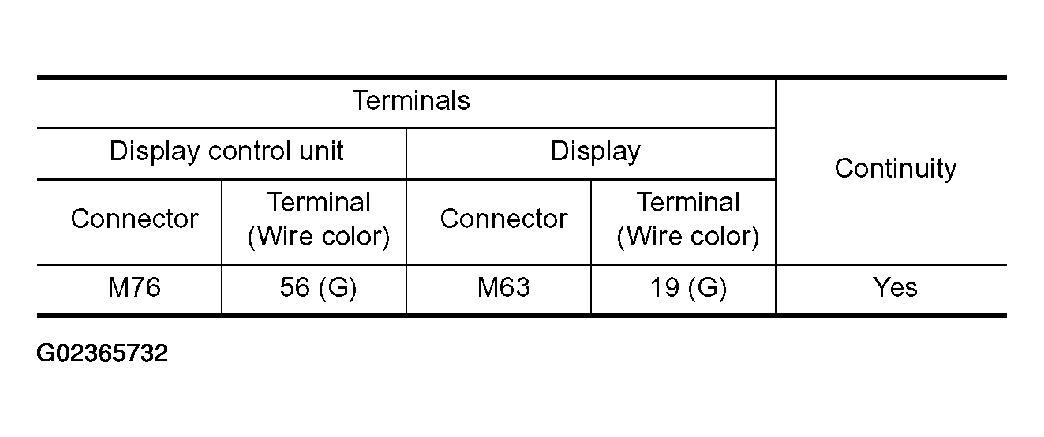

3. Check continuity between display control unit and display.

  Fig 1: Terminal Continuity Specification
  Courtesy of NISSAN MOTOR CO., U.S.A.

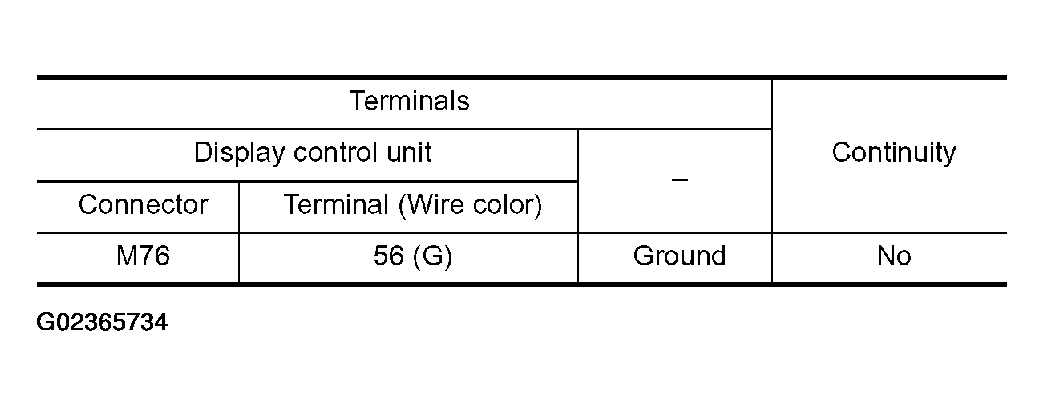

4. Check continuity between display control unit and ground.

  Fig 2: Terminal Continuity Specification
  Courtesy of NISSAN MOTOR CO., U.S.A.

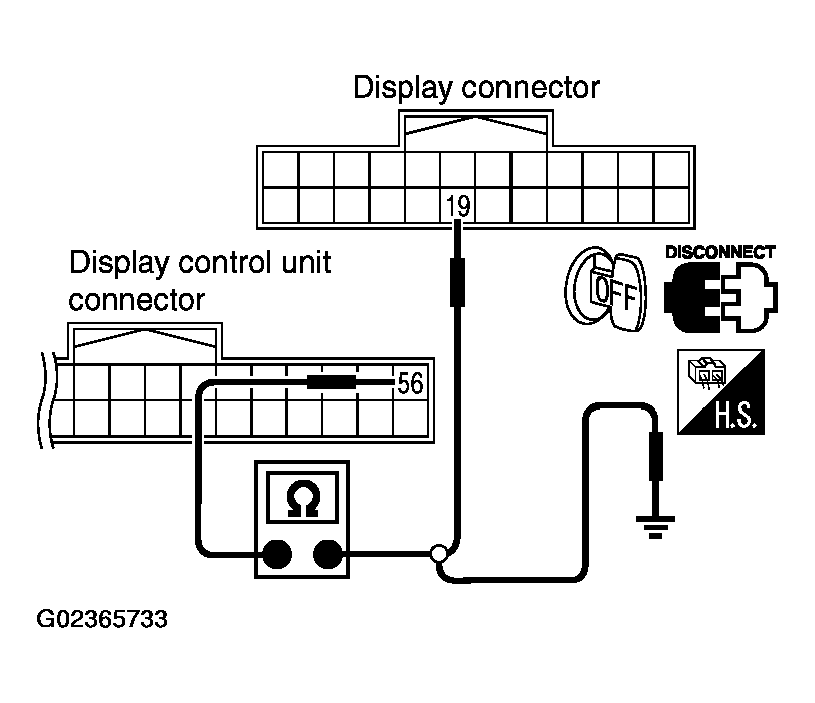

  Fig 3: Checking Continuity Between Display Control Unit And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
1. OK : GO TO 2.
2. NG : Repair harness or connector.
CHECK RGB SYNCHRONIZING SIGNAL
1. Connect display control unit connector and display connector.
2. Turn ignition switch ON.

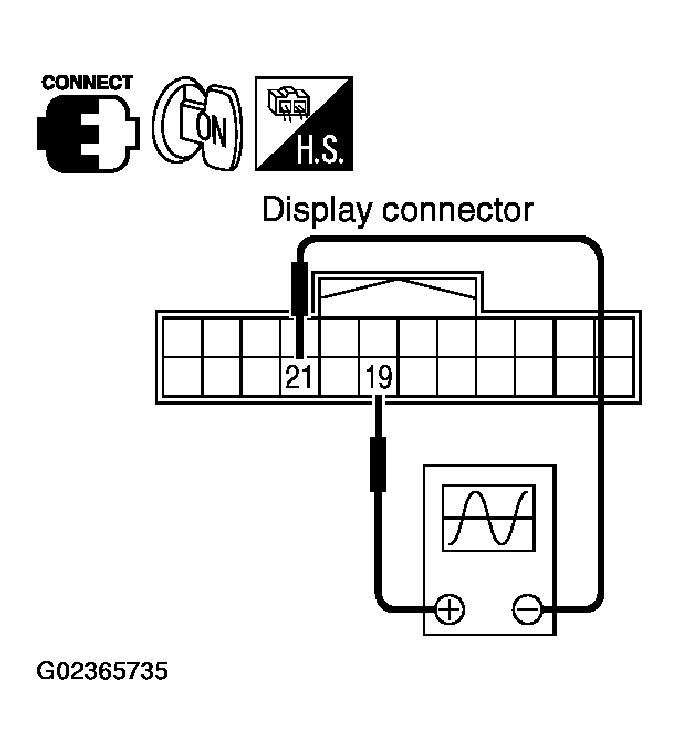

3. Check signal between display connector M63 terminals 19 (G) and 21 with CONSULT-II or oscilloscope.
  1. 19 (G) - 21 : Refer to " TERMINALS AND REFERENCE VALUE FOR DISPLAY ".
OK or NG
1. OK : Replace display.
2. NG : Replace display control unit.
Fig 4: Connecting Display Control Unit Connector And Display Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
