Removal and Installation of NAVI Control Unit: Removal

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove passenger side seat. Refer to "REMOVAL AND INSTALLATION "
  2. Remove clips (4), and remove NAVI control unit cover.

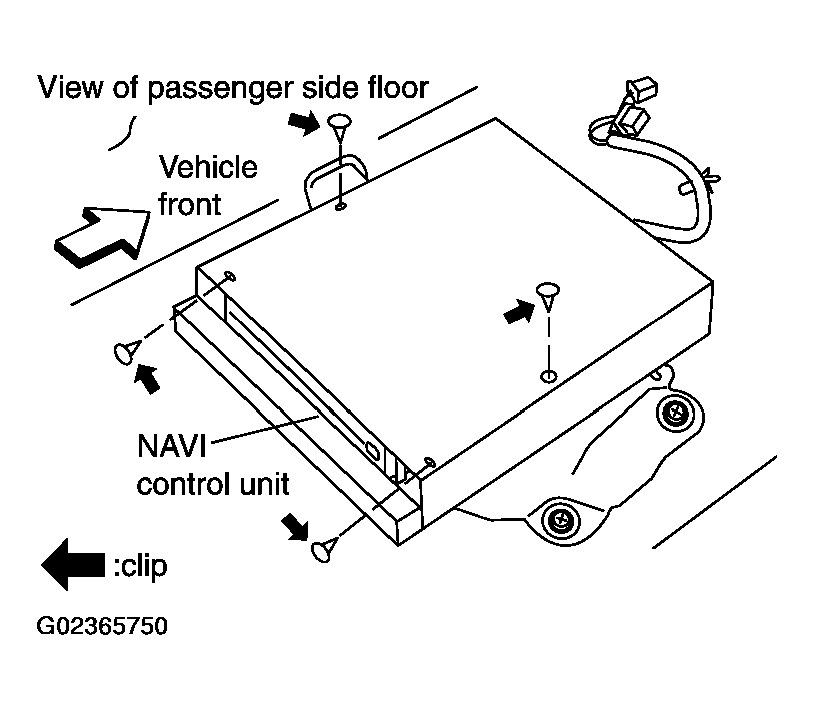

    Fig 1: Removing NAVI Control Unit Cover
    G02365750Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove screws (2) and nut (1) with power tool, and remove NAVI control unit.

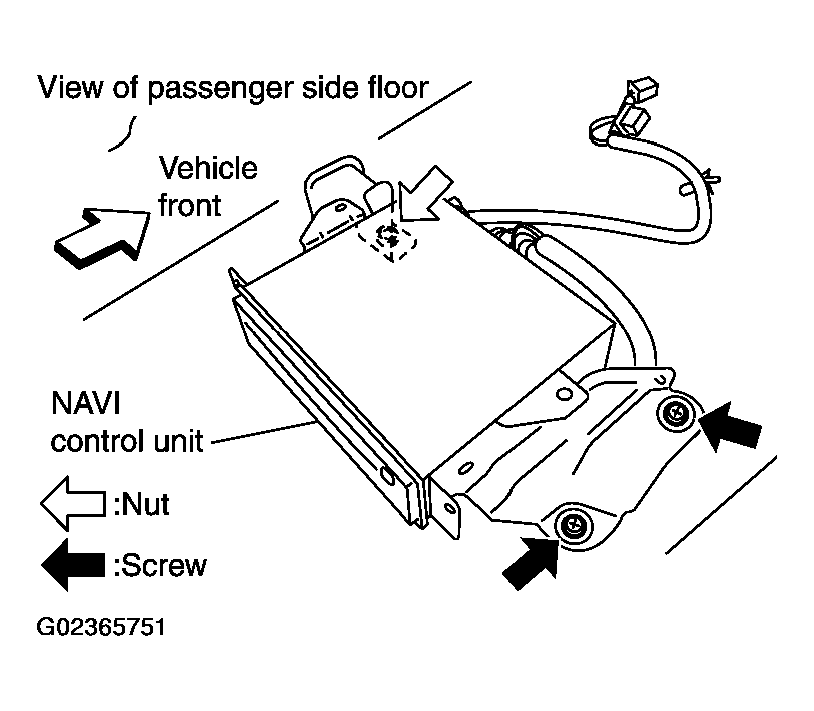

    Fig 2: Removing NAVI Control Unit
    G02365751Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove screws (4) with power tool and remove bracket.

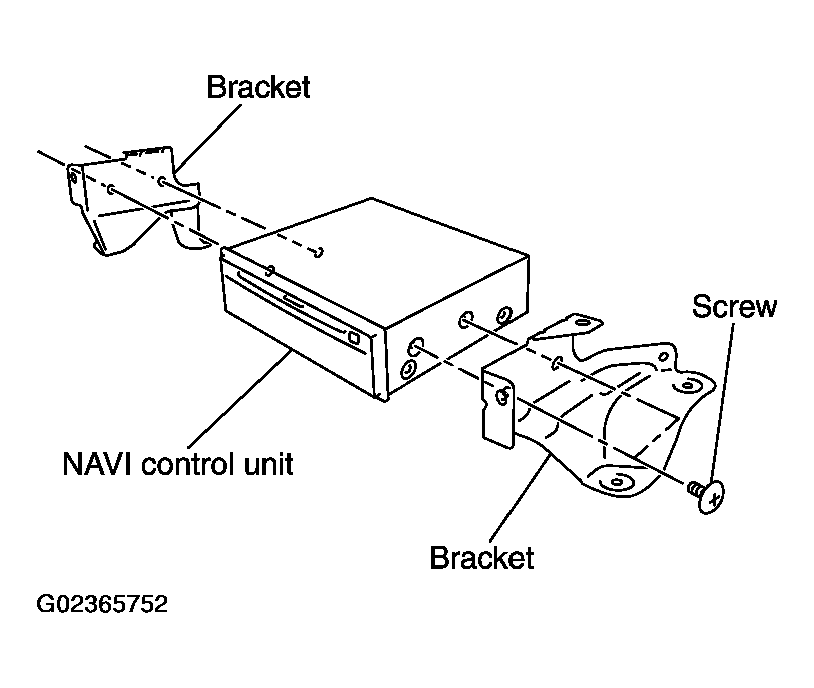

    Fig 3: Removing Screws With Power Tool
    G02365752Courtesy of NISSAN MOTOR CO., U.S.A.
