Quick Reference Table
WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

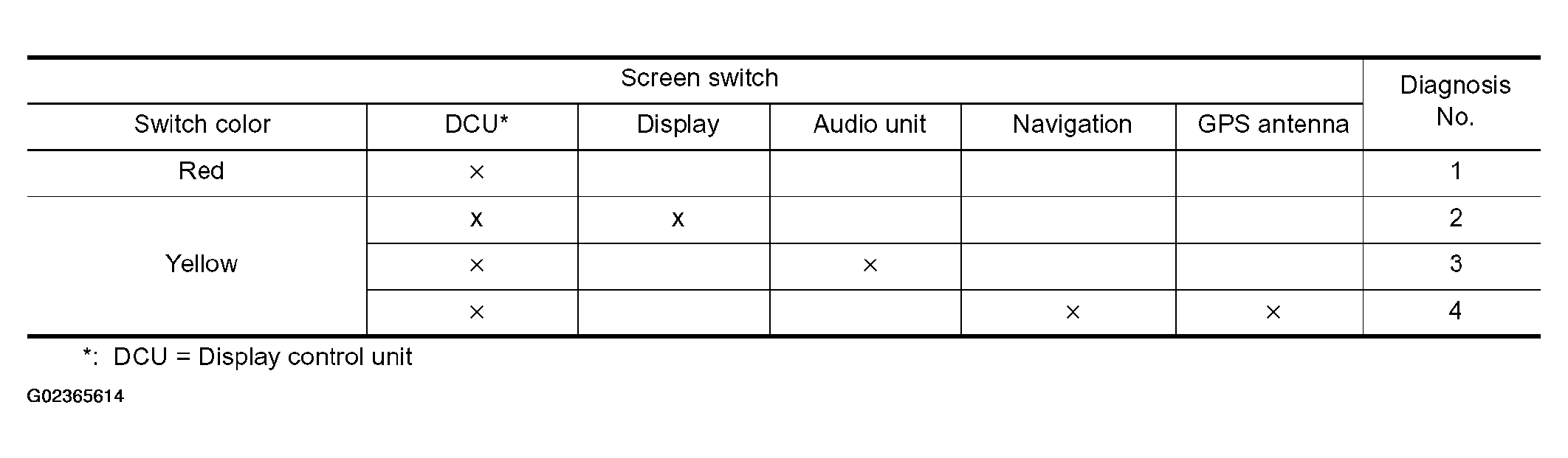

- Select an malfunctioning diagnosis No. in the diagnosis result quick reference table.
- Find estimated malfunctioning system in the diagnosis number table and perform check by referring to "WIRING DIAGRAM - COMM - ".
- Turn the ignition switch OFF and perform self-diagnosis again.
CAUTION:
- When A/C and AV switch has a malfunction, self-diagnosis cannot be started.
- When display has a malfunction, self-diagnosis cannot be started.
- Check the following when the self-diagnosis mode cannot be used.
- AV communication line between display control unit and A/C and AV switch. Refer to " AV COMMUNICATION LINE CHECK (BETWEEN DISPLAY CONTROL UNIT AND A/C AND AV SWITCH) ".
- A/C and AV switch power supply and ground circuit. Refer to " POWER SUPPLY AND GROUND CIRCUIT CHECK FOR A/C AND AV SWITCH ".
- Display power supply and ground circuit. Refer to " POWER SUPPLY AND GROUND CIRCUIT CHECK FOR DISPLAY ".
