System Description: BIRDVIEW(tm): Description

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

Display area: Trapezoidal representation showing approximate distances (Wn, D, and Wd).
Ten horizontal grid lines indicate display width while six vertical grid lines indicate display depth and direction.
Pushing the "ZOOM IN" button during operation displays the scale change and the view point height on the left side of the screen.
The height of the view point increases or decreases when "ZOOM" or "WIDE" is selected with the joystick.

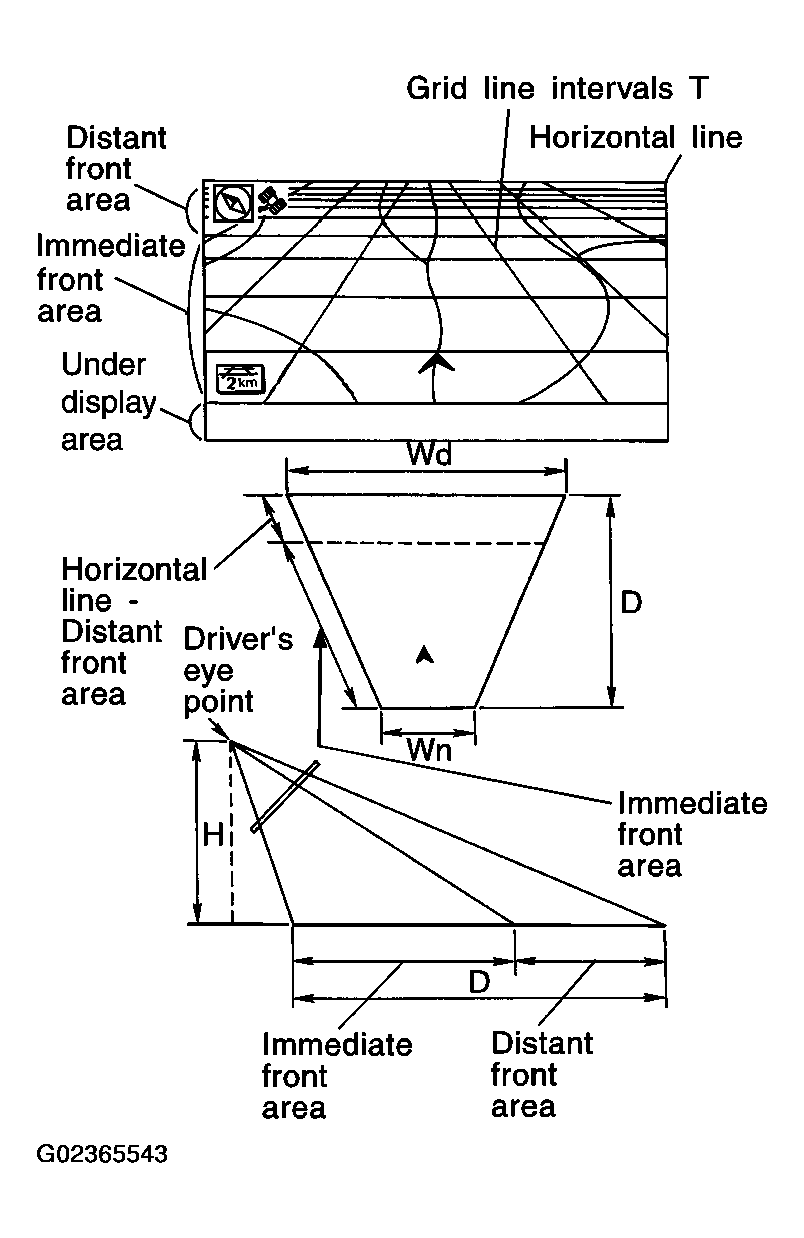

Fig 1: Identifying Display Area
Courtesy of NISSAN MOTOR CO., U.S.A.
