Wiring Diagram - KEYLESS- /For Roadster
WARNING:
This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

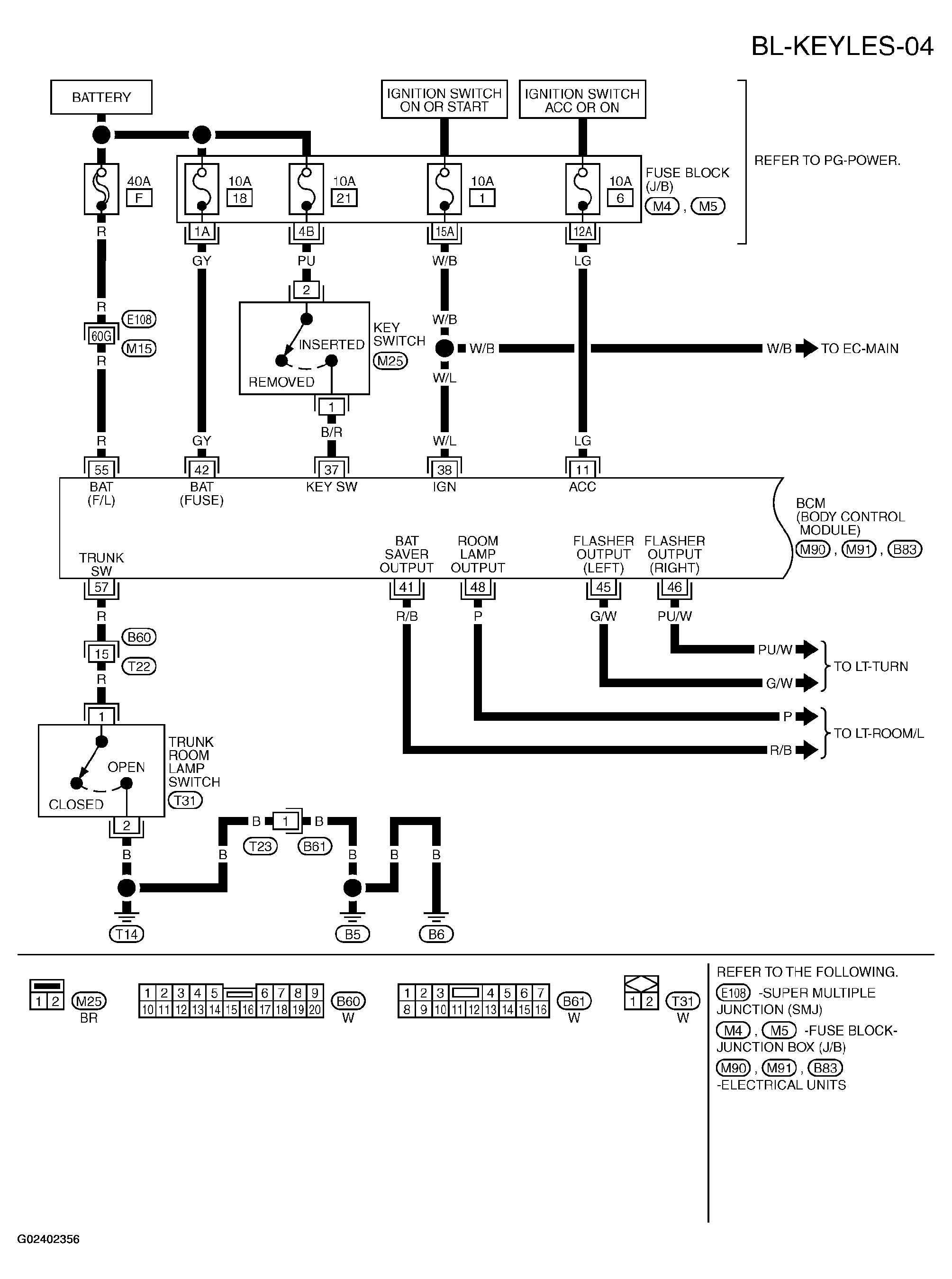

Fig 1: Wiring Diagram - KEYLESS- /For Roadster - BL-KEYLES-04
Courtesy of NISSAN MOTOR CO., U.S.A.

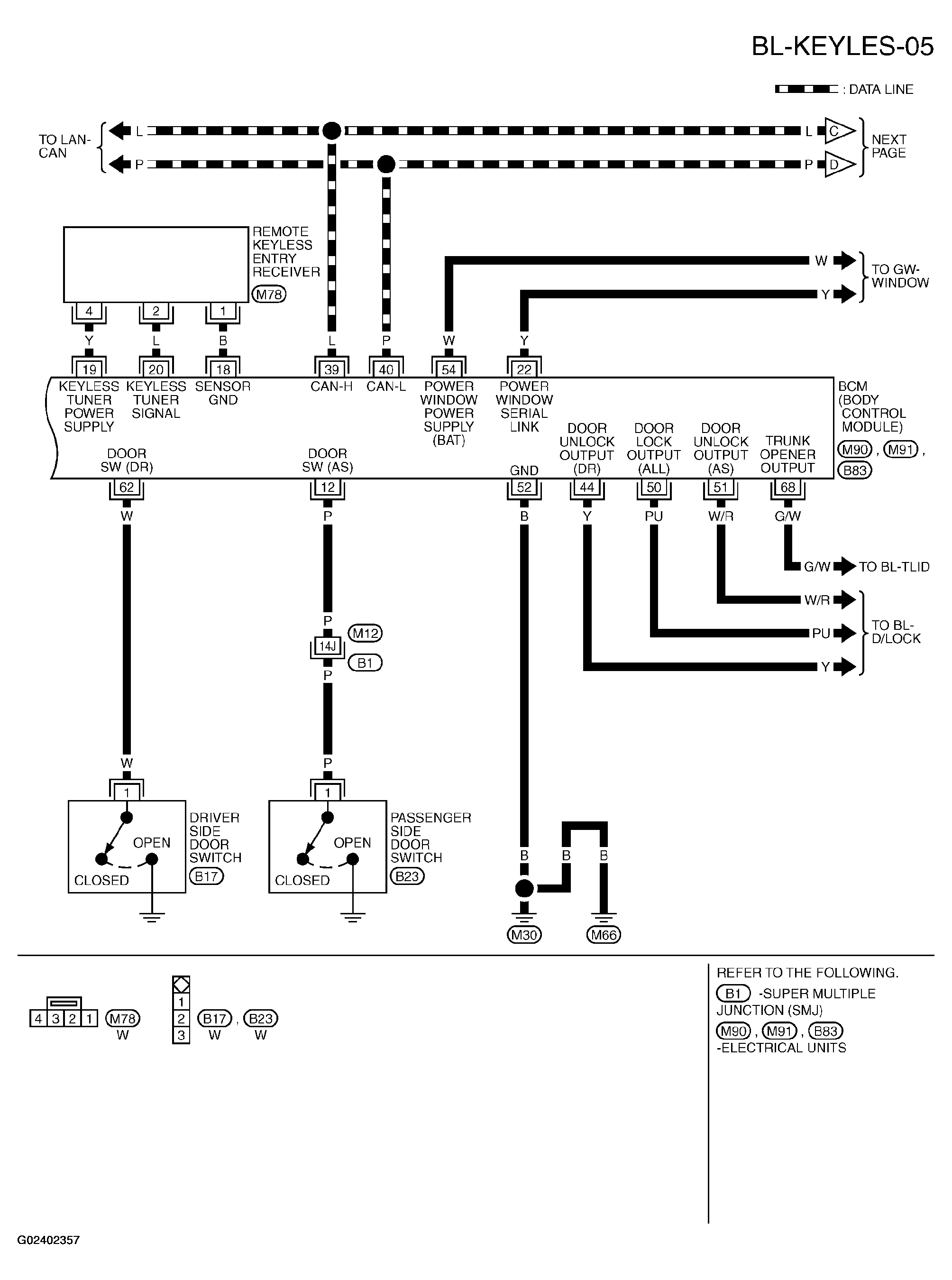

Fig 2: Wiring Diagram - KEYLESS- /For Roadster - BL-KEYLES-05
Courtesy of NISSAN MOTOR CO., U.S.A.

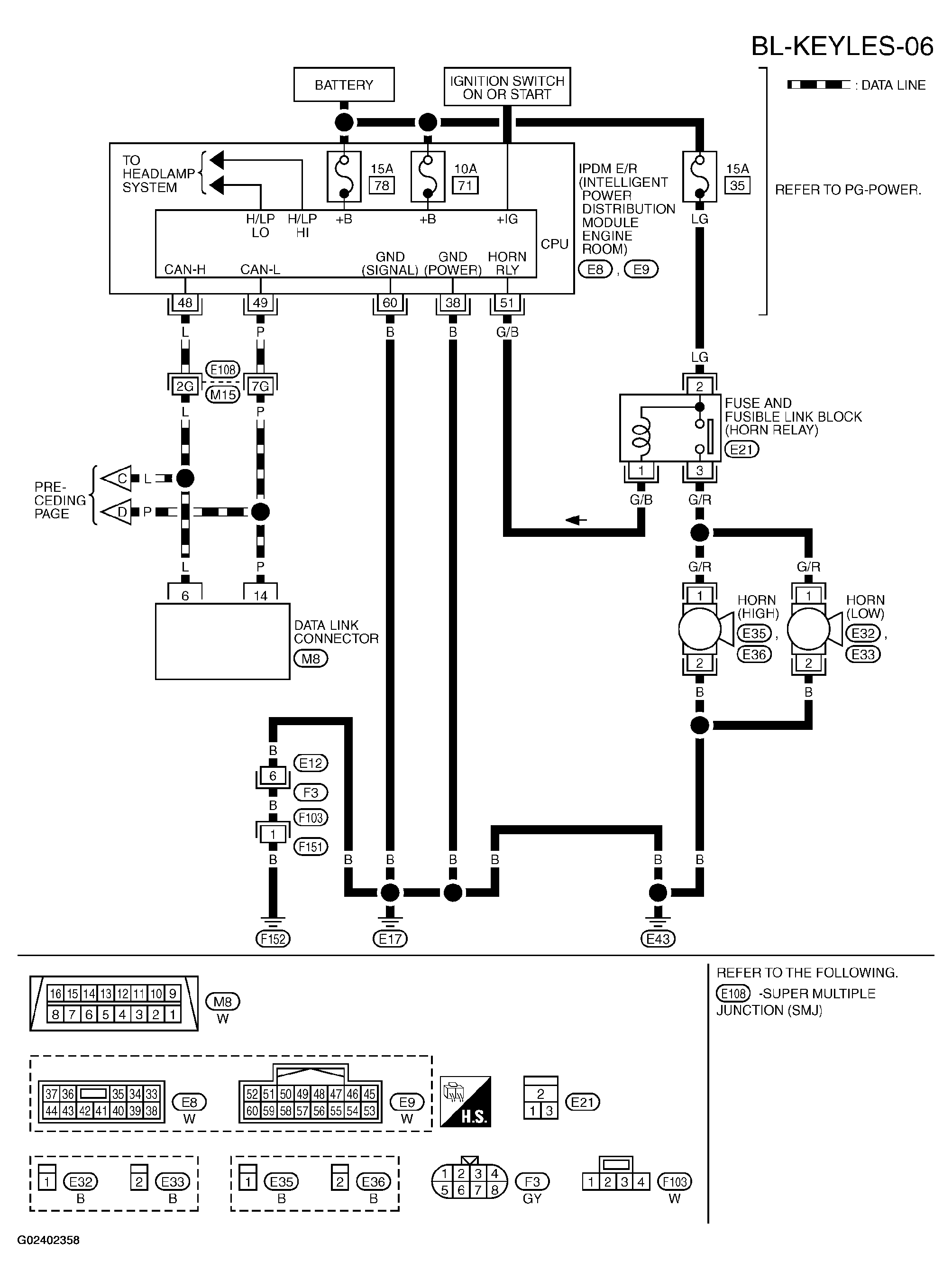

Fig 3: Wiring Diagram - KEYLESS- /For Roadster - BL-KEYLES-06
Courtesy of NISSAN MOTOR CO., U.S.A.
