Storage Lid Full Open Detection Switch Check (Open Operate)

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK STORAGE LID FULL OPEN DETECTION SWITCH SIGNAL
    1. Start engine.
    2. Operate soft top switch OPEN, check voltage between Soft Top Control Unit Connector and ground.

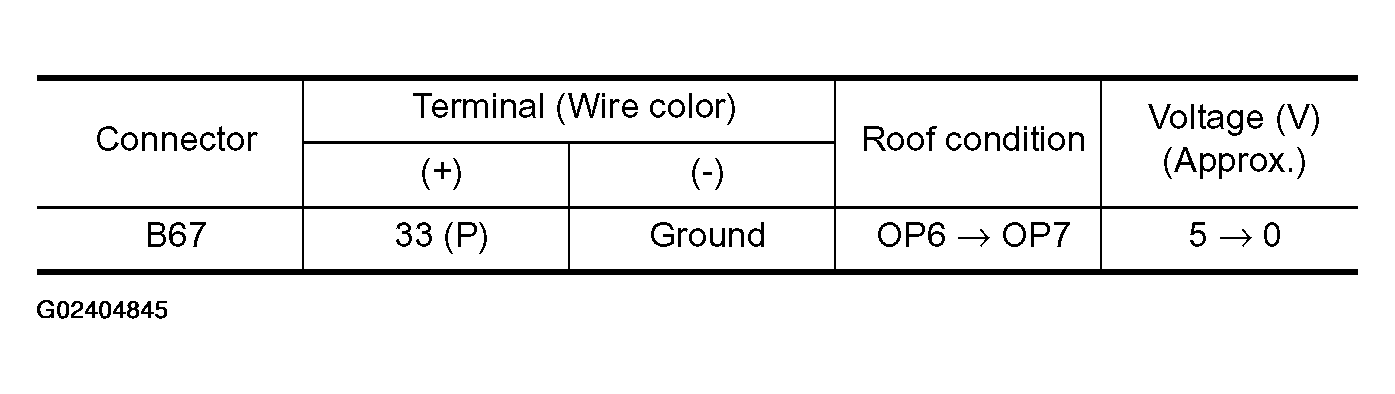

    Fig 1: Soft Top Control Unit Connector Terminal 33 & Ground Continuity Specifications Table
    G02404845Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: Storage lid full open detection switch is OK.
    • NG: GO TO 2.

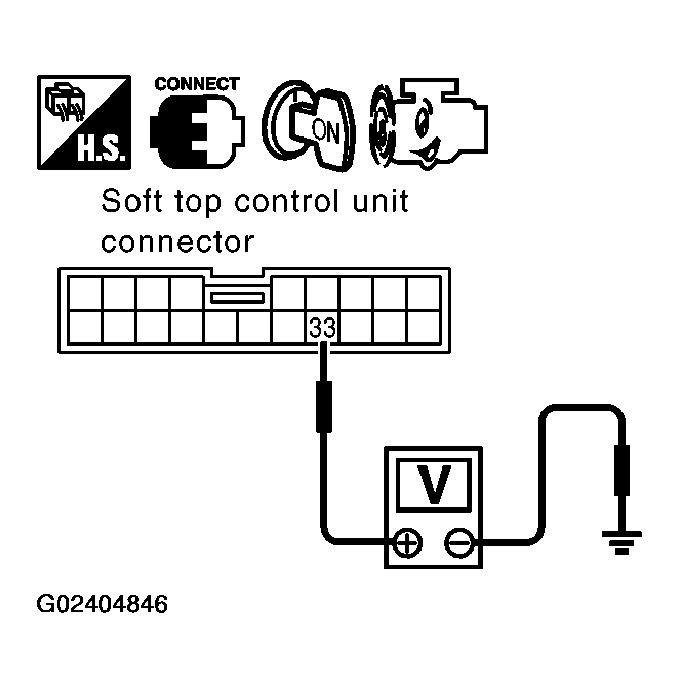

    Fig 2: Soft Top Control Unit Connector Terminal 33 & Ground Continuity Test
    G02404846Courtesy of NISSAN MOTOR CO., U.S.A.
  2. CHECK STORAGE LID FULL OPEN DETECTION SWITCH CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect soft top control unit and storage lid switch (open) connector.
    3. Check continuity between Soft Top Control Unit Connector B67 terminal 33 and storage lid switch (open) connector T27 terminal 1.
      • 33 (P) - 1 (P): Continuity should exist.
    4. Check continuity between Soft Top Control Unit Connector B67 terminal 33 and ground.
      • 33 (P) - Ground: Continuity should not exist.

    OK or NG

    • OK: GO TO 3.
    • NG: Repair or replace harness.

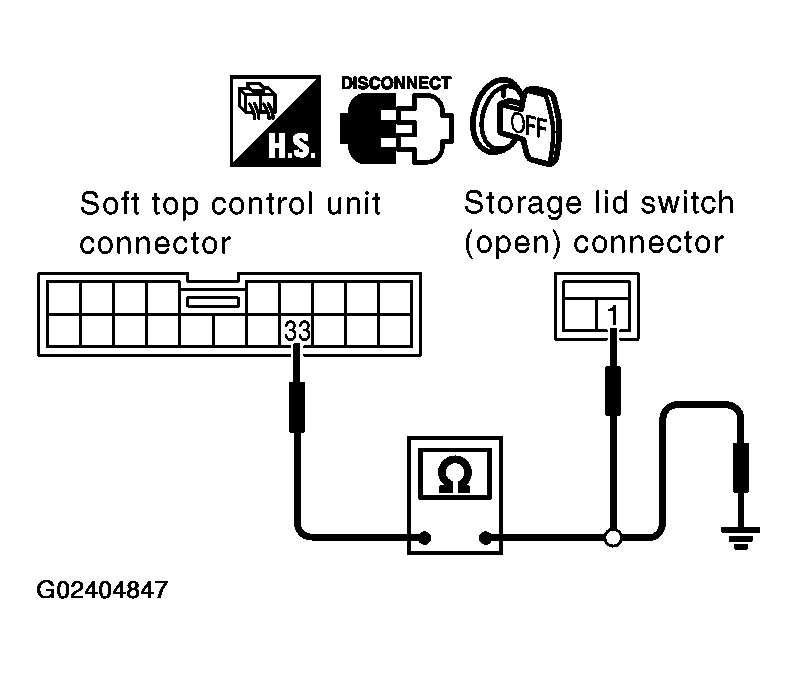

    Fig 3: Soft Top Control Unit Connector Terminal 33 & Storage Lid Switch (Open) Connector Terminal 1 & Ground Continuity Test
    G02404847Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK STORAGE LID FULL OPEN DETECTION SWITCH GROUND CIRCUIT

    Check continuity between storage lid switch (open) connector T27 terminal 2 and ground.

    • 2 (B) - Ground: Continuity should exist.

    OK or NG

    • OK: GO TO 4.
    • NG: Repair or replace harness.

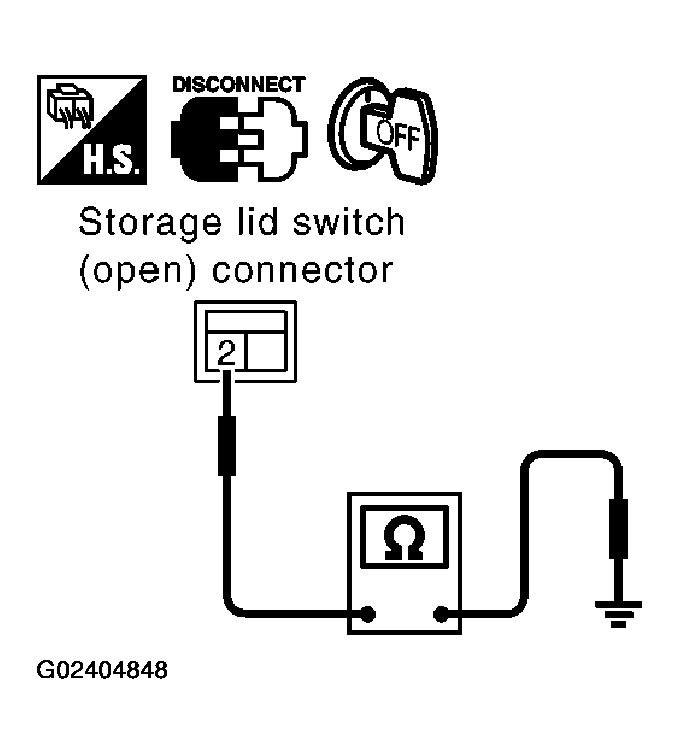

    Fig 4: Storage Lid Switch (Open) Connector T27 Terminal 2 & Ground Continuity Test
    G02404848Courtesy of NISSAN MOTOR CO., U.S.A.
  4. CHECK SOFT TOP CONTROL UNIT OUTPUT SIGNAL
    1. Connect soft top control unit connector.
    2. Start engine.
    3. Check voltage between Soft Top Control Unit Connector B67 terminal 33 and ground.
      • 33 (P) - Ground: Approx. 5V

    OK or NG

    • OK: Replace storage lid switch (open).
    • NG: Replace soft top control unit.
    Fig 5: Soft Top Control Unit Connector B67 Terminal 33 & Ground Voltage Test
    G02404849Courtesy of NISSAN MOTOR CO., U.S.A.
