Input Signal Check Mode
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
Input signal check mode allows testing of switch input signal to the sliding door control unit. To activate input signal check mode on the automatic sliding door, perform the following steps:
- Turn ignition switch OFF.
- Turn automatic door main switch OFF (system cancelled).
- Place A/T selector lever in P position.
- Confirm fuel door closed (with LH sliding door).
- Open sliding door RH or LH manually.
- Have an assistant press and hold the sliding door open/close switch RH or LH.
- While the assistant continues to hold the sliding door open/close switch RH or LH, turn ignition switch ON (DO NOT start engine).
- After approximately 5 seconds, the back door warning chime will sound for 0.5 seconds.
- Release the sliding door open/close switch RH or LH.
- Within 8 seconds of the back door warning chime sounding, press and hold the automatic door main sliding door open/close switch RH or LH.
- After approximately 5 seconds, the back door warning chime will sound for 1 second.
- Release the automatic door main sliding door open/close switch RH or LH.
- The input signal check mode is now initialized.

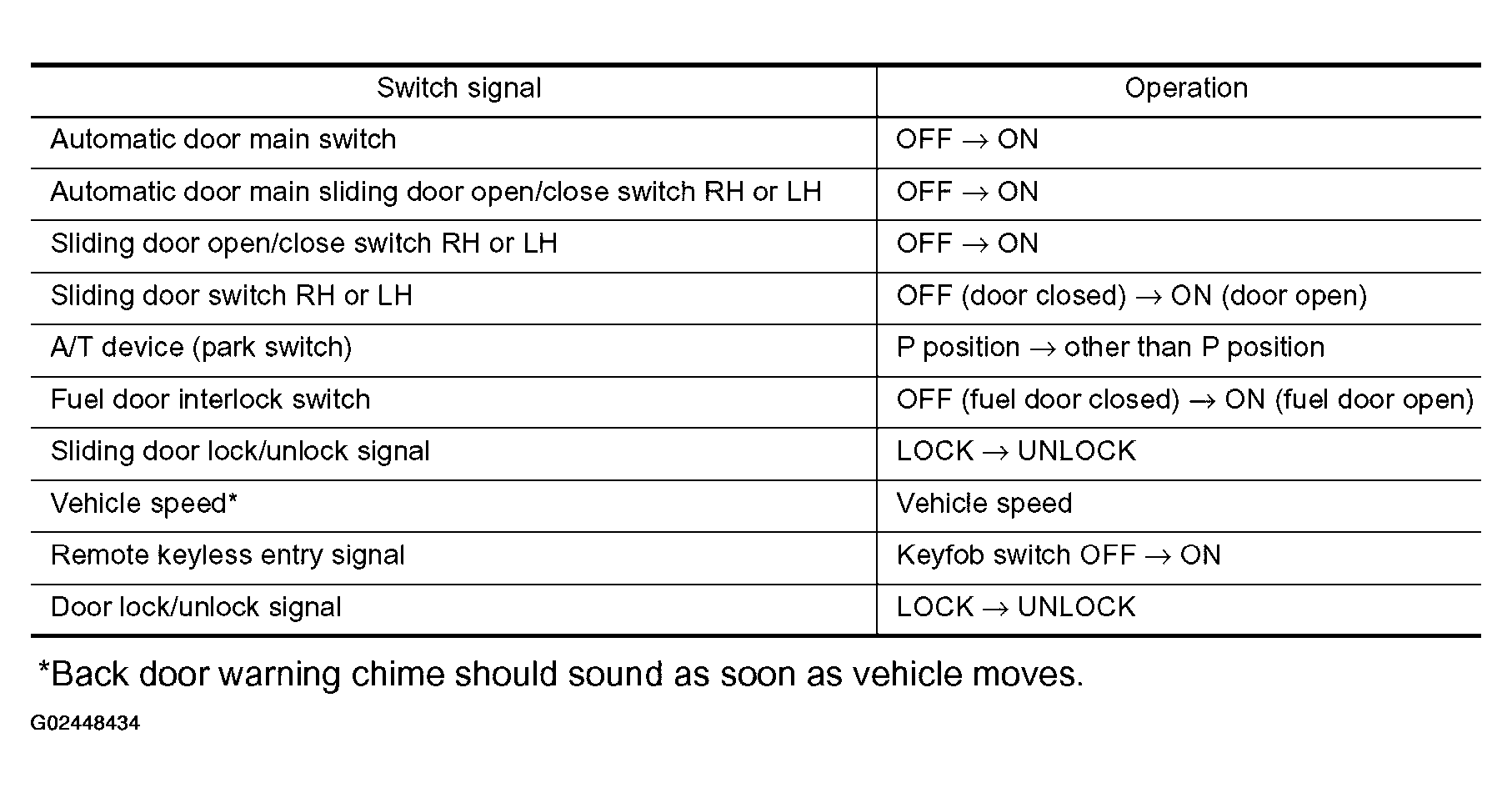

The input signal check mode can test the following inputs. The back door warning chime will sound for approximately 0.5 seconds each time a switch signal input occurs. Use this test when one of these inputs is not responding during normal automatic sliding door operation.
