Diagnostic Procedure 2

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

SECURITY INDICATOR LAMP CHECK

SECURITY INDICATOR LAMP ACTIVE TEST
With CONSULT-II

Check "THEFT IND" in "ACTIVE TEST" mode with CONSULT-II.

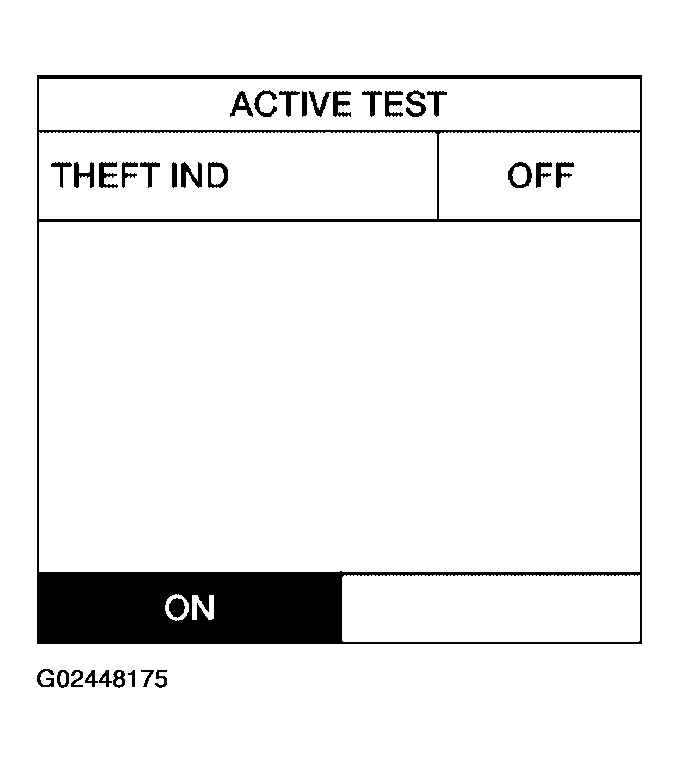

Fig 1: CONSULT-II Data Display THEFT IND And ACTIVE TEST
Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II
1. Disconnect BCM.
2. Check voltage between BCM harness connector M18 terminal 23 and ground.

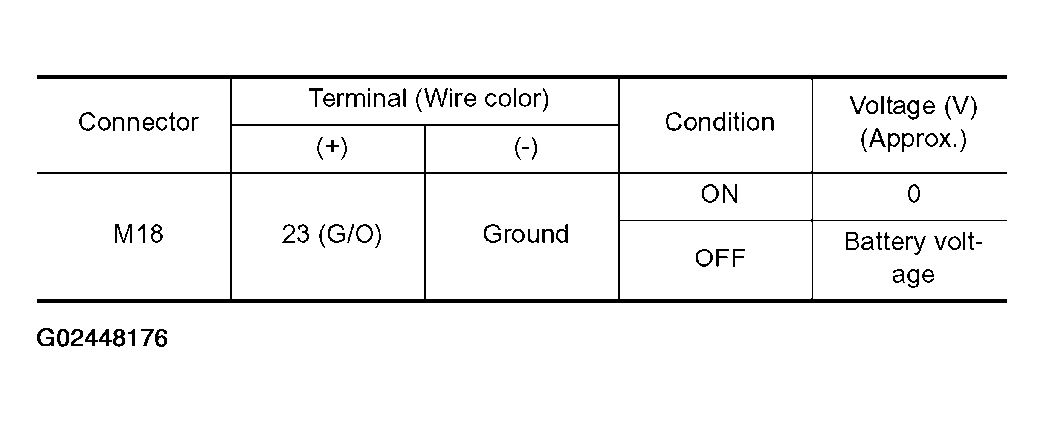

  Fig 2: Voltage Specifications
  Courtesy of NISSAN MOTOR CO., U.S.A.

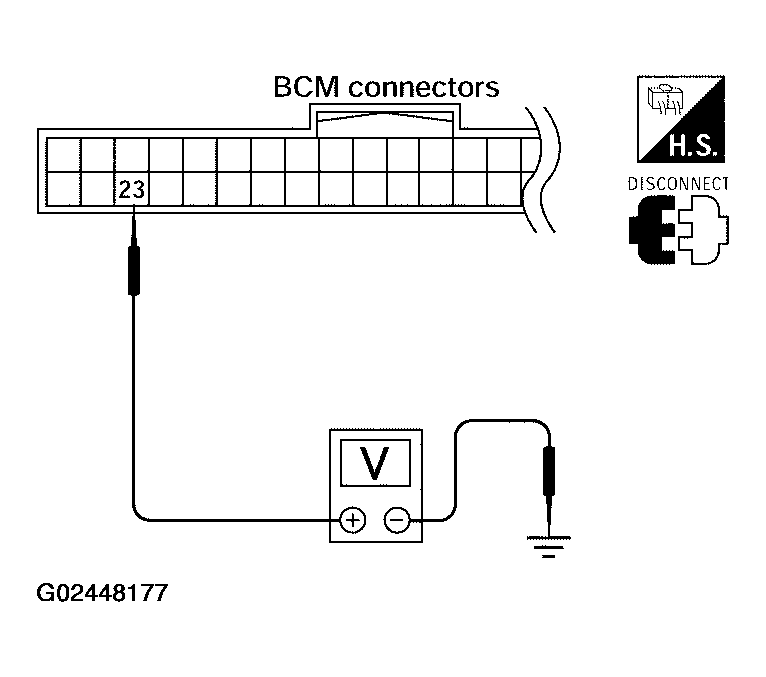

  Fig 3: Checking Voltage Between BCM Harness Connector M18 Terminal 23 & Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: Security indicator lamp is OK.
- NG: GO TO 2.
SECURITY INDICATOR LAMP CHECK
Check indicator lamp condition.

Refer to "COMBINATION METERS ".

OK or NG
- OK: GO TO 3.
- NG: Replace combination meter (security indicator lamp). Refer to "REMOVAL AND INSTALLATION OF COMBINATION METER ".
CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect BCM and security indicator lamp connector.
3. Check continuity between BCM connector M18 terminal 23 and combination meter (security indicator lamp) connector M24 terminal 9.

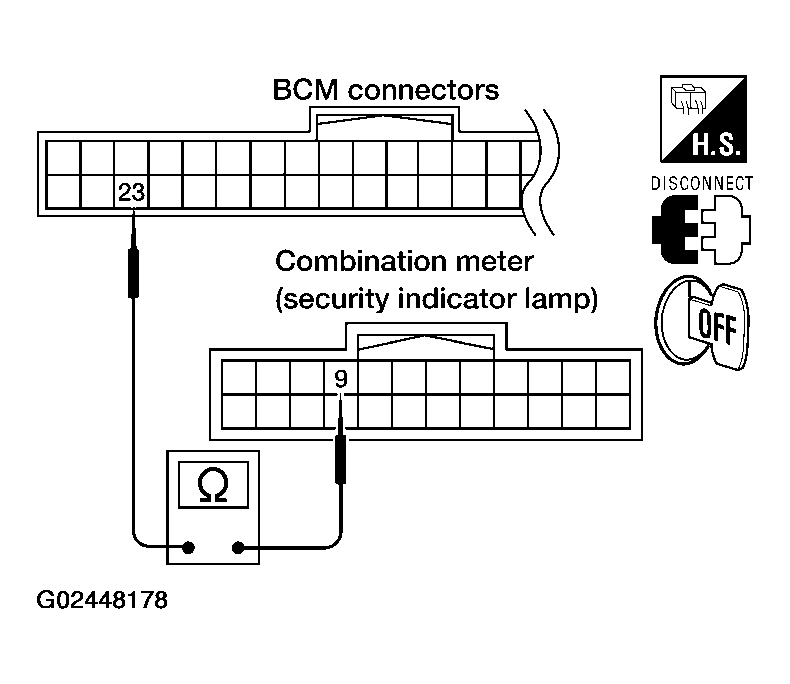

  Fig 4: Checking Continuity Between BCM Connector M18 Terminal 23 And Combination Meter Connector M24 Terminal 9
  Courtesy of NISSAN MOTOR CO., U.S.A.
  - 23 (G/O) - 9 (G/O): Continuity should exist.
OK or NG
- OK: Check the following.
  - 10A fuse [No. 19, located in fuse block (J/B)]
  - Harness for open or short between security indicator lamp and fuse
- NG: Repair or replace harness.
