TCM Inspection Table

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Data are reference value and are measured between each terminal and ground.

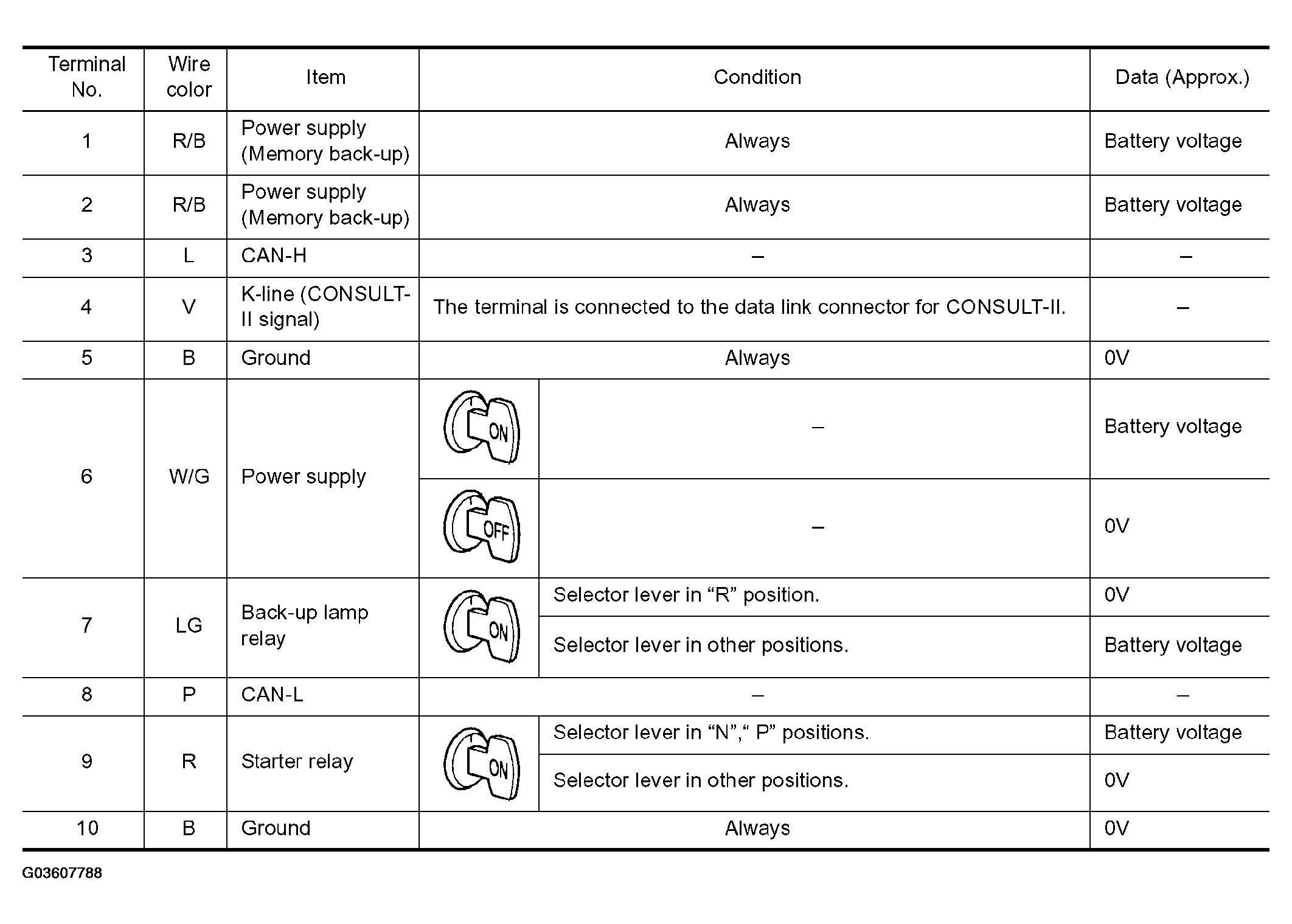

Fig 1: TCM Inspection Table

Courtesy of NISSAN MOTOR CO., U.S.A.
