Preliminary Check

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

CHECK BCM CONFIGURATION
Confirm BCM Configuration for "THEFT ALARM" is set to "WITH". Refer to "READ CONFIGURATION PROCEDURE ".

OK or NG
- OK : GO TO 2.
- NG : Change BCM Configuration for "THEFT ALARM" to "WITH". Refer to "WRITE CONFIGURATION PROCEDURE ".
CHECK SYSTEM OPERATION
The system operation is canceled by turning ignition switch to ACC at any step between START and ARMED in the following flow chart.

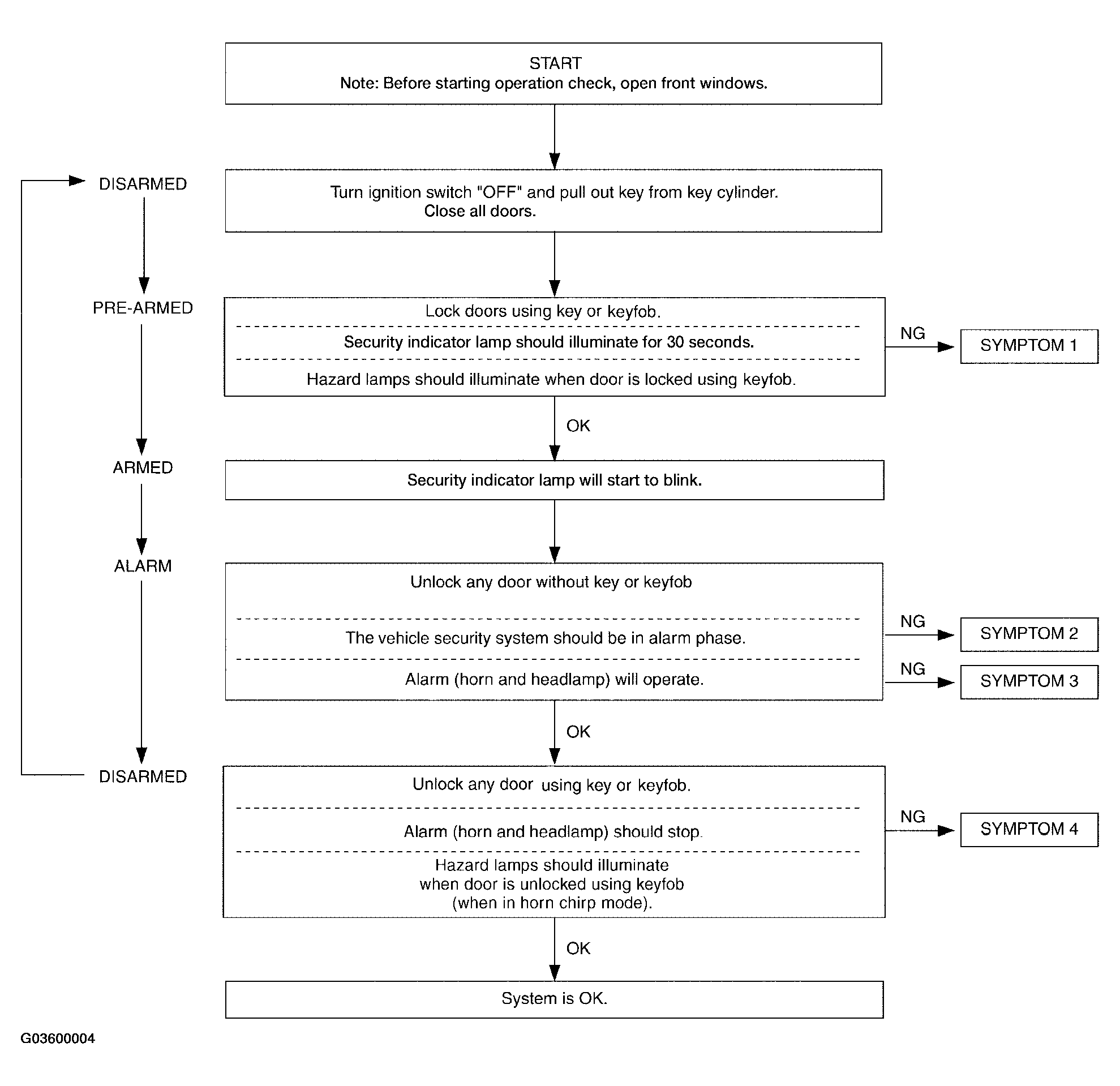

Fig 1: System Operation Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
- : After performing preliminary check, go to symptom chart. Refer to "SYMPTOM CHART ".
