Service Replacement Passenger Air Bag Module

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

Install the front passenger air bag module to the instrument panel pad assembly.

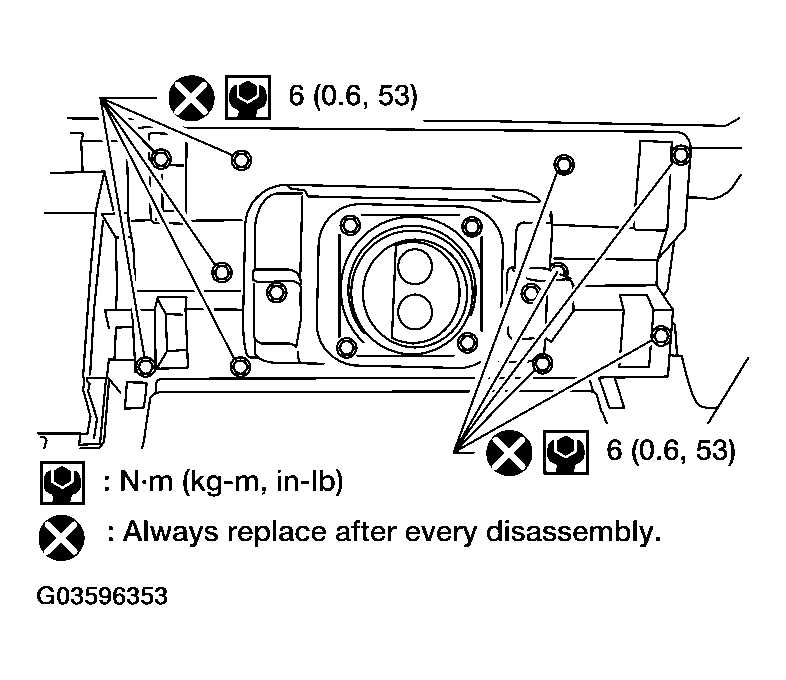

Fig 1: Front Passenger Air Bag Module, Bolts With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the instrument panel assembly. Refer to "INSTRUMENT PANEL ASSEMBLY ".
Connect the front passenger air bag module harness connector to yellow 4-pin service replacement air bag connector and fasten connector to mounting bracket.

CAUTION:

Always work from the side of or under front passenger air bag module.
After the work is completed, perform self-diagnosis to check that no malfunction is detected. Refer to "SRS OPERATION CHECK ".
