Color of RGB Image is Not Proper (All Screens Look Yellowish)

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK RGB HARNESS

Turn ignition switch OFF.
Disconnect display control unit connector M95 and display unit connector M93.
Check continuity between display control unit and display unit.

Check continuity between display control unit and ground.

When the screen looks yellowish.

DISPLAY CONTROL UNIT AND DISPLAY UNIT (ALL SCREENS LOOK YELLOWISH)

Terminals				Continuity
B		A
Connector	Terminal	Connector	Terminal
Display control unit: M95	54	Display unit: M93	18	Yes
Display control unit: M95	47	Display unit: M93	7	Yes

DISPLAY CONTROL UNIT AND GROUND (ALL SCREENS LOOK YELLOWISH)

Terminals			Continuity
Display control unit		-
Connector	Terminal	-
Display control unit: M95	54	Ground	No
Display control unit: M95	47	Ground	No

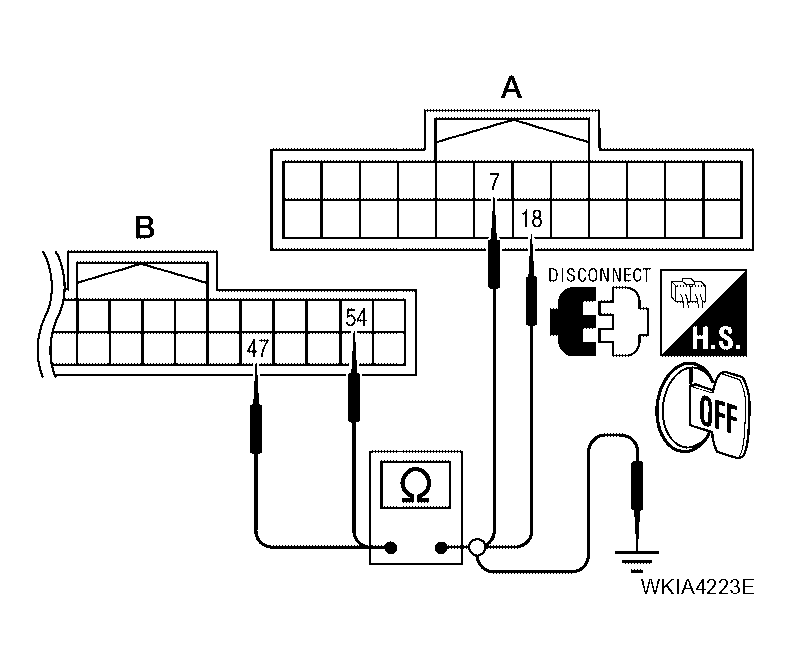

Fig 1: Checking RGB Harness (All Screens Look Yellowish)

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 2.

NG: Repair harness or connector.

CHECK RGB SIGNAL
1. Connect display control unit connector and display unit connector.
2. Turn ignition switch ON.
3. Display "Color bar" by "CONFIRMATION/ADJUSTMENT" mode.
4. Check the following with CONSULT-ll or oscilloscope.
  - When the screen looks yellowish.
    Voltage signal between display control unit connector M95 terminal 54 and 47.

    54 - 47: Refer to , " TERMINALS AND REFERENCE VALUE FOR DISPLAY CONTROL UNIT ".

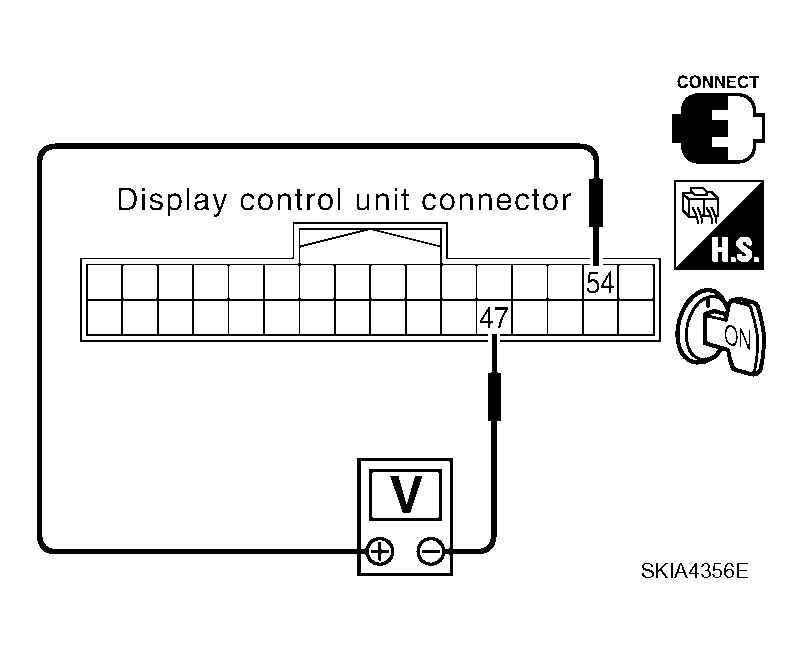

  Fig 2: Checking RGB Signal
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG

OK: Replace display unit. Refer to , "DISPLAY UNIT ".

NG: Replace display control unit. Refer to , "DISPLAY CONTROL UNIT ".
