Removal And Installation: Removal

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove combination meter. Refer to , "COMBINATION METER ".
  2. Disconnect combination meter ribbon cable.
  3. Remove the two display unit screws.
  4. Rotate bracket to remove it.
  5. Remove display unit.

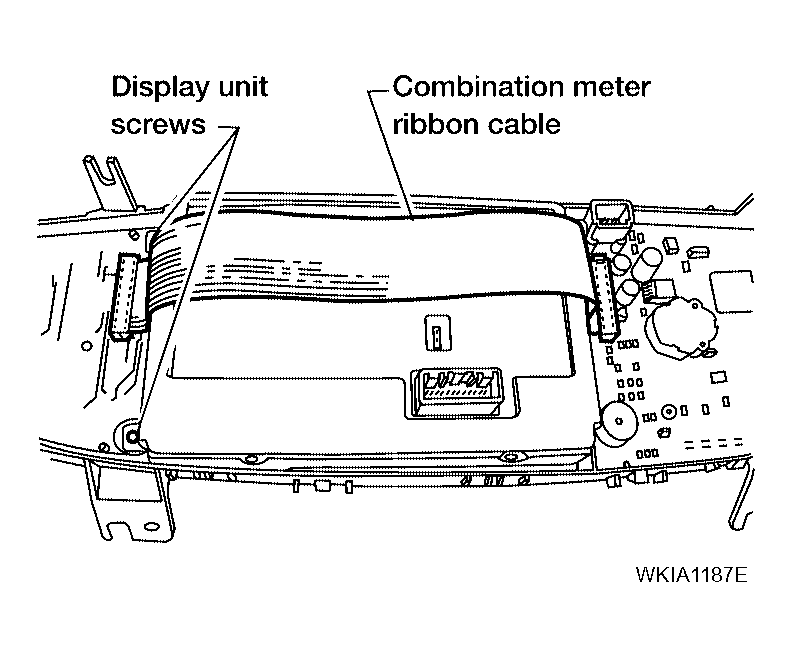

    Fig 1: Identifying Display Unit Screws
    G04201685Courtesy of NISSAN MOTOR CO., U.S.A.
