Ignition Signal Check (With Monochrome Display Unit)

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK IGNITION SIGNAL
1. Disconnect the display unit connector.
2. Turn ignition switch ON.
3. Check voltage between display unit harness connector M93 terminal 3 and ground.
  Battery voltage should exist.

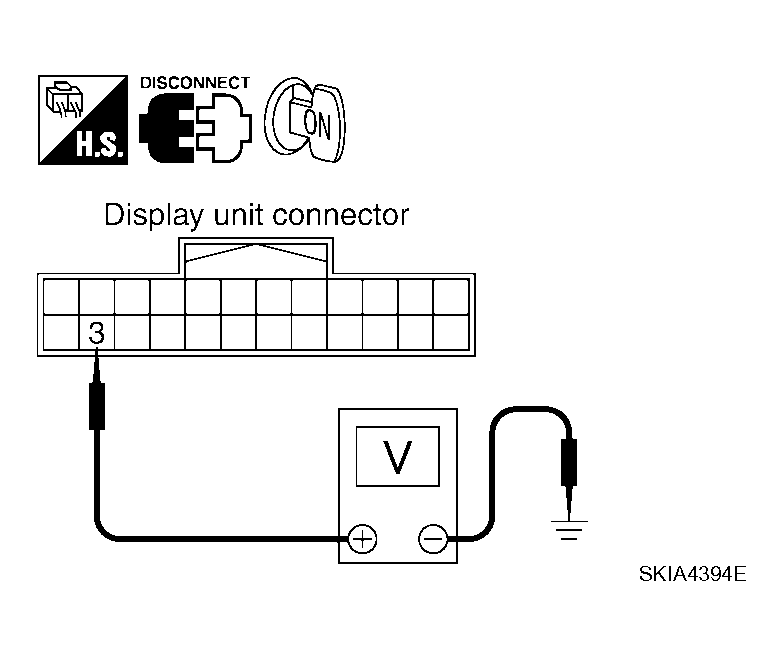

Fig 1: Checking Ignition Signal
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: Replace display unit. Refer to , "DISPLAY UNIT ".

NG: Check harness for open or short between display unit and fuse.
