A/T Fluid Temperature Sensor 2

WARNING: This page is about a different car, the 2006 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Remove A/T fluid temperature sensor 2. Refer to "A/T FLUID TEMPERATURE SENSOR 2 REMOVAL AND INSTALLATION ".

Check resistance between terminals.

CONNECTOR TERMINAL RESISTANCE REFERENCE

Name	Connector	Terminal	Temperature °C (°F)	Resistance (Approx.)
A/T fluid temperature sensor 2	F507	1-2	0(32)	10kΩ
			20 (68)	4kΩ
			80(176)	0.5 kΩ.

If NG, replace the A/T fluid temperature sensor 2. Refer to A/T 241, "A/T FLUID TEMPERATURE SENSOR 2 REMOVAL AND INSTALLATION".

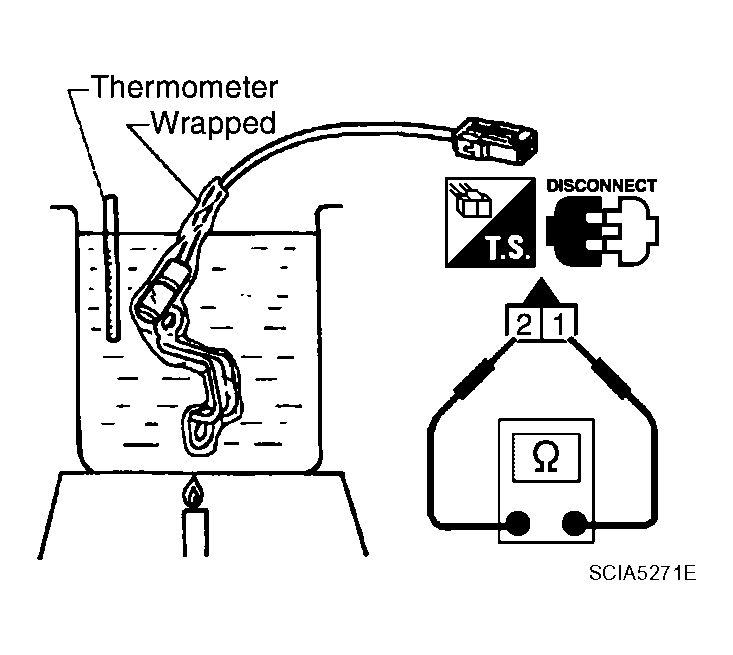

Fig 1: Checking Resistance Between A/T Fluid Temperature Sensor 2 Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.
